B6

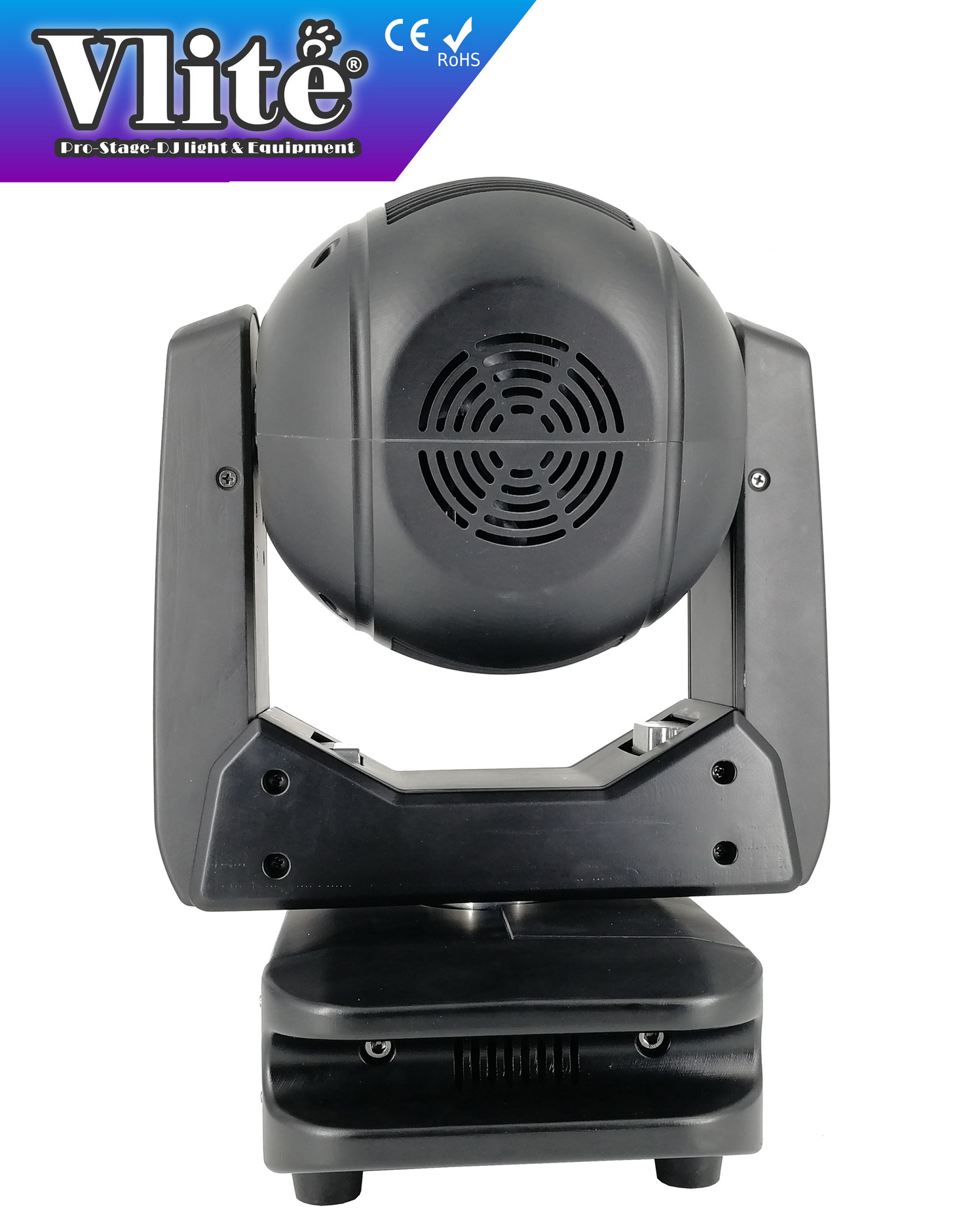

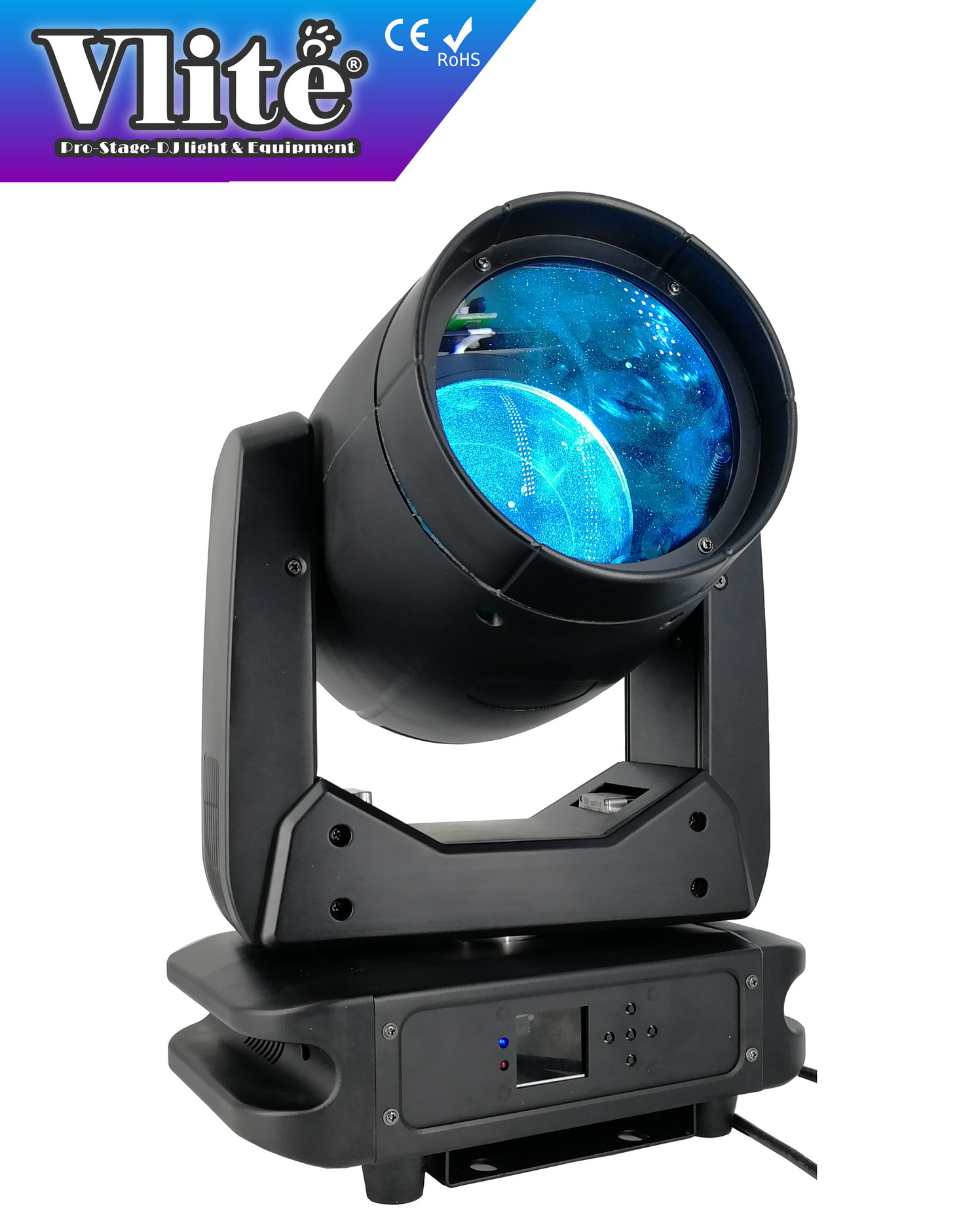

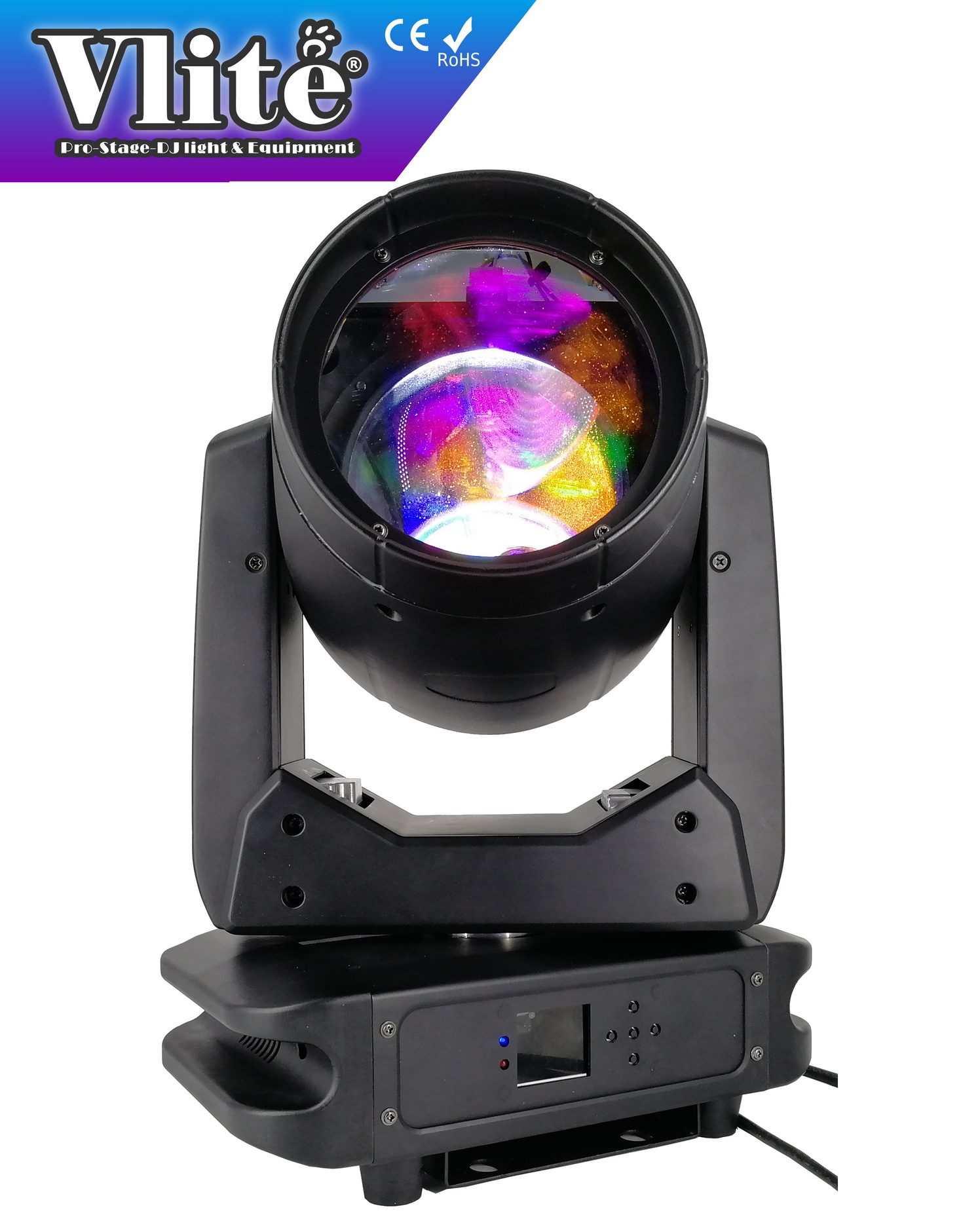

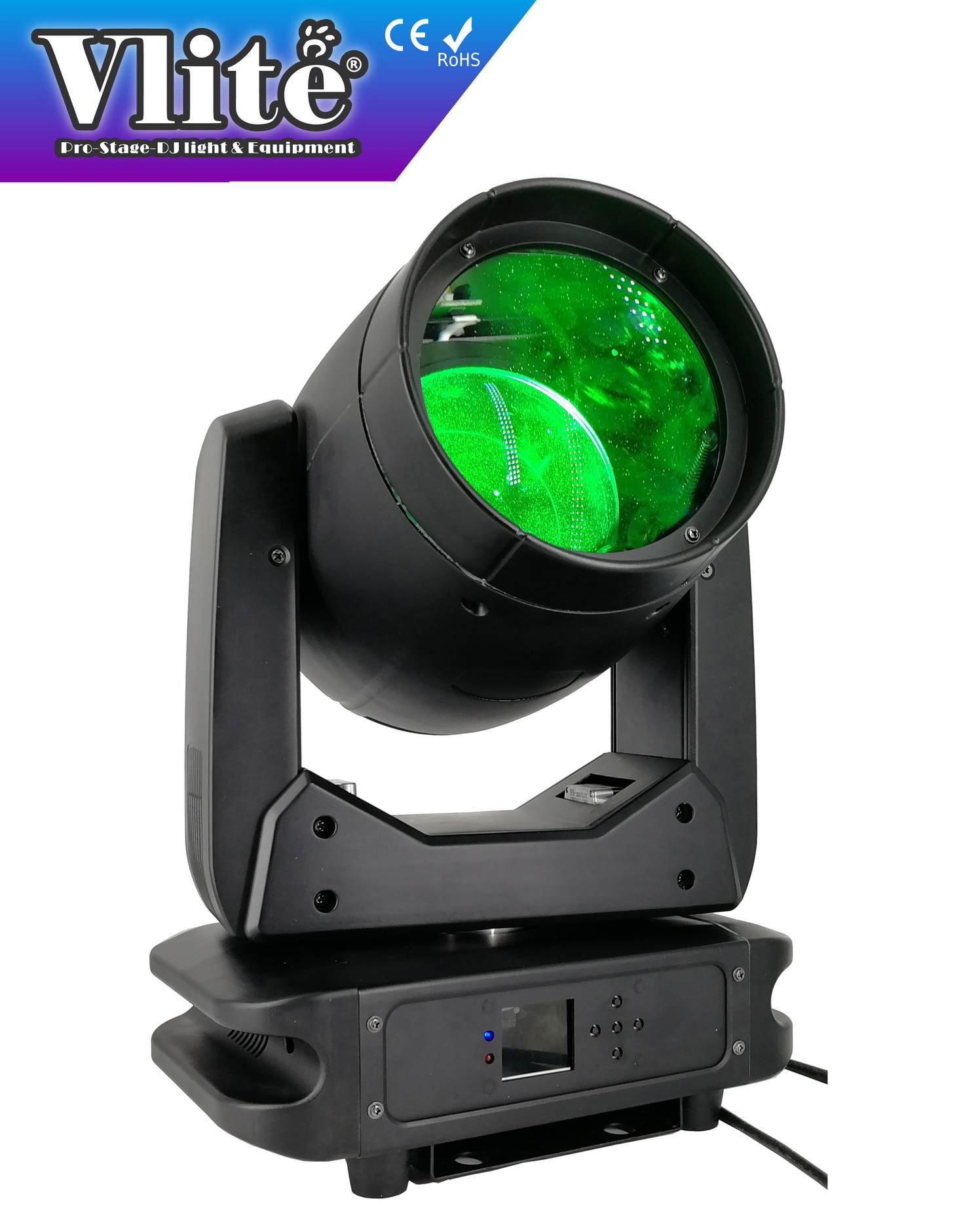

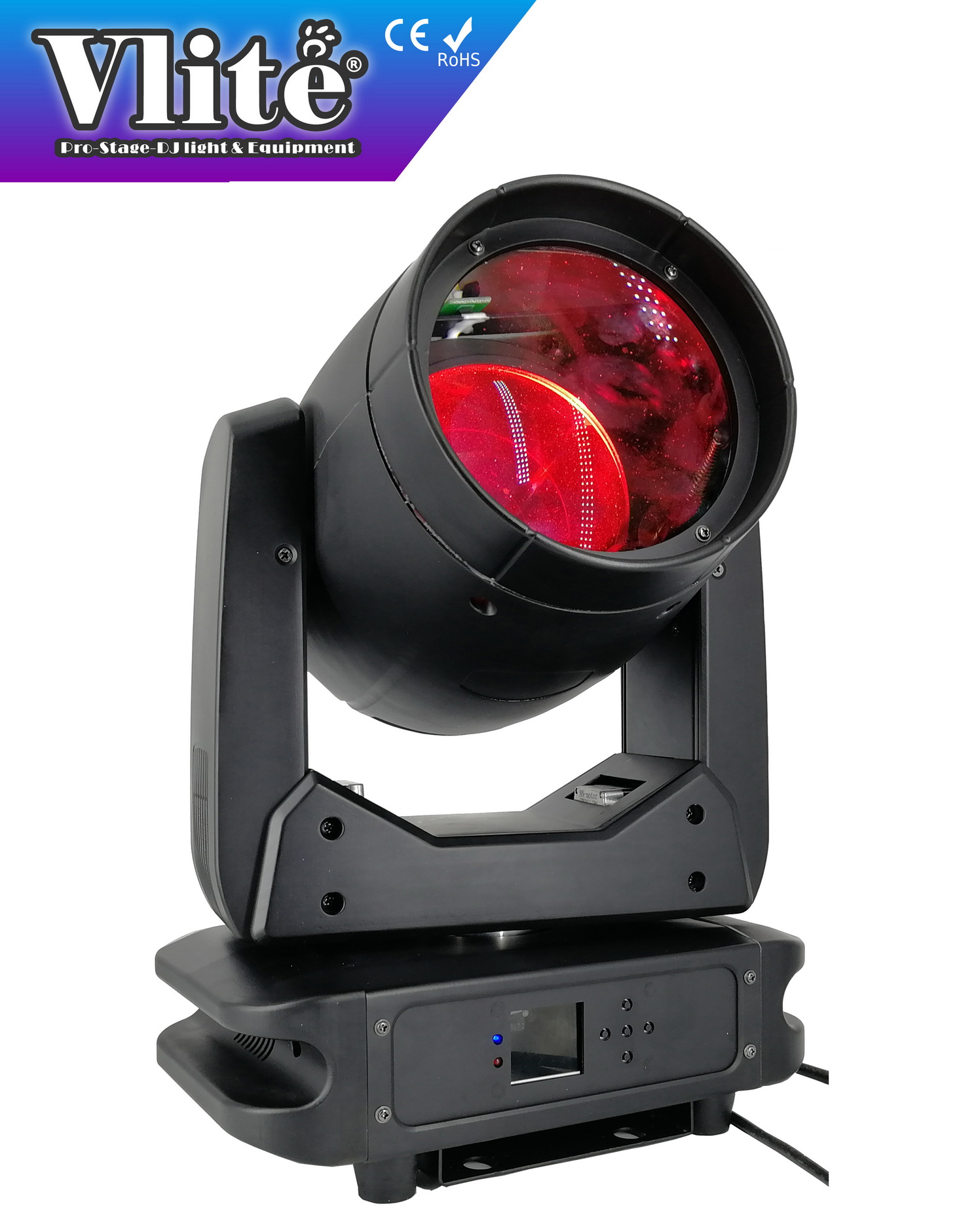

LED 100W BEAM MOVING HEAD

Parameter Introduction

 Voltage and Power Consumption

* Voltage: AC100-240V, 50-60HZ

* Light Source: 1PC X 100W white LED

* Power Consumption: 120W

Features

* Beam Angel: 2°

* High light output, 53,000LUX@5M at White light

* Pan/Tilt: X axis 540°, Y axis: 270°16 Bit resolution

* 1 Color Wheel: 13+blank, rainbow effect, half color effect

* 1 Static Gobo wheel: 13 + blank, gobo shaking and flow effect

* Prism: one 8-facet Prism and 16-facet prism, bi-directionally and rainbow prism effect

* Strobe: Pulse and random strobe

* Dimmer: 0-100% linear dimmer

* Motorize Focus

* Macro PAN/TILT

* Efficient low noise fan cooling system

* Powercon IN/OUT

* 3-pin XLR connectors IN/OUT

Control Mode

* Control Mode: DMX-512, Master/Slaver, Sound-activated, Auto mode

* DMX-512 Mode: 16/20CH

* Colorful LCD display

Structure

* Protection Level: IP20

Dimension & Size

* Net Weight: 12.0 KG

* Gross Weight: 16.0 KG

* Product Size: 30.5cm(L) X 29.1cm(W) X 46.0cm(H)
