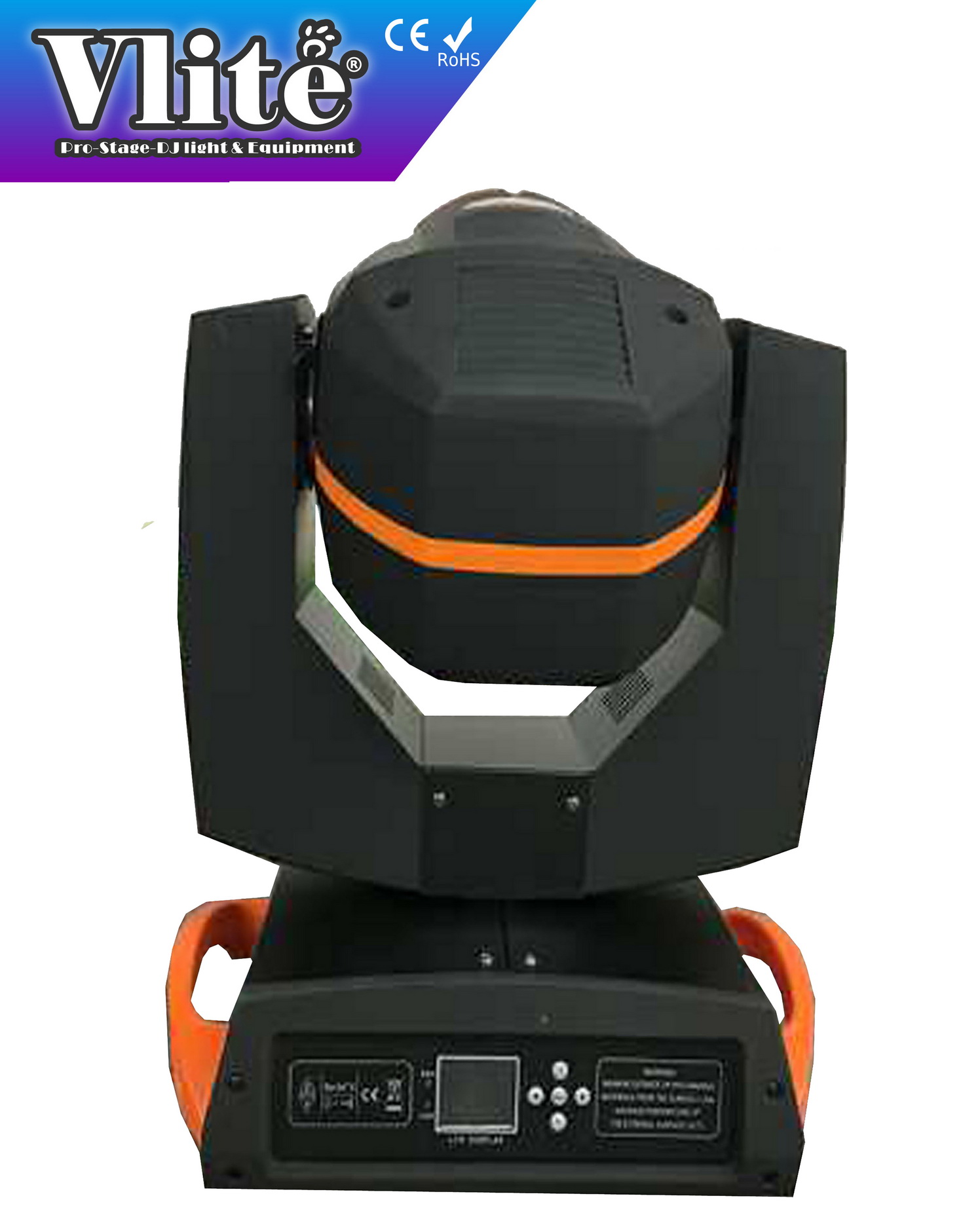

MB-230BSW 7R

Beam/Spot/Wash 3-in-1 230W Moving Head



Parameter Introduction



Voltage and Power Consumption


* Voltage: AC110-240V, 50HZ

* Ballast: Electronic Ballast

* Light Source: OROSSM 5R (200W bulb)

* Color Temperature: 8500K Average life: 2000hrs



Features


* Color: 14 colors + blank

* Fixed Gobo: 17 gobos + blank

* Rotating Gobo: 7 + blank in both direction rotation

* Prism 1: 8-facet prism rotation prism in both directions, it can overlap each other more
               abundantly.

* Prism 2: 6-facet prisms + 12-facet prisms rotation prism in both directions, it can overlap
                each other more effectively and the pattern is larger.

* Fixed magnification: enlarged to make the Gobo larger and cover a wider area.

* Lens; Optical combination lens

* Soft light effect: the angle of the spot that can adjust the soft light

* Focusing: Linear Focusing

* Dimming: 0-100% linear adjustment dimming

* Projection Light Range: Pan 540 degrees, Tilt 280 degrees, automatic correction of
                                      positioning

* Beam angle: Parallel beam angle: 0 – 5°

* Strobe: two-chip strobe (1-12 times / sec)

* Number of motors: 13 silent motors, 16Bit





Control Mode


* Control Mode: International standard DMX512

* DMX-512 Channel: 16CH

* Other Functions: remote control of the light bulb switch function



Structure


* Appearance: high temperature resistant plastic

* Protection Level: IP20



Dimension & Size


* Net Weight: 16.00 KG

* Gross Weight: 18.00 KG

* Product Size: 33cm(L) X 39cm(W) X 48.5cm(H)

* Packing Size: 44cm(L) X 41cm(W) x 54cm(H)
