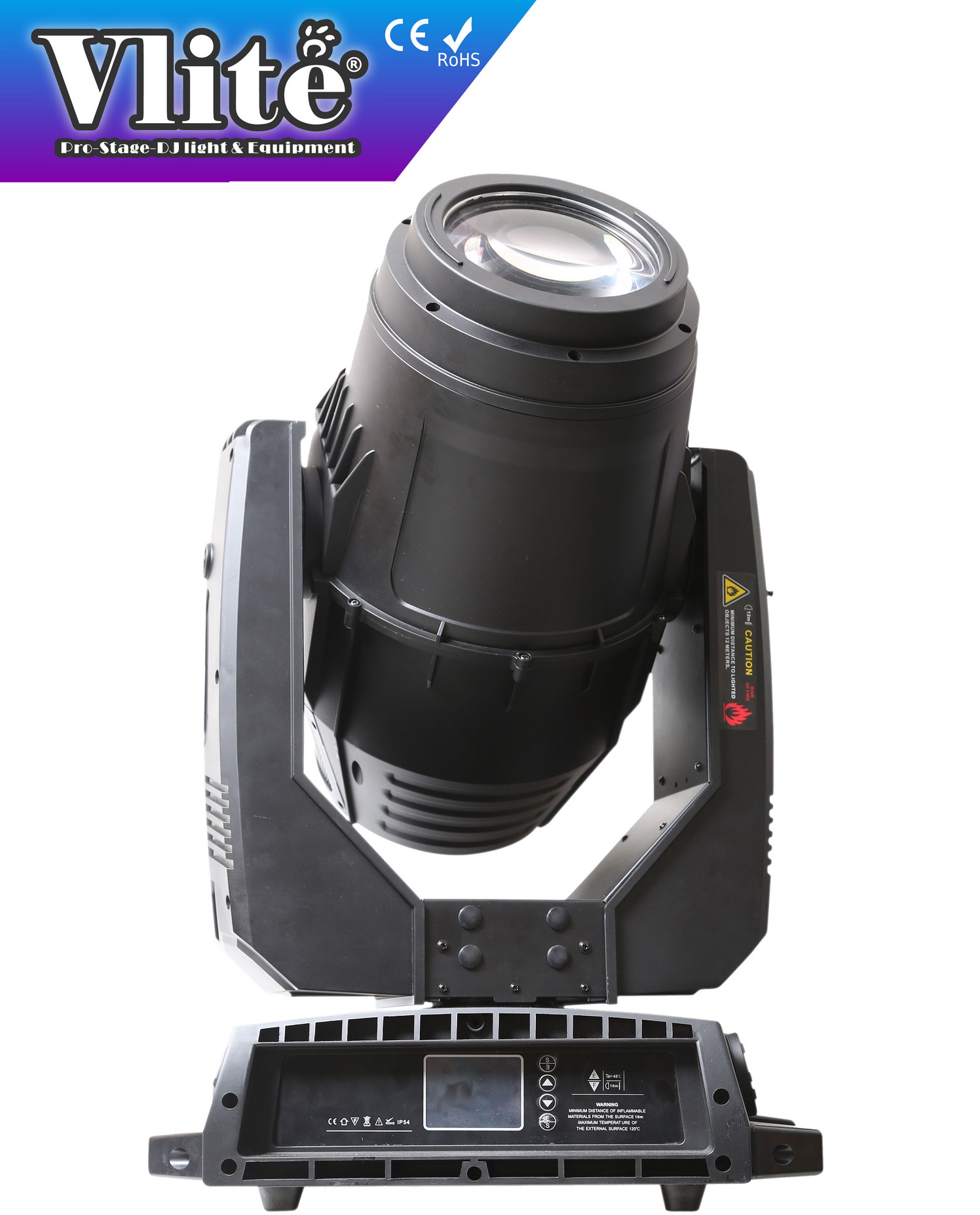

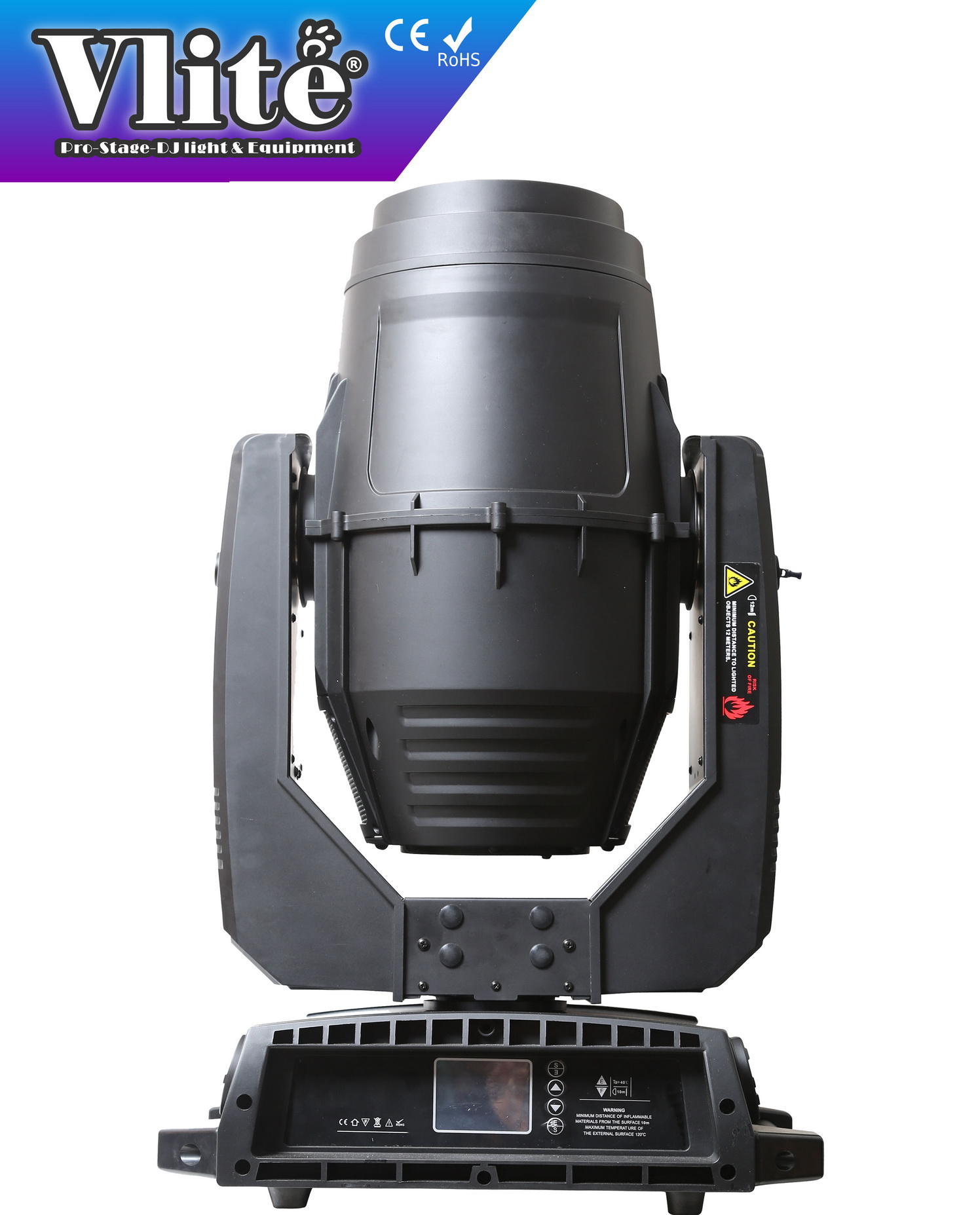

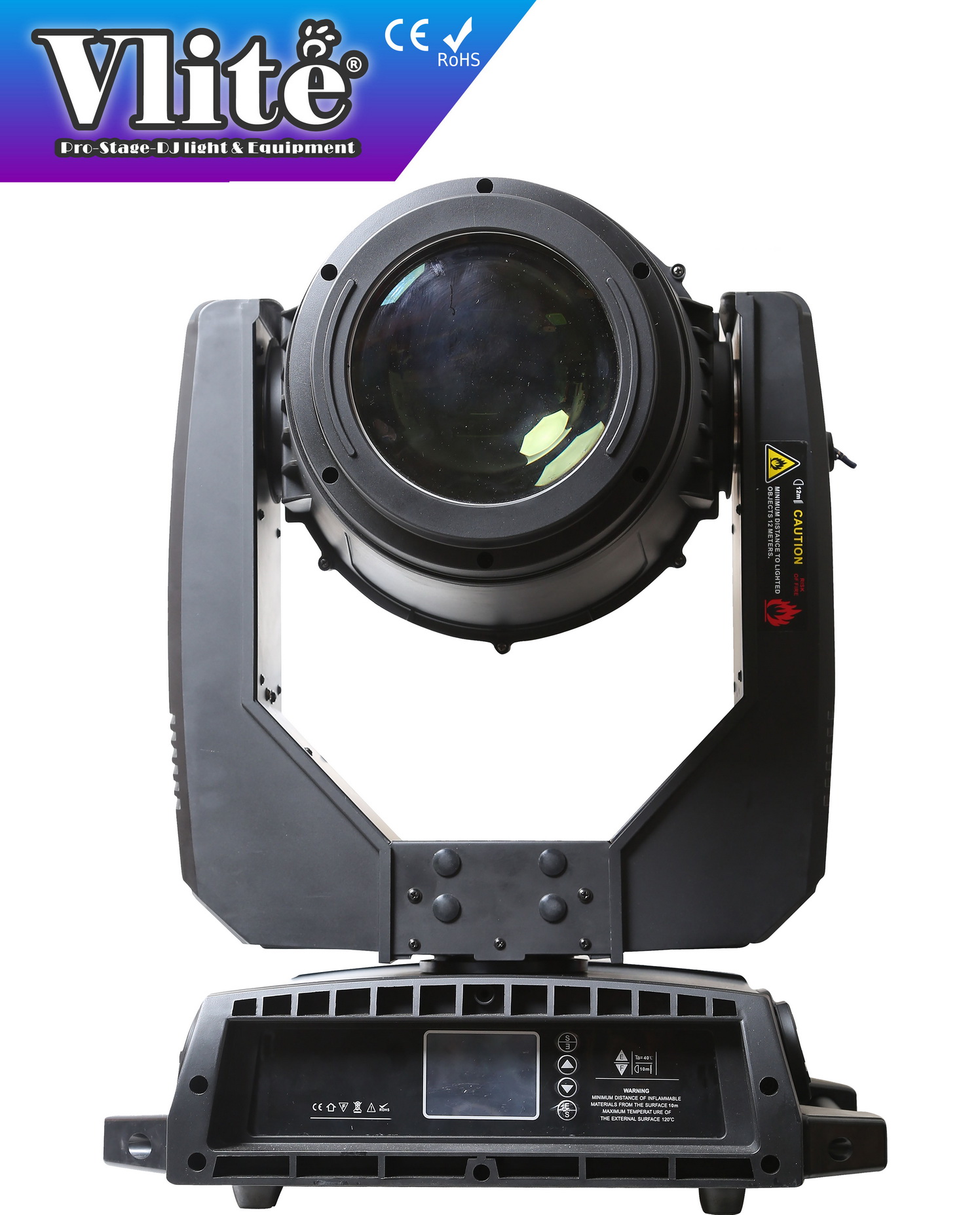

XP-MB440BSW-CMY - Waterproof Moving Head 440W 3-IN-1 Beam/Spot/ CMY Wash
Waterproof Moving Head 440W 3-IN-1 Beam/Spot/ CMY Wash
A professional 3-in-1 Beam Spot CMY Wash waterproof moving head good use for commercial performance. The waterproof grade IP55 is its outstanding highlight, no waterproof cover is needed for outdoor use. The patented dimming technology for short-arc lamp effectively solves the problem of uneven spots in the dimming process of these lamps; 170mm diameter light exit lens, full and thick beam; when used As a Spot fixture, 2.4°~33° zoom, the GOBO are clear and sharp; When used as a beam fixture, the beam angle is 2.2°~7°, close to parallel light, suitable for long-distance projection; When cutting into the frost film, it moves through the lens and zooms at 6°~43°. It is also a compact Wash Fixture. Equipped with CMY endless color mixing, CTO linear color temperature adjustment, one rotating gobo wheel, one fixed gobo wheel, one dynamic wheel, 8+24 facet prism, independent strobe, independent dimming, independent frost.
Parameter Introduction
Voltage and Power Consumption
* Voltage: 100-240V,50/60Hz
* Light Source: YODN MSD 440 R20/OSRAM SIRIUS HRI461W
* Power consumption: 700W
Features
* Color Temperature: 6700K
* Color Wheel:
1. Use quartz material CMY color film group, which can mix infinite colors, the colors are more intense, full and even
2. 11 special color filters on one wheel, positive and negative rotation with rainbow effect
* Gobo Wheel:
1. Fixed Gobo wheel: 15+1, bi-direction gobo shaking and flow effect
2. Replaceable Gobo wheel: 7+1, gobo shaking and flow effect, the gobo can be positioned arbitrarily
3. Gobo outer diameter:23mm, effective diameter of gobo:15mm
* Dimming: 0-100% linear dimming
* Strobe: Multi-speed strobe effect selection, fast, pulse, random, synchronous, asynchronous
* Frost: Independent linear frost, Soft frost, linear zoom and linear cooling film can be superimposed

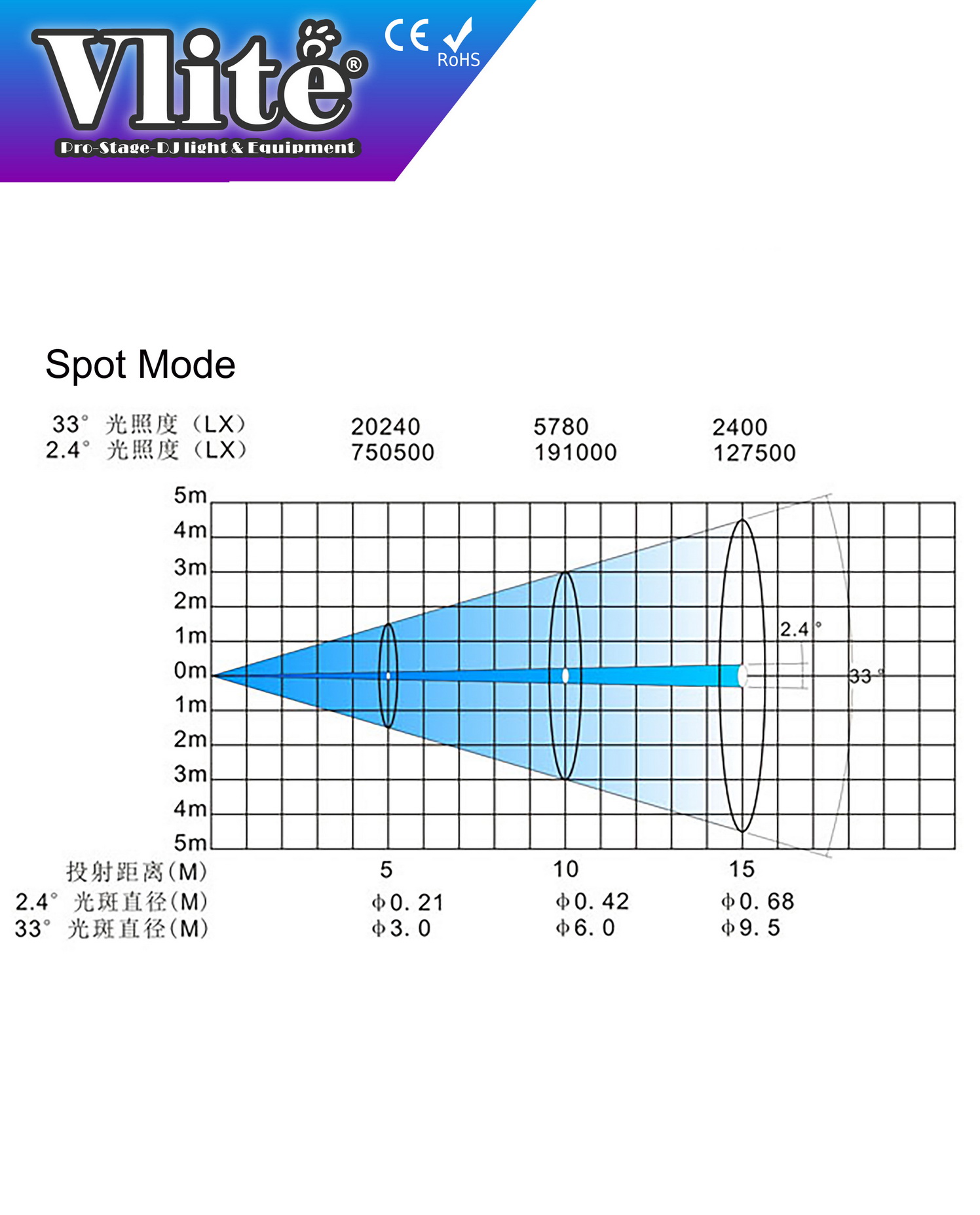

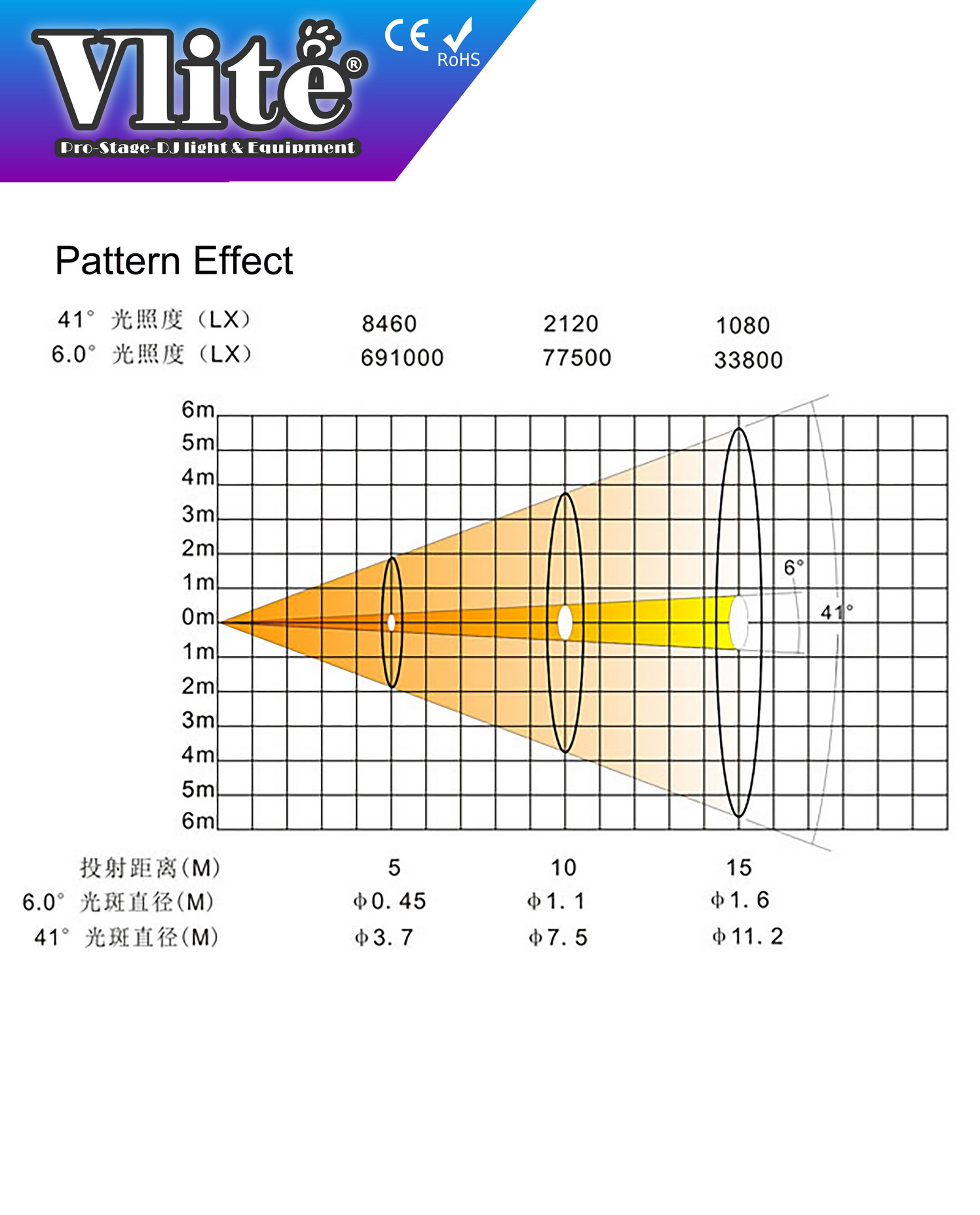

* Zoom Angel: 2.2°~7° for Beam mode; 2.4°~33° for Spot mode; 6°~43° for Frost mode
* Pan / Tilt Resolution:
1. Pan (Horizontal) 540°, resolution 8Bit/16Bit, minimum step distance is 0.008/step; the fastest
movement is 540° for 3 seconds
2. Tilt (Vertical) 270°, resolution 8Bit/16Bit, minimum step distance is 0.008/step; the fastest movement is
270° for 1.6 seconds 270°
3. Adjustable Pan/Tilt speed
4. Magnetic induction positioning, positioning is more accurate. Initial position correction is more
convenient and maintenance is more convenient
* Effect Wheel:
1. Two rotatable prisms, one 8-facet prism and one 24-facet prism, can be rotated in both directions
2. 1 colorful prism plate with 7-color rainbow prism effect
3. An effect wheel can simulate the effect of dynamic blur
Control Mode
* Control Mode: DMX-512, Master/Slaver, Auto mode
* DMX-512 Channel: 30 channels
* Display: 22.8” color display, can be reversed 180° display, Chinese and English can be switched at will,
touch screen, button operation mode
Structure
* Protection Level: IP55
Dimension & Size
* Net Weight: 30.0 KG

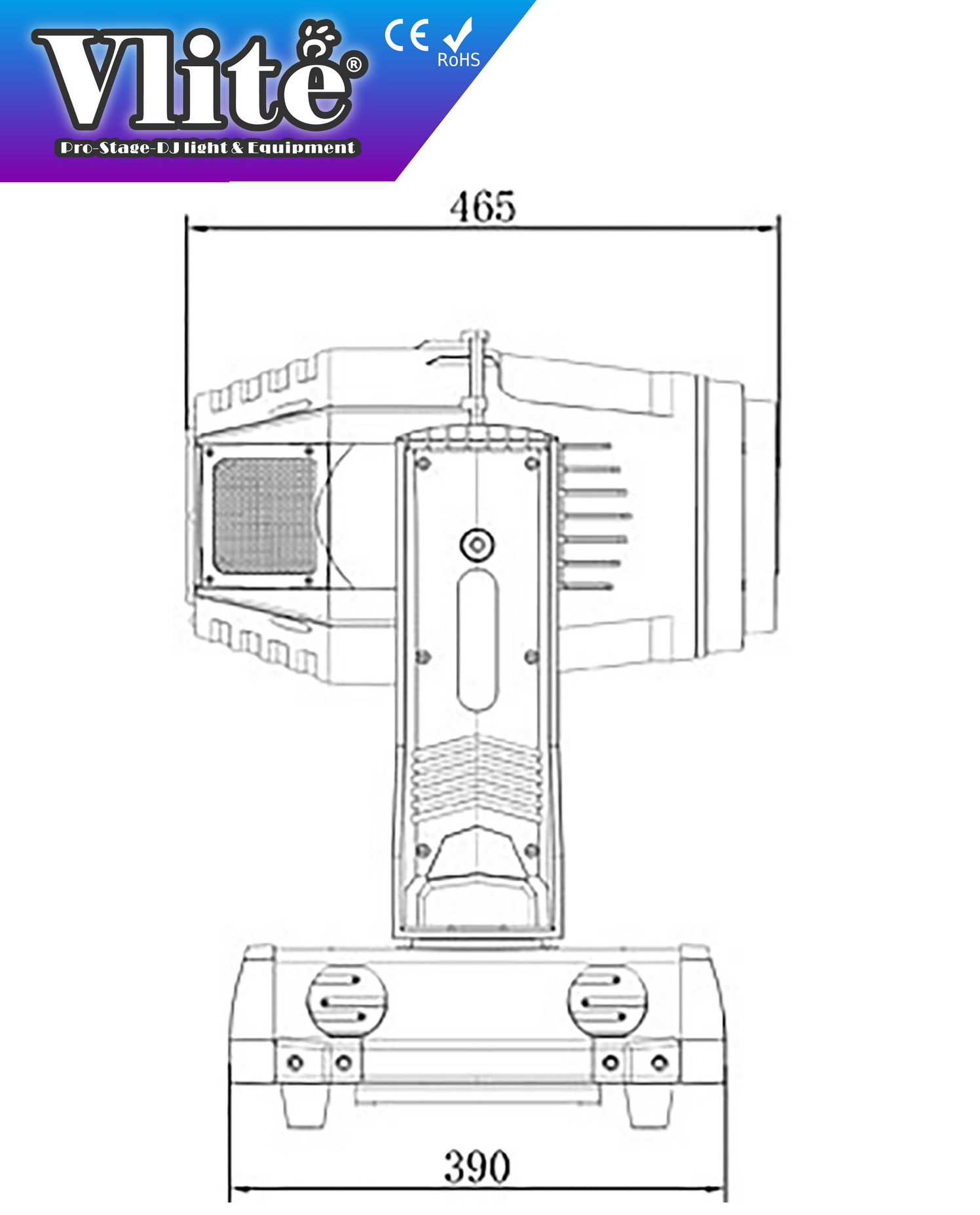

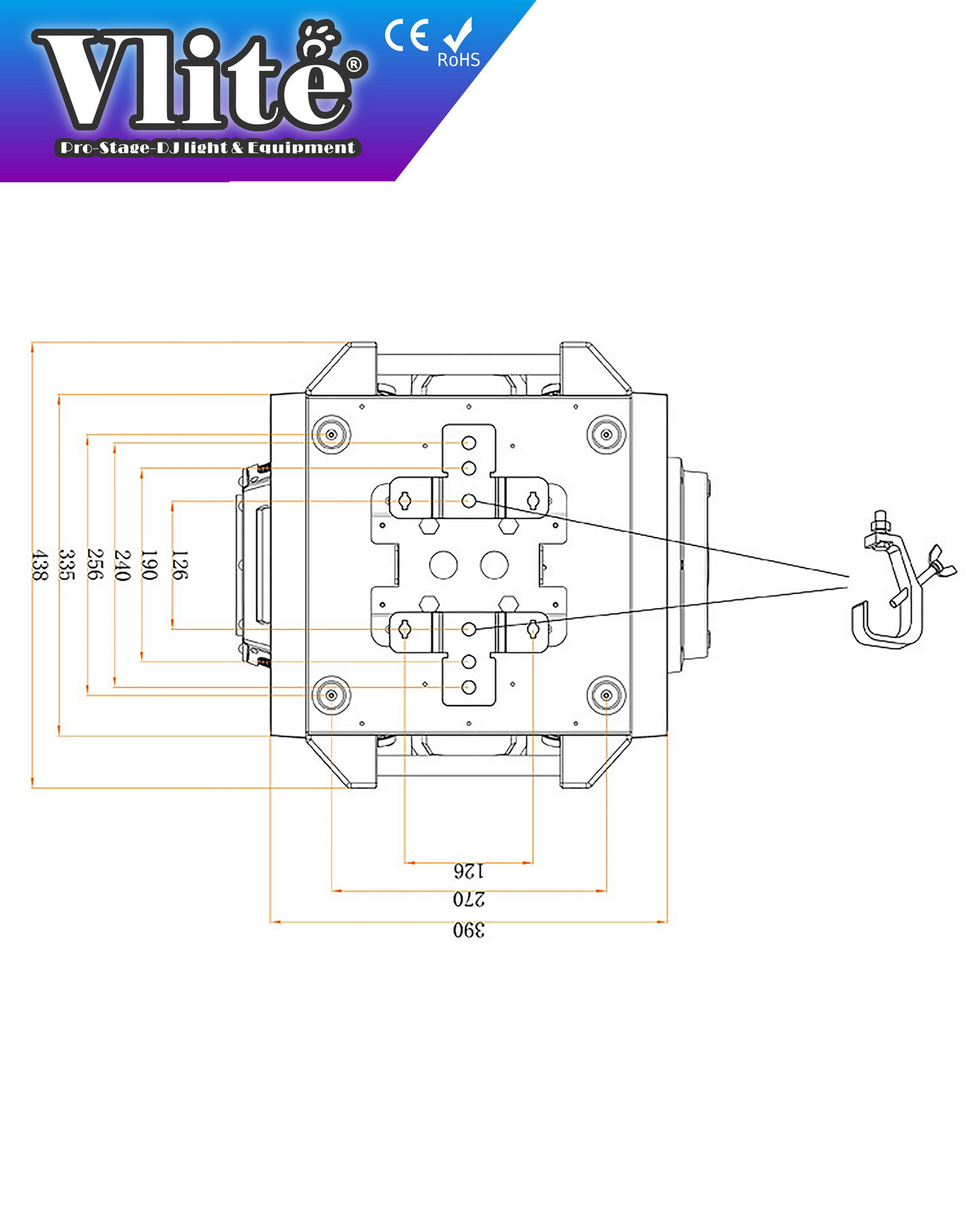

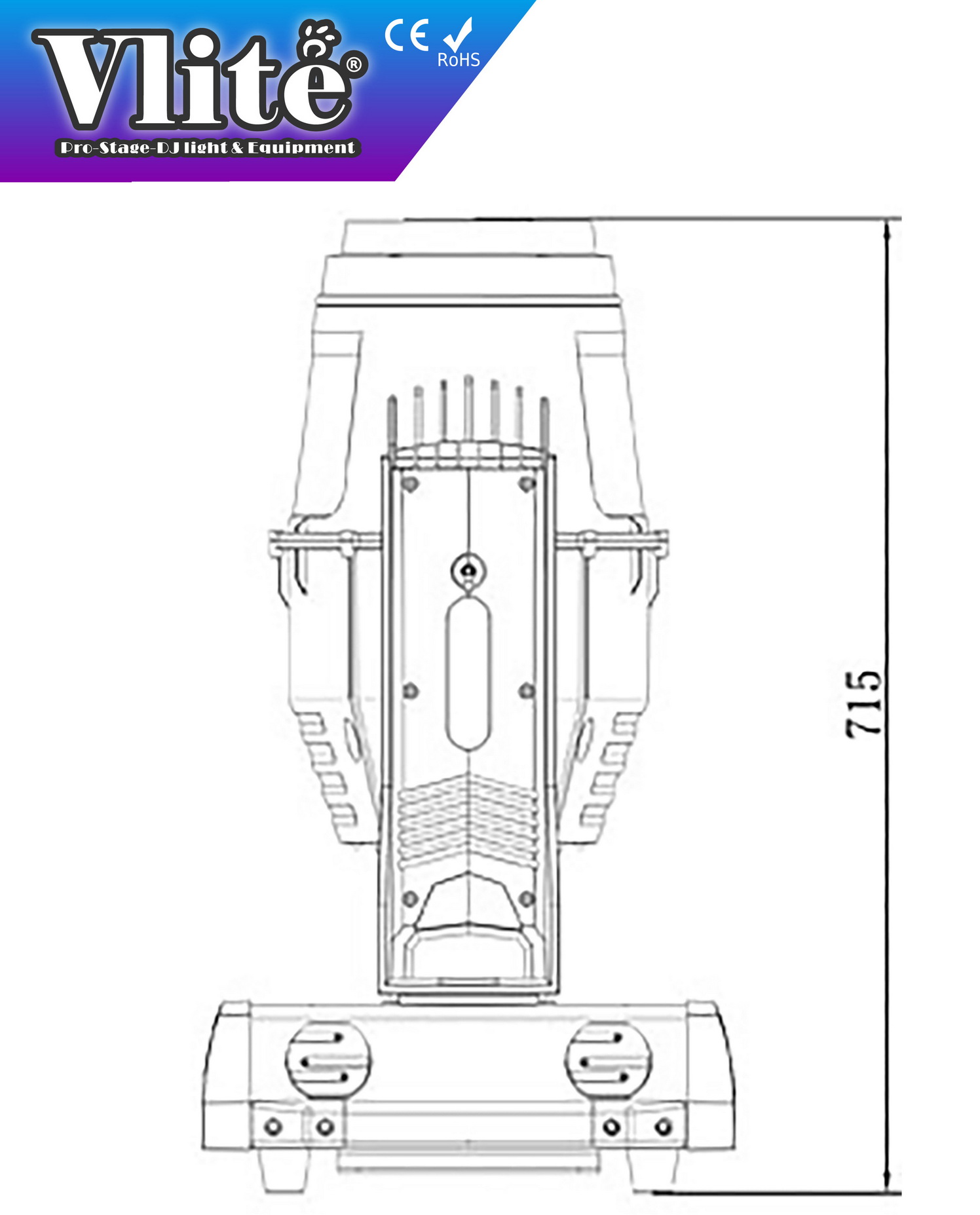

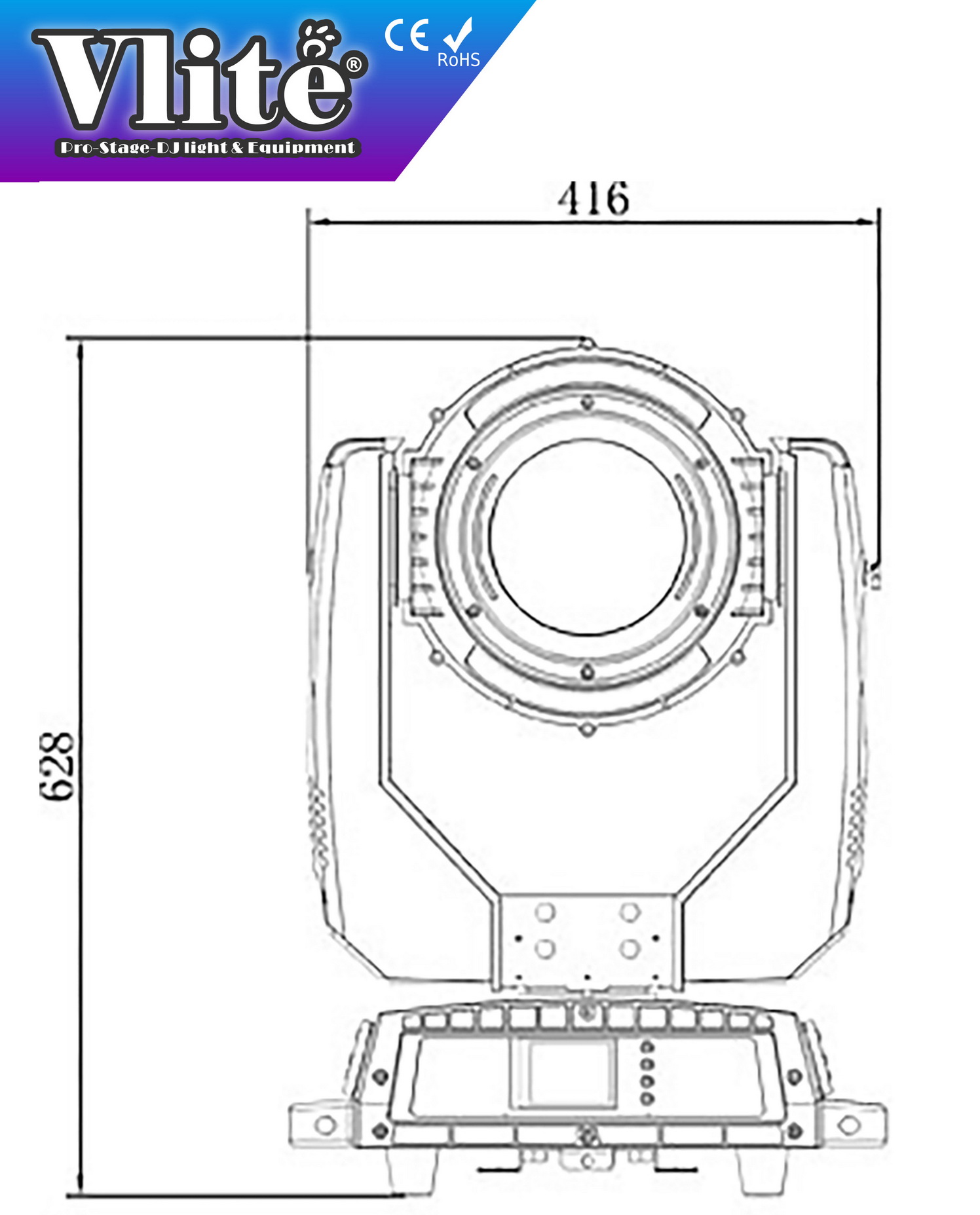

* Product Size: 44.0cm(L) X 39.0cm(W) X 68.0cm(H)
* Flight Case Size (2 pcs in one fly case): 102.0cm(L) X 53.0cm(W) x 84.0cm(H)
* Gross Weight: 97.0 KG (2 pcs lighting fixture and 1 fly case)
