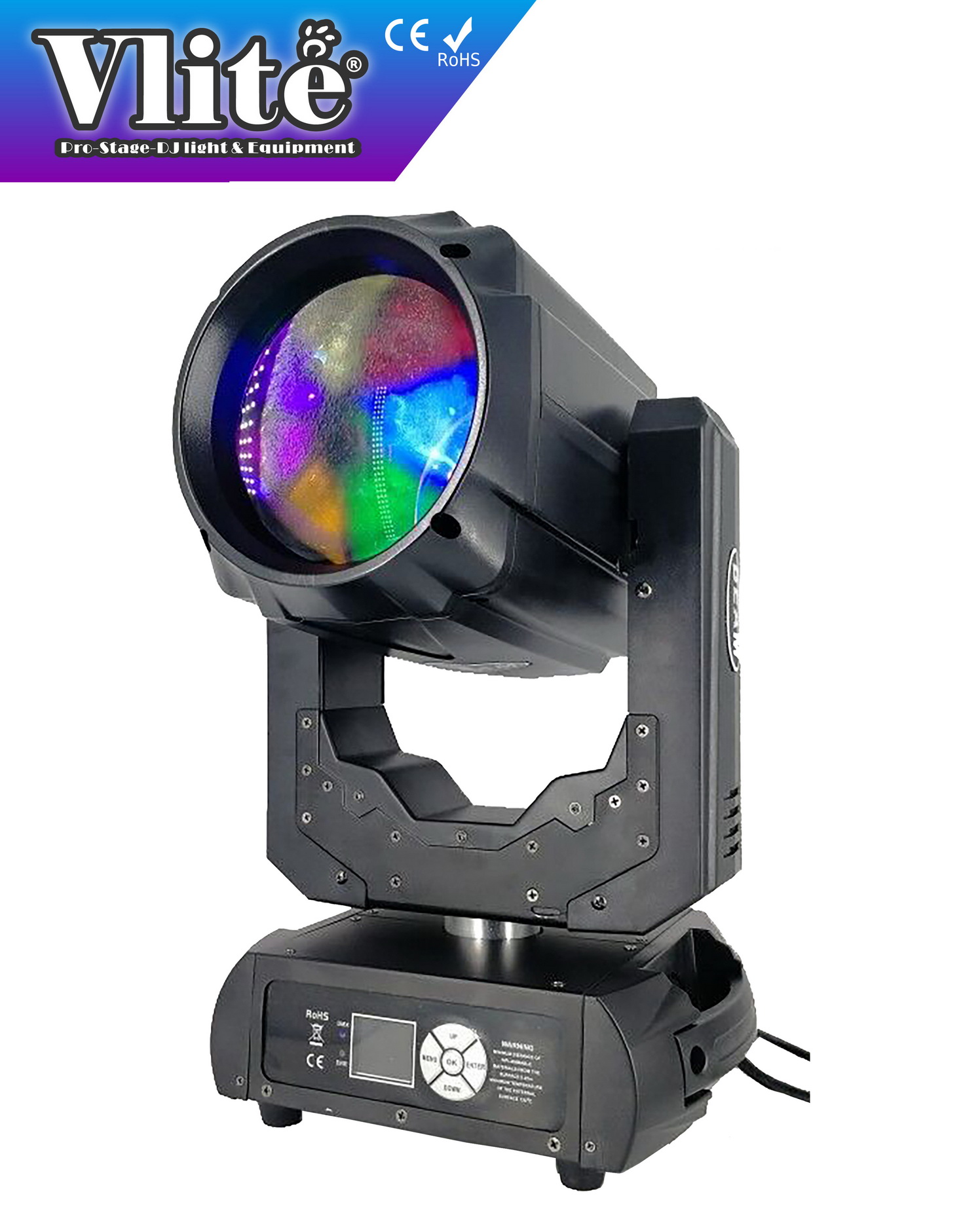

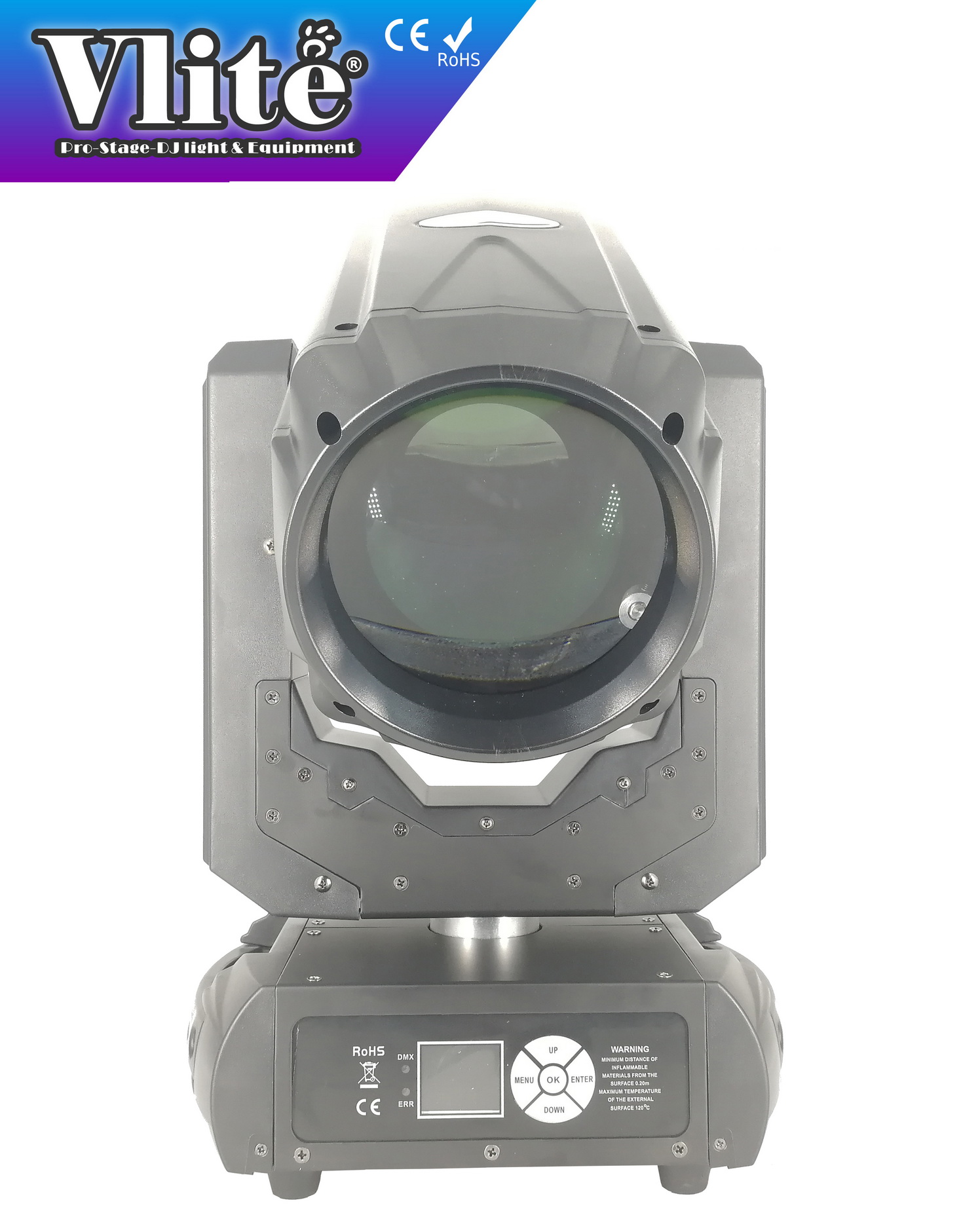

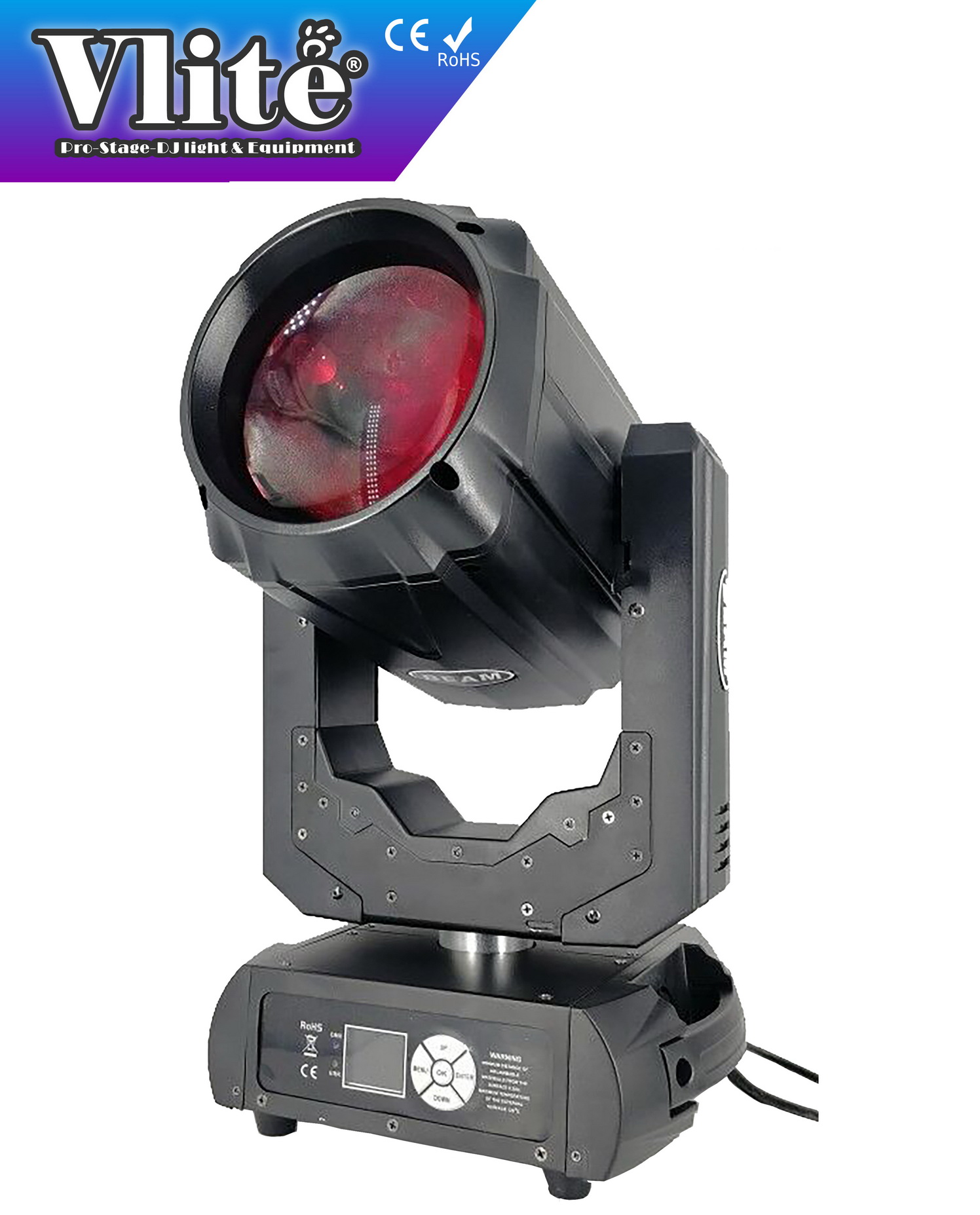

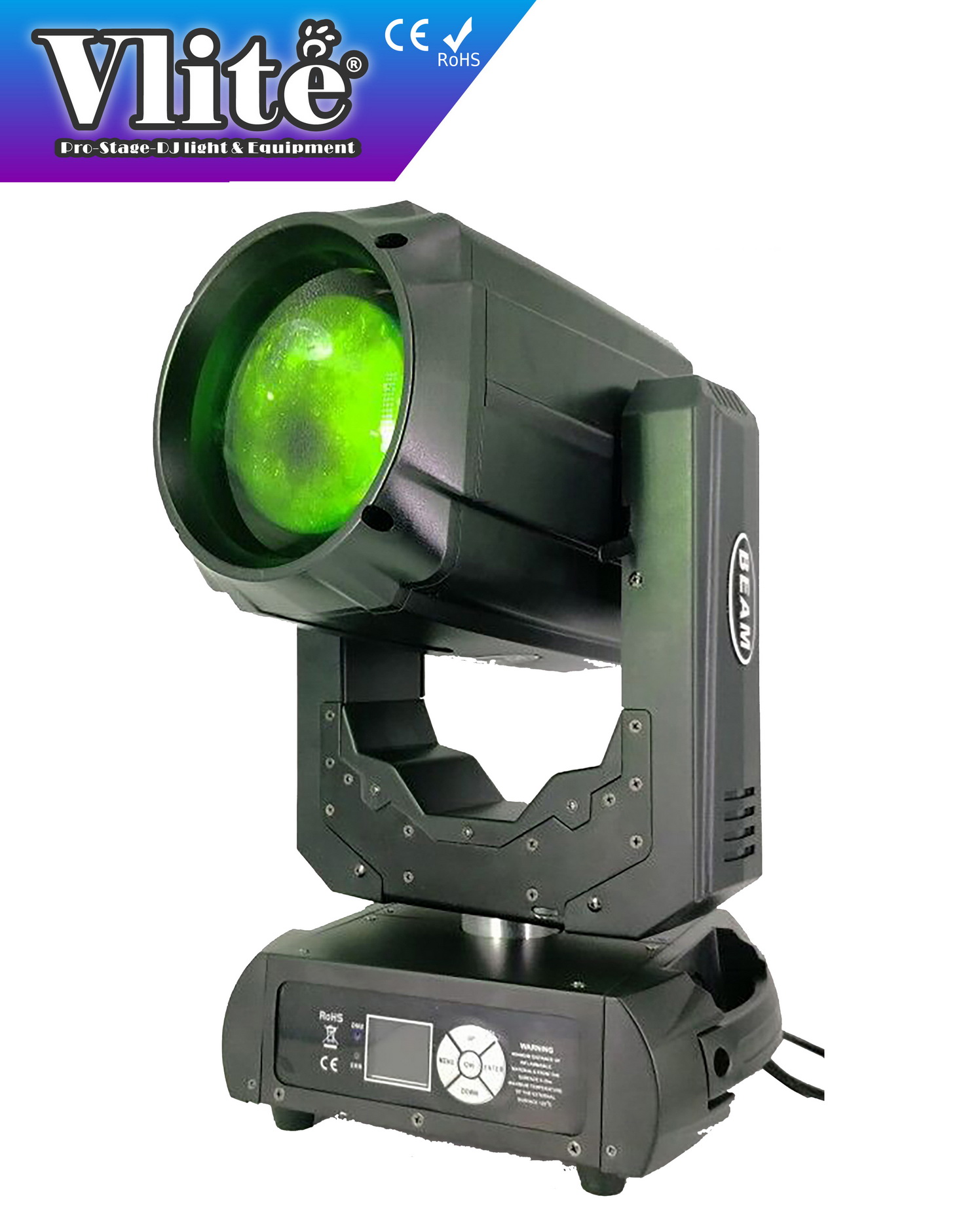

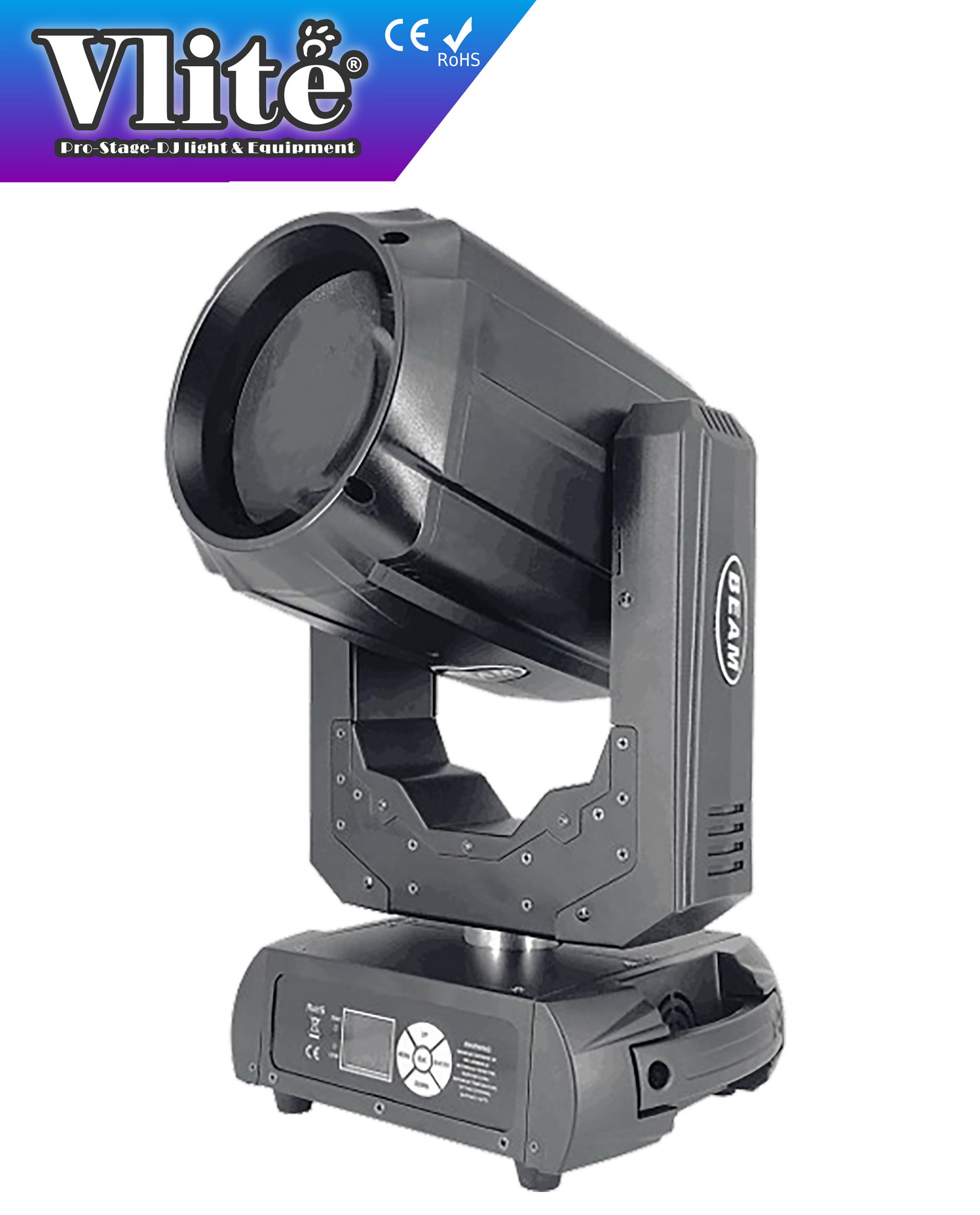

MB-260 10R

 260W 10R Beam Moving Head

Parameter Introduction

 Voltage and Power Consumption

* Voltage: AC110-240V, 50/60HZ

* Power Consumption: 330W

* Light Source: 260W New Imported Bulb

* Color Temperature: 6700K

 Features

* Beam Angle: 2°

* Pan scan: 540° (16bit) Electric correction

* Tilt scan: 270° (16bit) Electric correction

* 1 Color Wheel: 13colors + open, Rainbow effect, half color effect

* 1 Gobo Wheel: 13gobos + open, gobo shake and flow effect

* Prism: one 8+16+24-facet honeycomb prism, one 16-facet prism,

                       2pcs prisms can be superimposed, can rotate independently in both directions

* One piece 7-color mirror with rainbow effect

* Frost effect: Separate, variable wash effect soft and natural

* Linear dimming: mechanical linear dimming 0~100%

* Motor: silent motor, silent fast motherboard

* Strobe:0-20 Hz

 Control Mode

* Control Mode: DMX-512, Master/Slave and stand-alone auto run

 Structure

* Display: Color LCD Display

* Protection Level: IP20

 Dimension & Size

* Net Weight: 14.70KG

* Gross Weight: 16.50KG

* Product Size: 31cm(L) X 29.7cm(W) X 57.5cm(H)
