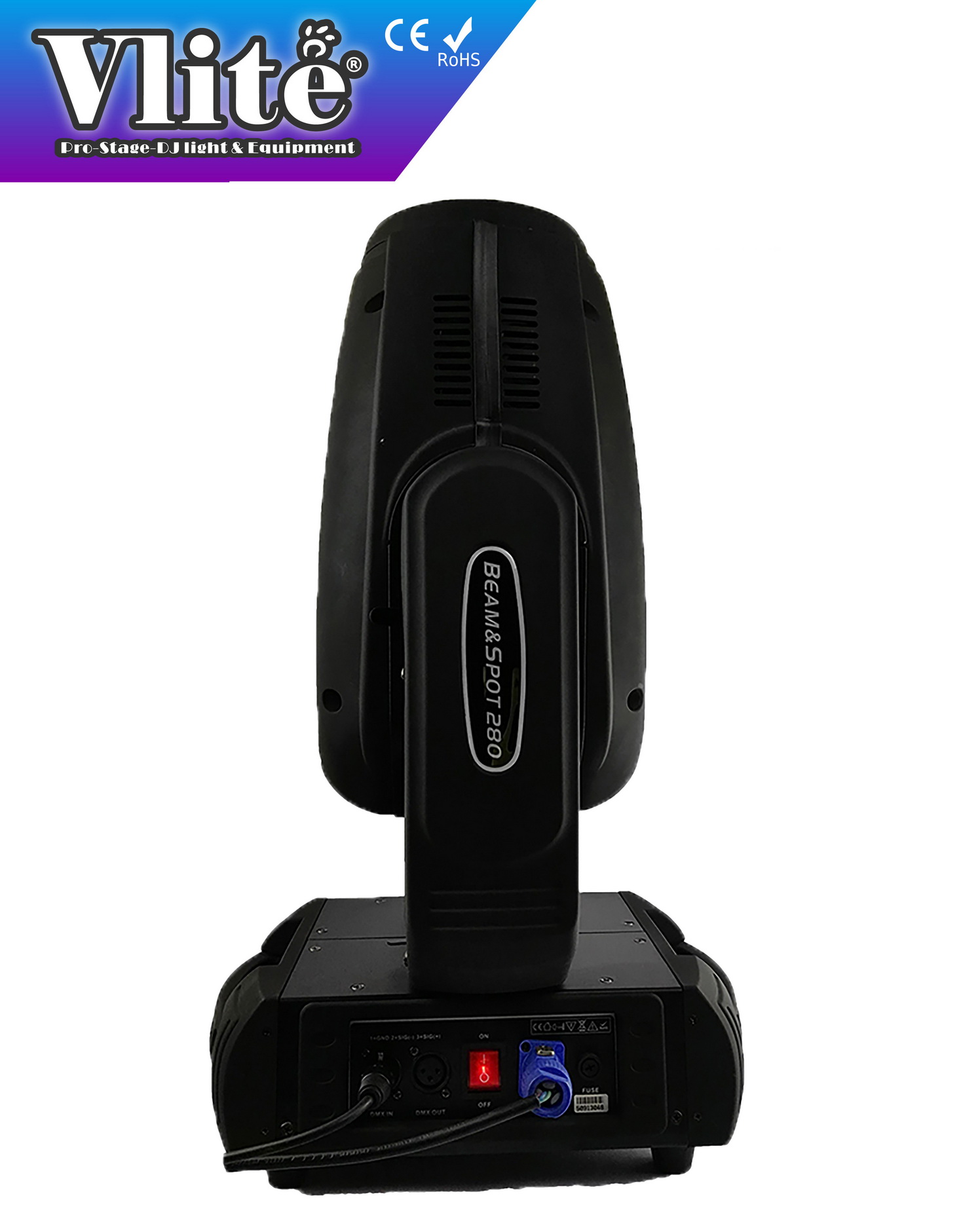

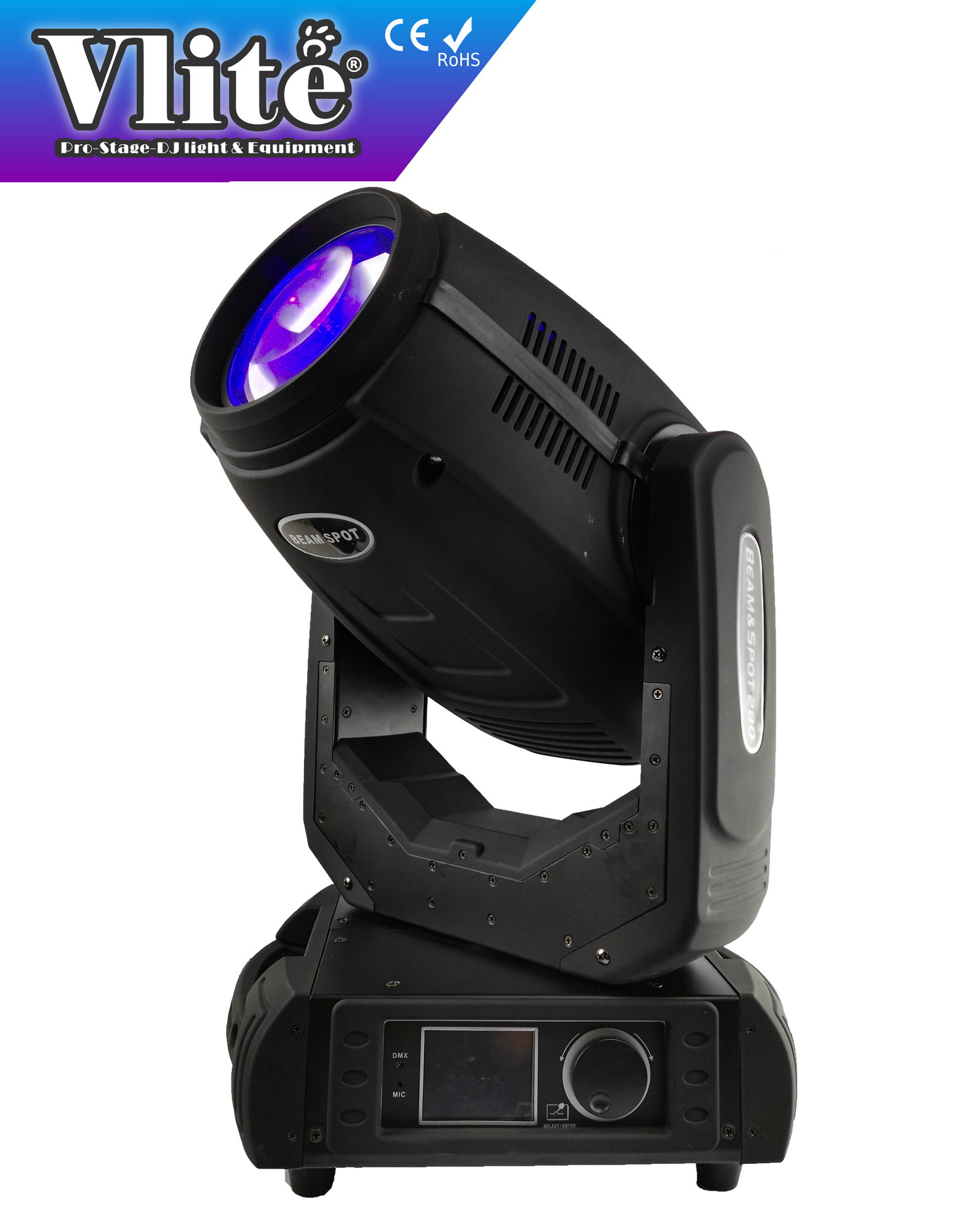

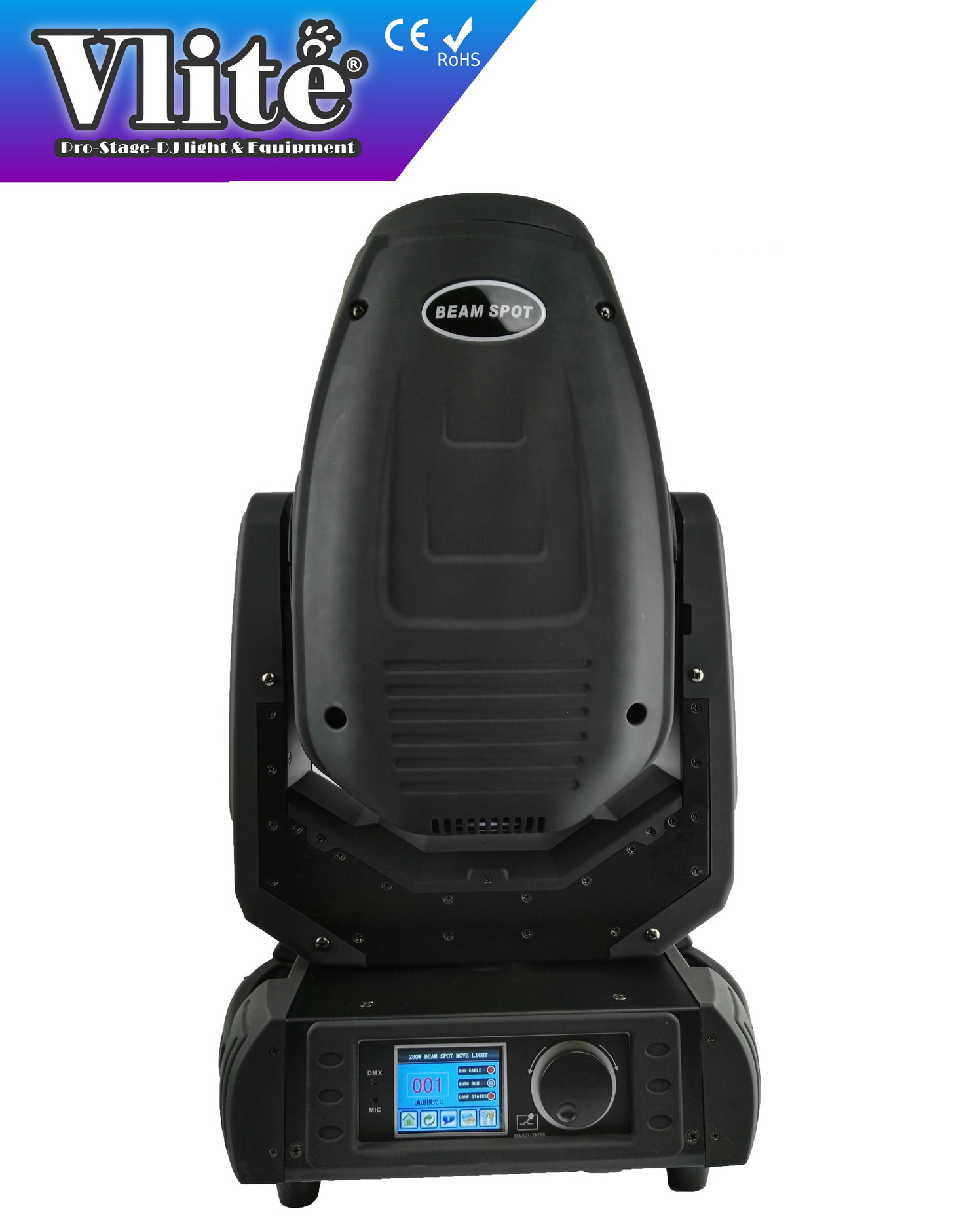

MB-280BSW 12R

Beam/Spot/Wash 3in1 Moving Head 280W

Parameter Introduction

Voltage and Power Consumption

* Voltage: AC100-240V, 50-60HZ

* Light Source: 12R, 280W

* Color Temperature: 9300K average life: 2000hrs

* Power Consumption: 420W

Features

* Pan/Tilt: X axis 540°+ fine, Y axis: 250°+ fine with speed adjustable

* Move-in-back for pan/tilt

* Motorized Focus, Zoom Range: 3.8°~ 45°

* Colors Wheel: 13 dichroic filters + white

* Gobo Wheel: 2 Gobo wheel, Rotating Gobo wheel: 9 rotating, indexable and
                       replaceable "SLOT&LOCK" glass gobos + open;
                       Static Gobo wheel: 14 gobos + open

* Prism 1: 8-facet circular prism rotating in both directions at different speeds

* Prism 2: 6-facet linear prism rotating in both directions at different speeds

* Frost effect: Separate, variable

* Dimmer/Shutter: Full range dimming and variable strobe effect

Control Mode

* 2DMX Protocol Modes: 16/24CH

* Stand-alone operation, Touch screen, Pan/Tilt resolution: 8 or 16bit

* Movement Control: Tracking and Vector,

* Power Input: Power Con

Structure

* Protection Level: IP20

Dimension & Size

* Net Weight: 19.00 KG

* Gross Weight: 21.00 KG

* Product Size: 38.6cm(L) X 36.5cm(W) X 58.9cm(H)

* Packing Size: 46.0cm(L) X 40.0cm(W) x 66.0cm(H)
