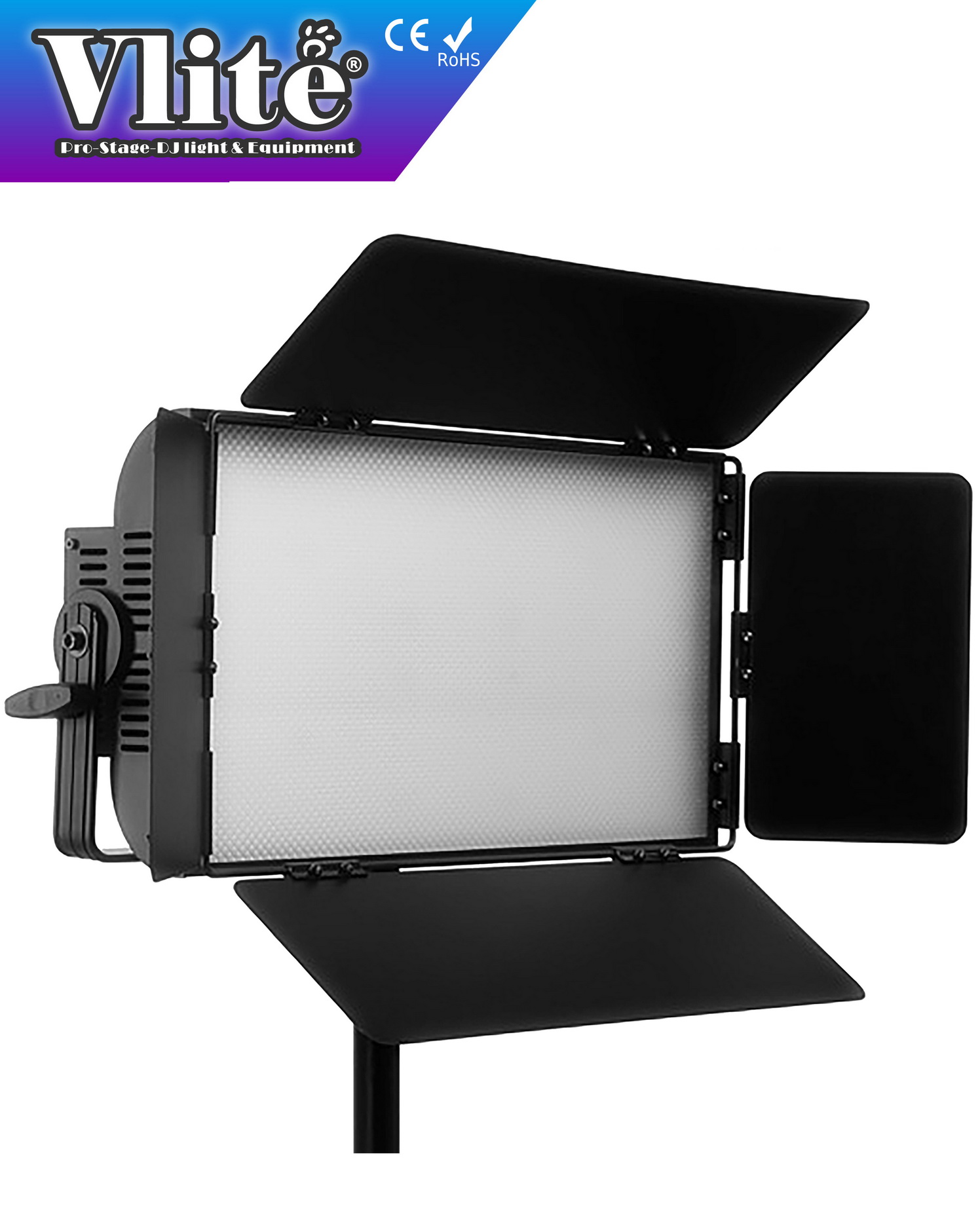

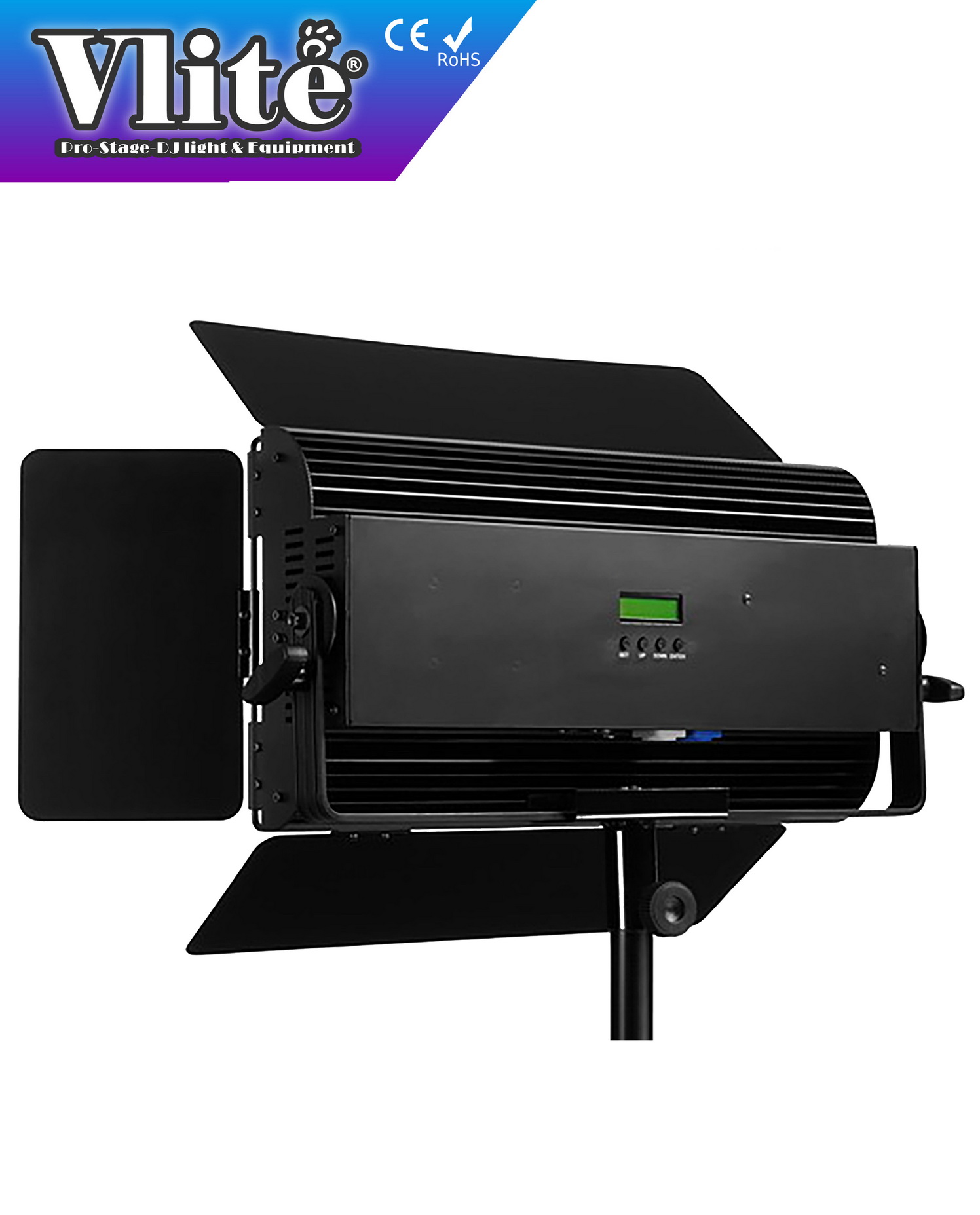

PX-200

200W LED Soft Light

LED Soft light, aluminum + light guide plate design, light and beautiful, rated power 200W, 392 SMD LED. LED light output are comfortable, high-quality composite soft diffuser panel, light angle of 120 °, no glare, no glare. Standard DMX512 digital control signal control, color temperature 3200 ± 150 K /5600 ± 150K / 3200K-6500K adjustable 3 options. Color rendering index ≥ 80, with 3 kinds of linear dimming, can be selected in the channel. Constant current drive, ARM7 processor, built-in silent convection heat dissipation technology, effectively extend the life of the light source, four-piece barndoor, uniform and soft large-area projection

Parameter Introduction

Voltage and Power Consumption

* Voltage: AC100-260V, 50-60Hz

* Power Consumption: 200W

* Light Source: 0.5W X 1,200 PCS SMD LED

* Color Temperature: 3200K±150K /5600K±150K/3200K-6500K adjustable (Optional)

Features

* Color of light output: Cool white / warm white / high and low color temperature

* Beam Angle: 120°

* Color rendering index: Ra≥80

* Strobe: 0-25Hz

* Dimming Mode: 3 linear dimming options, you can select via the DMX-512 channel.

* Dimming 0-100% (16-bit) linear adjustment

* Application: Applicable to TV studios, Theaters, Conference systems, Multi-purpose halls

Control Mode

* Control Mode: DMX-512, Auto-run

* DMX-512 Channels: 4 CH

* Signal input/output 3P-XLR input/output

* Core Control System: Adopts advanced anti-jamming ARM7 processor, constant current drive mode

Structure

* Cooling System: Large heat sink + Lamp body cooling

* Body: Aluminum + light guide plate design, light and beautiful, Black Color

* Protection Level: IP20

* Cooling System: Chassis cooling + Cooling fan

Dimension & Size

* Net Weight: 6.50 KG

* Product Size: 64.0cm(L) X 33.0cm(W) X 9.2cm(H)
