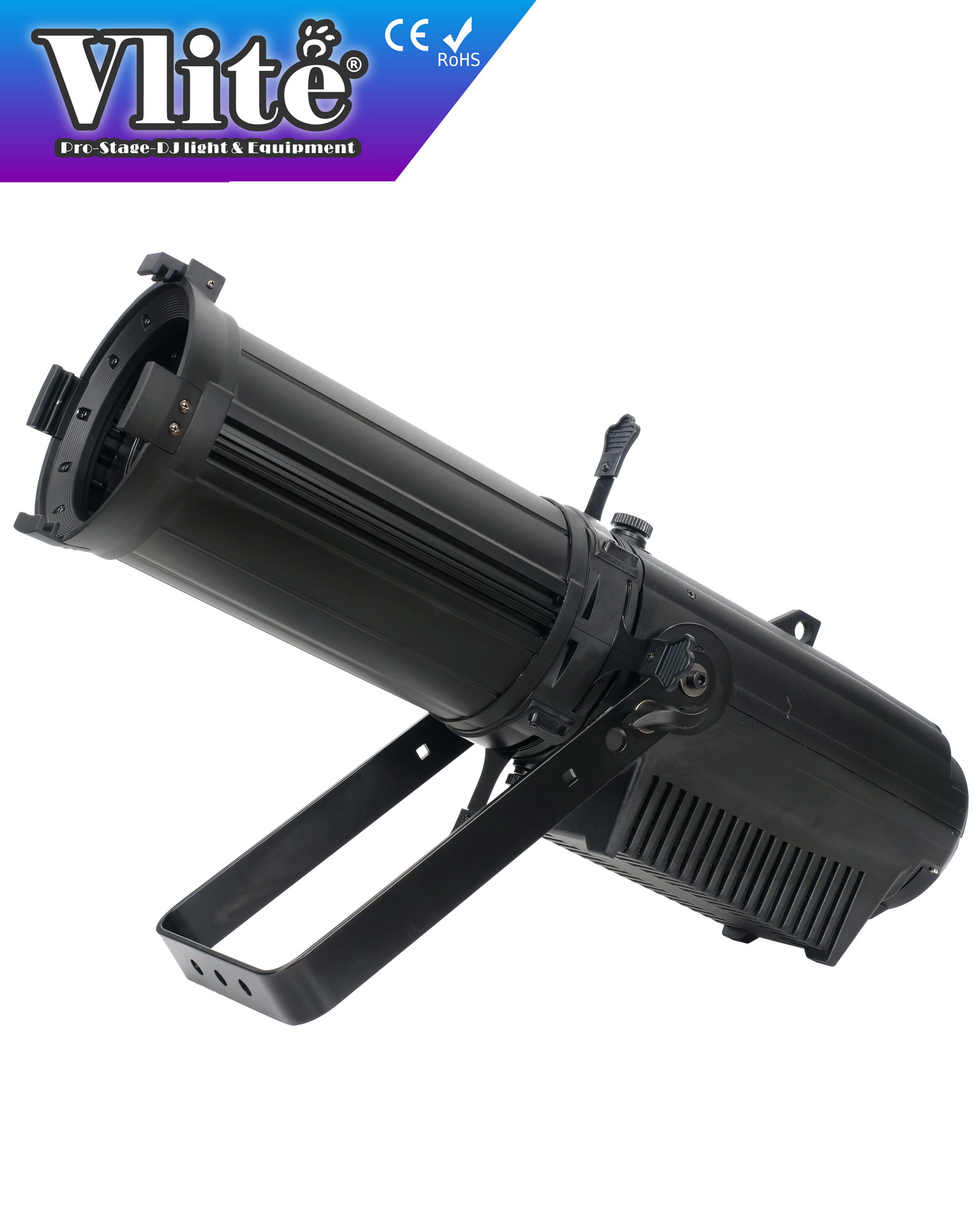

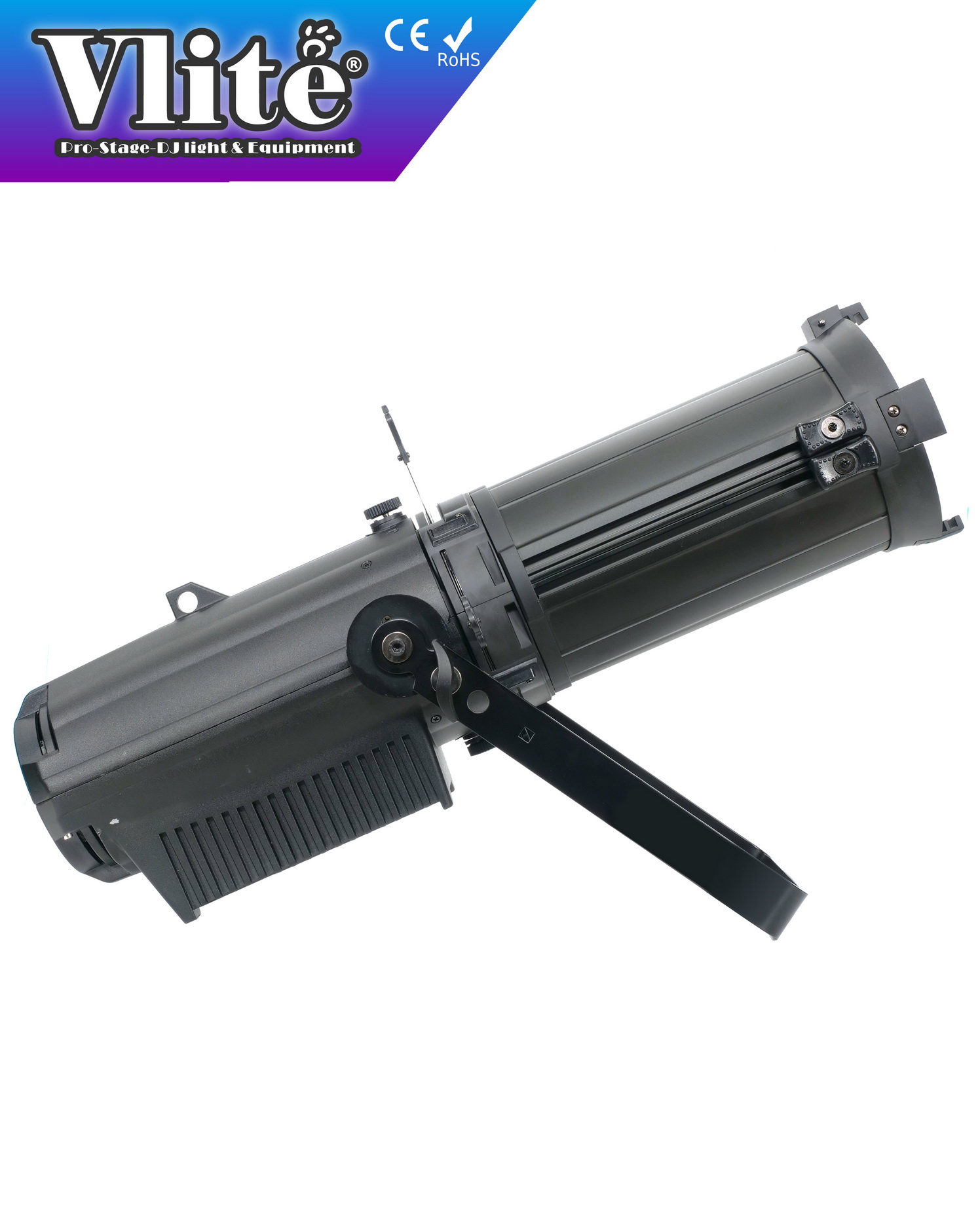

PS-Z01 / PS-Z02 / PS-Z03

PS-Z01 200W White LED ELLIPSOIDAL Zoom 25°-50°

PS-Z02 200W RGBW LED ELLIPSOIDAL Zoom 25°-50°

PS-Z03 300W White LED ELLIPSOIDAL Zoom 25°-50°

The device adopts die-casting aluminum shell to achieve lightness and excellent heat dissipation performance of the lighting. This product uses Nichia high-performance imported high-brightness LED light source. The scientific and reasonable optical system has the characteristics of uniform light spot, no blue edge and stable color temperature. The additional dual soft light filtering technology allows the light distribution to reach ultrafine uniformity in the micron range. The advanced heat pipe conduction technology and active heat dissipation method effectively protect the service life and safety of the LED. Good heat dissipation effect, effectively extend the service life of the light source. Perfect dimming, highly consistent color temperature throughout. No flicker output, DMX control. High image definition, straight and clear-cut line when cutting light.

Parameter Introduction

Voltage and Power Consumption

* Voltage: AC90～260V，50Hz/60Hz

* Power Consumption: 260W / 390W

* Light Source: Nichia LED, life time: 50000h

* Power: 200W / 300W

Features

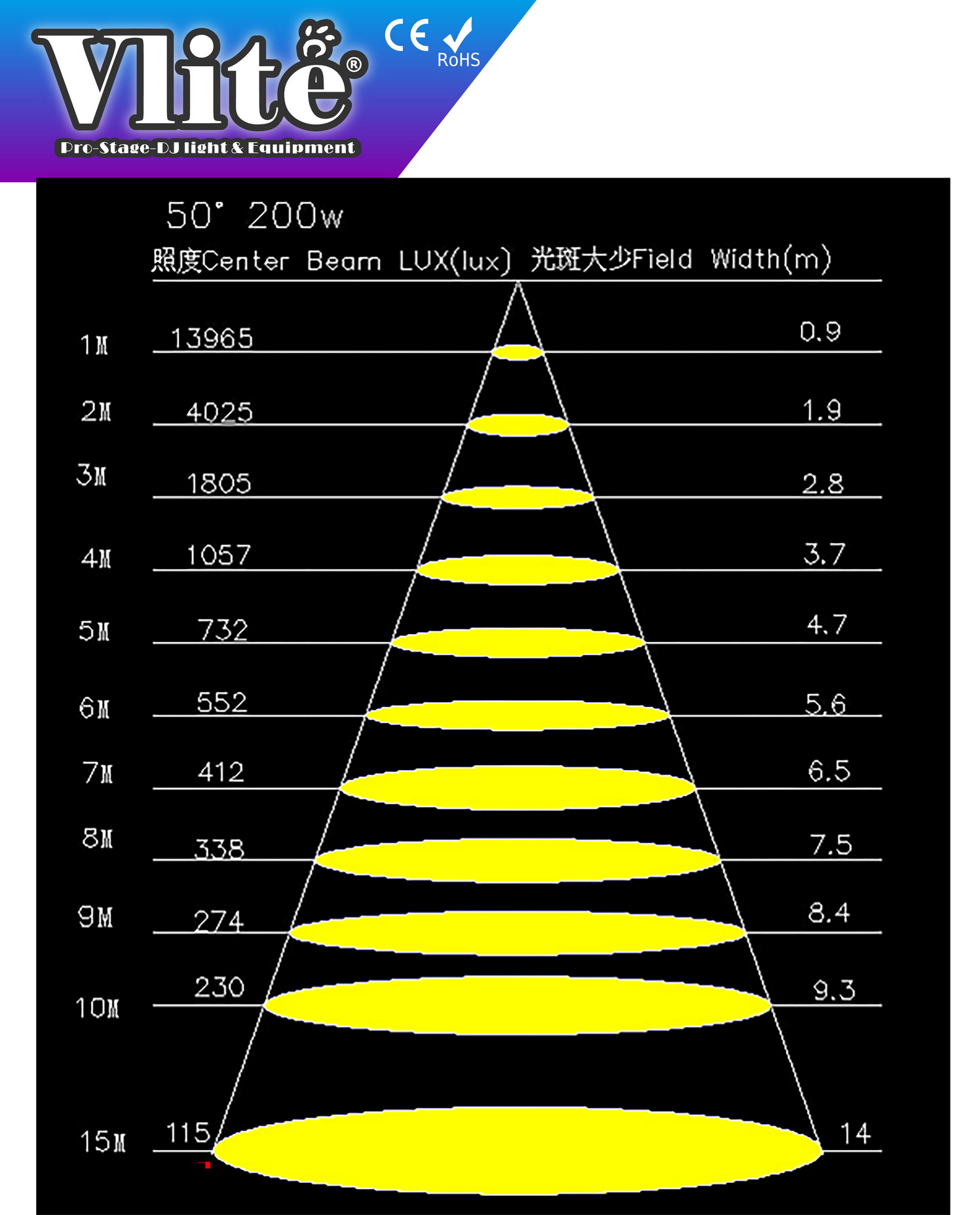

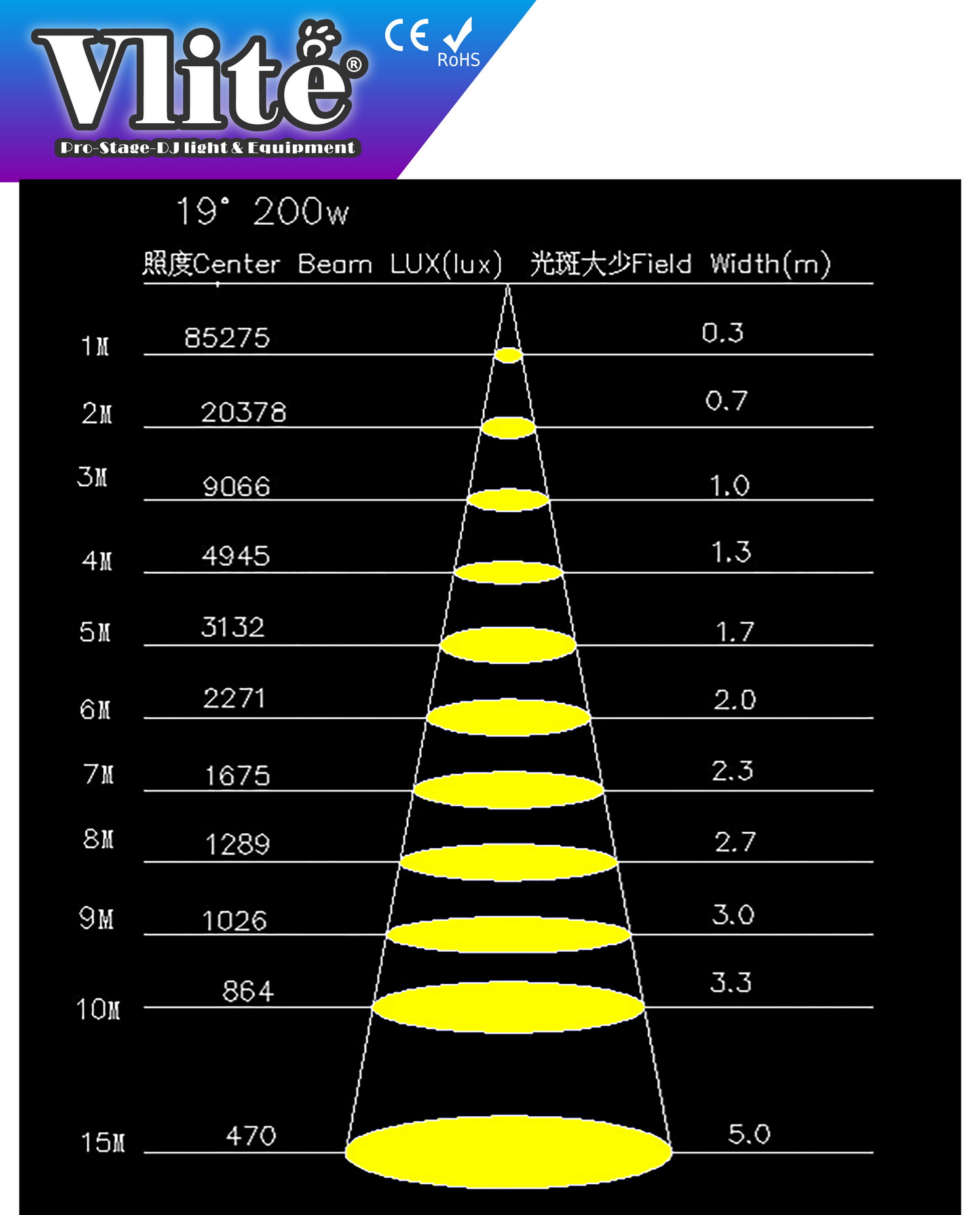

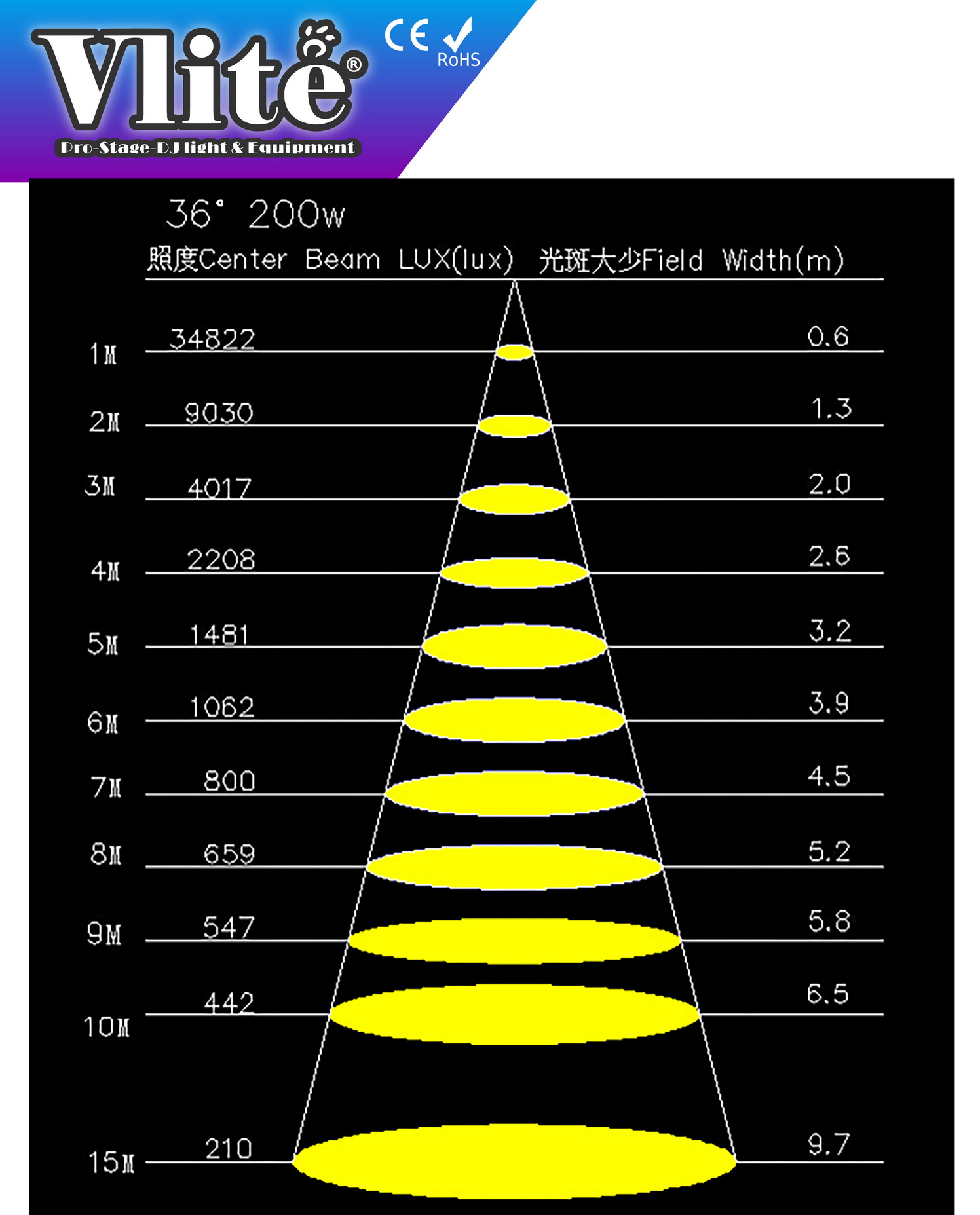

* Beam Angle: Zoom range12°~30° or 25-50° (optional)

* Color Temperature: 3200±150 K /5600±150K/ RGBW 4in1 (optional)

* Focusing Method: Manual

* Strobe: 0-25Hz fast electronic strobe, adjustable strobe speed

* Dimming: 0-100%

* Dimming Frequency: 500HZ~25K adjustable

* Dimming Mode: With 4 dimming speeds and 4 dimming curves

* Power / Signal: PowerCon IN/OUT, 3P-XLR signal IN/OUT

* Noise:<30DB

Control Mode

* Control Protocol: Standard DMX-512 protocol and RDM protocol

* Channel: 1/2CH(monochrome)， 4/7CH(RGBW)

* Core Control System: Using advanced anti-interference ARM7 processor, constant current drive mode

Structure

* Protection Level: IP23

* Material: Die-cast aluminum, light and beautiful

* Cooling System: Large heat sink + Lighting body cooling + intelligent temperature control

* Housing Surface Temperature: ≦60°C

* Working Temperature: -20°C~45°C

* Color: Black

* Content: Light device (black), power cable, signal cable and safety rope

* Optional Accessories: Light hook

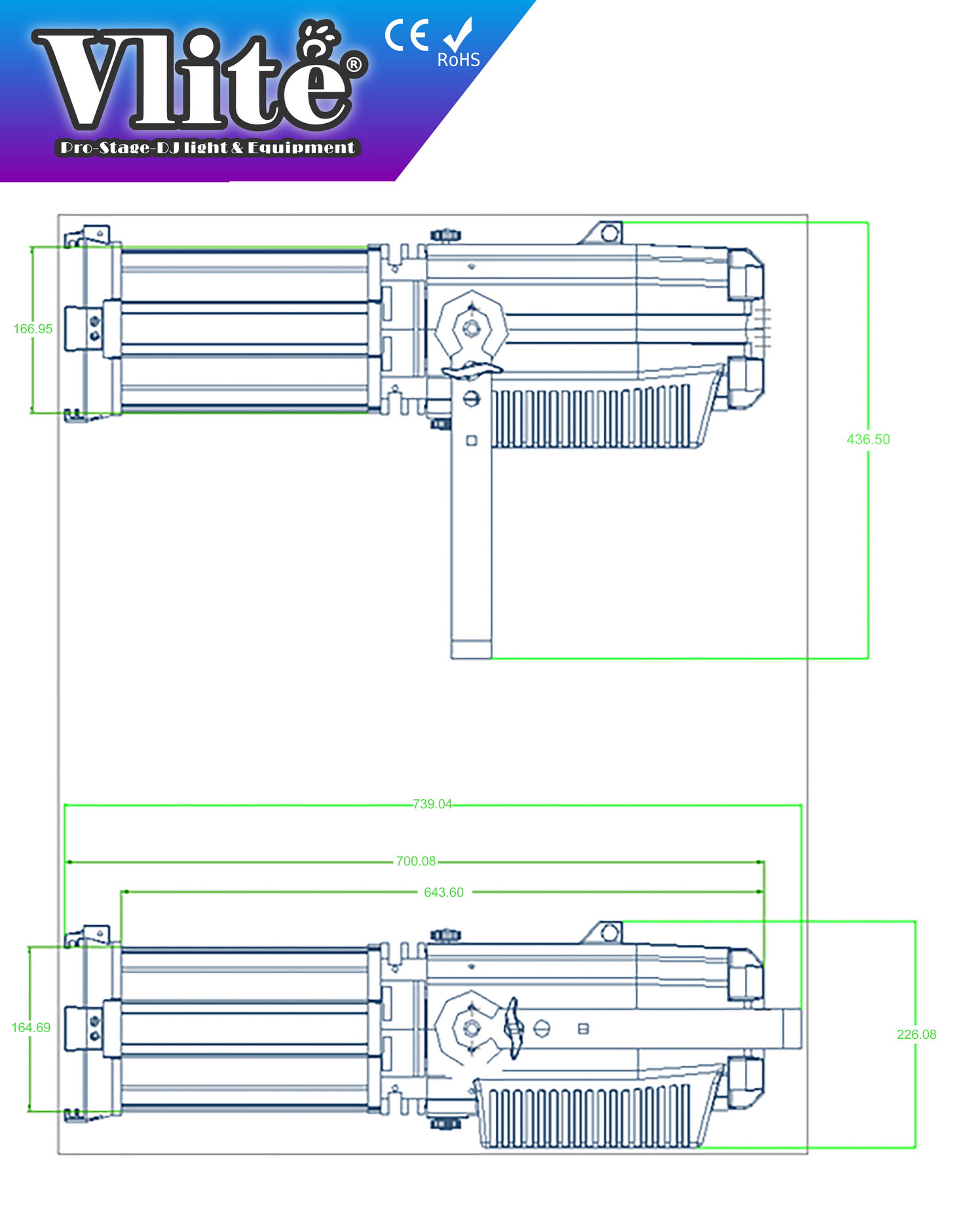

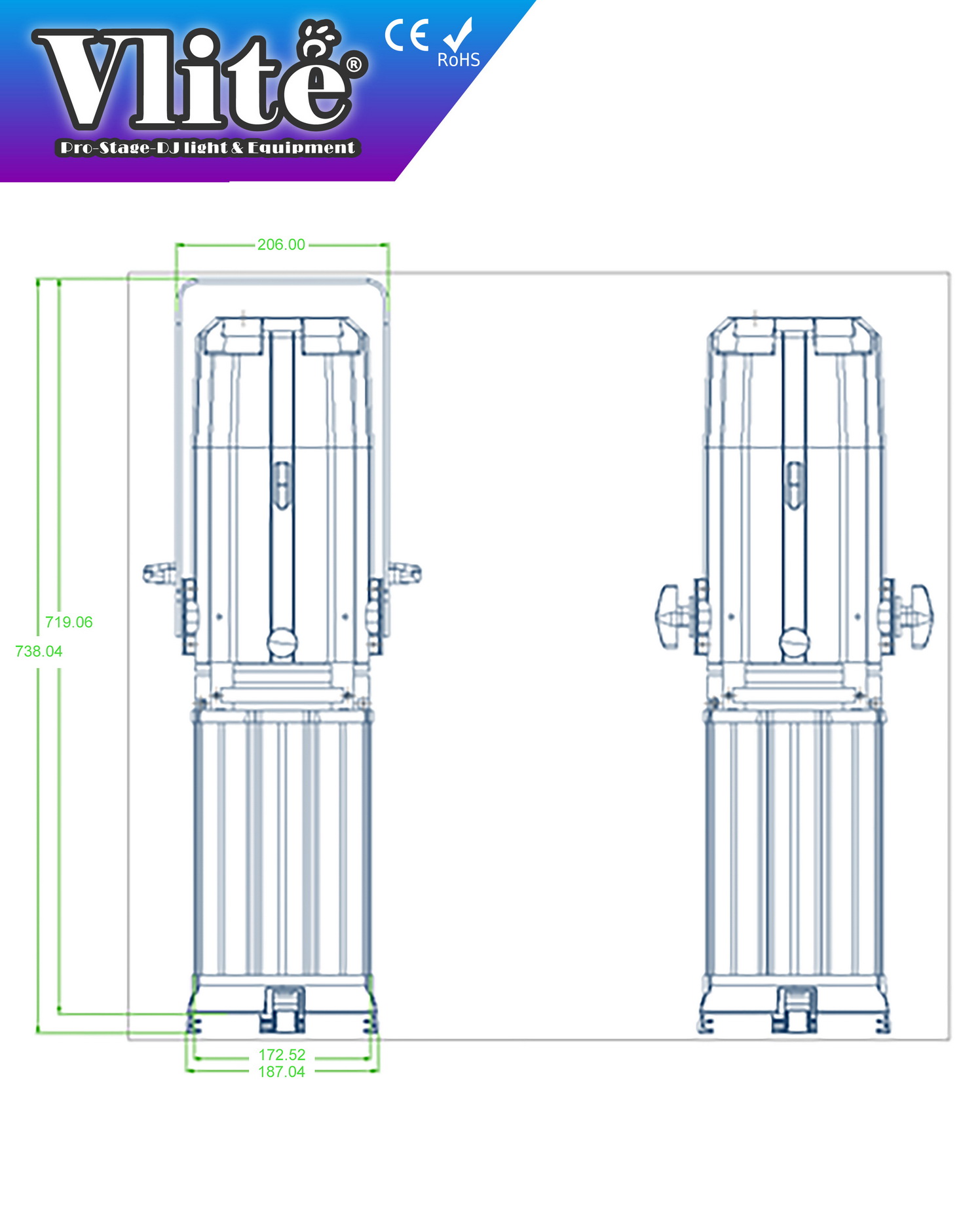

Dimension & Size

* Net Weight: 11.46kg (12°- 30°); 11.05kg (25°- 50°)

* Product Size: 7.38cm(D) X 18.7cm(W) X 43.6cm(H)
