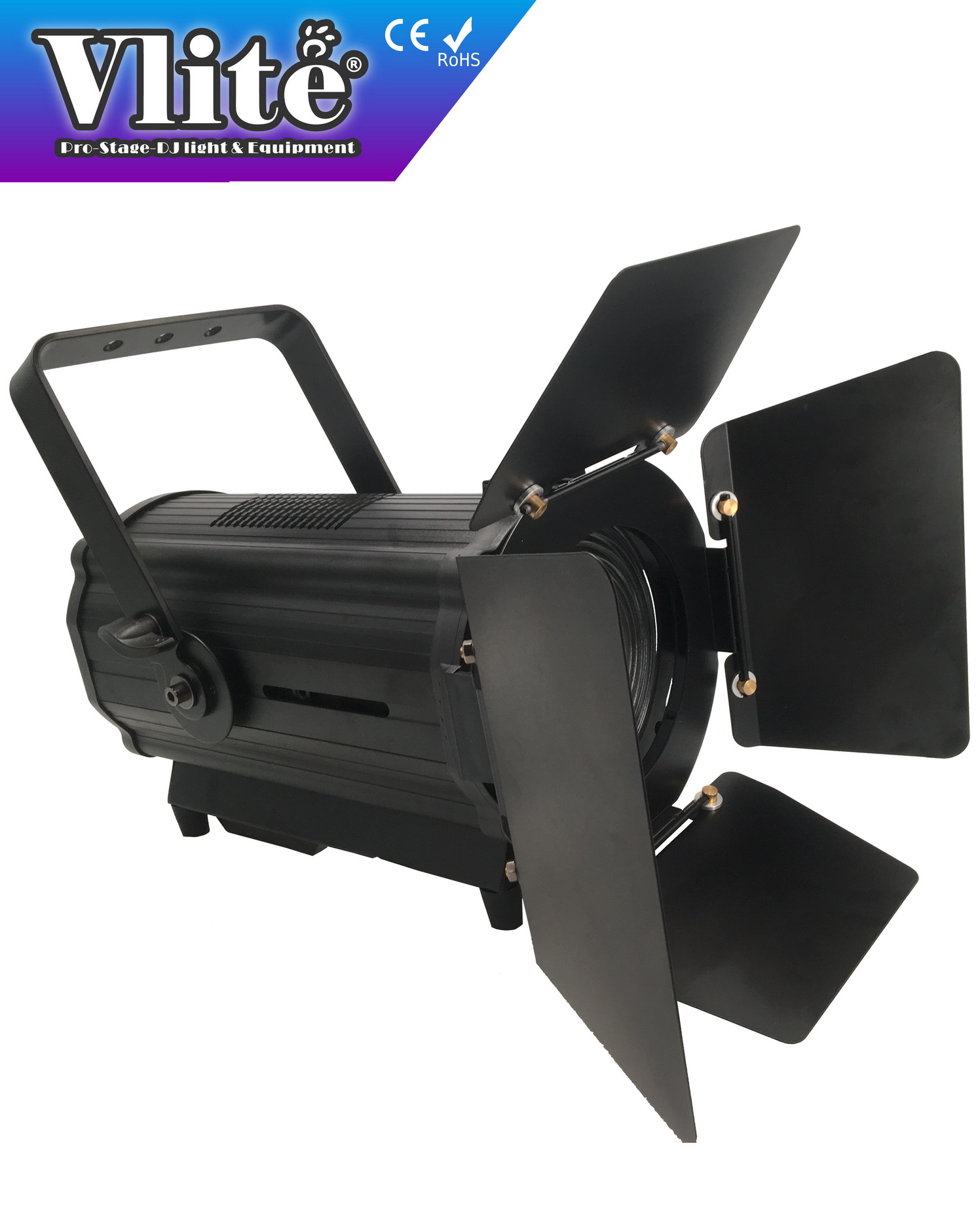

SF300

Studio LED Fresnel Spotlight 300W

The device is combined with ABS materials and aluminum profiles to achieve light and compact. This product uses high-performance imported high-brightness LED light source (300W). The scientific and reasonable optical system has the characteristics of uniform light spot and stable color temperature. The advanced heat pipe conduction technology and active heat dissipation method effectively protect the service life and safety of the LED. Good heat dissipation effect, effectively extend the service life of the light source. Perfect dimming, highly consistent color temperature throughout. No flicker output, silent operation DMX control

Parameter Introduction

Voltage and Power Consumption

* Voltage: AC90～260V 50Hz/60Hz

* Power Consumption: 400W

* LED Power: 300W (Imported from Japan), life time: >50000h

* Light Spot: Uniform light spot and stable color temperature

Features

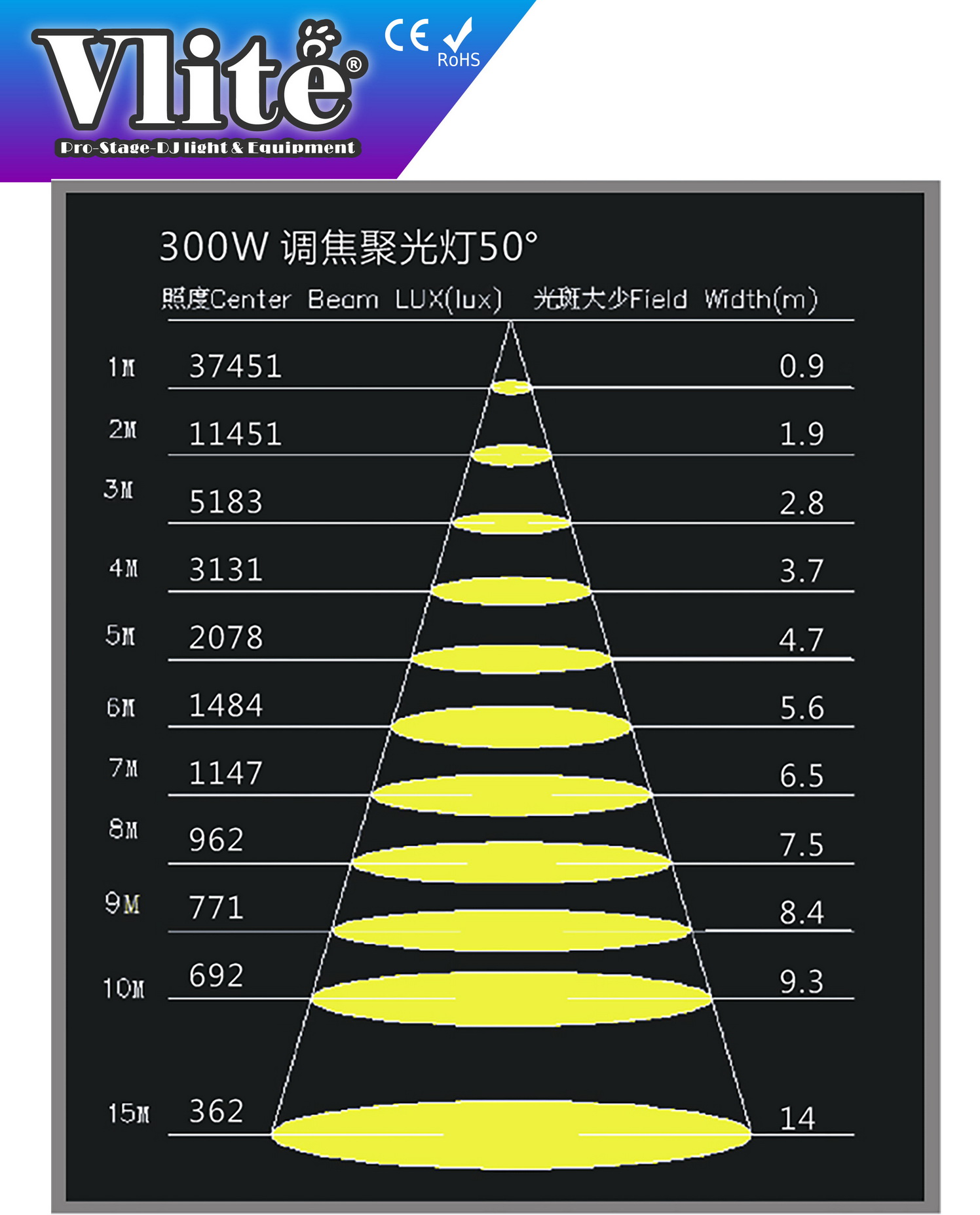

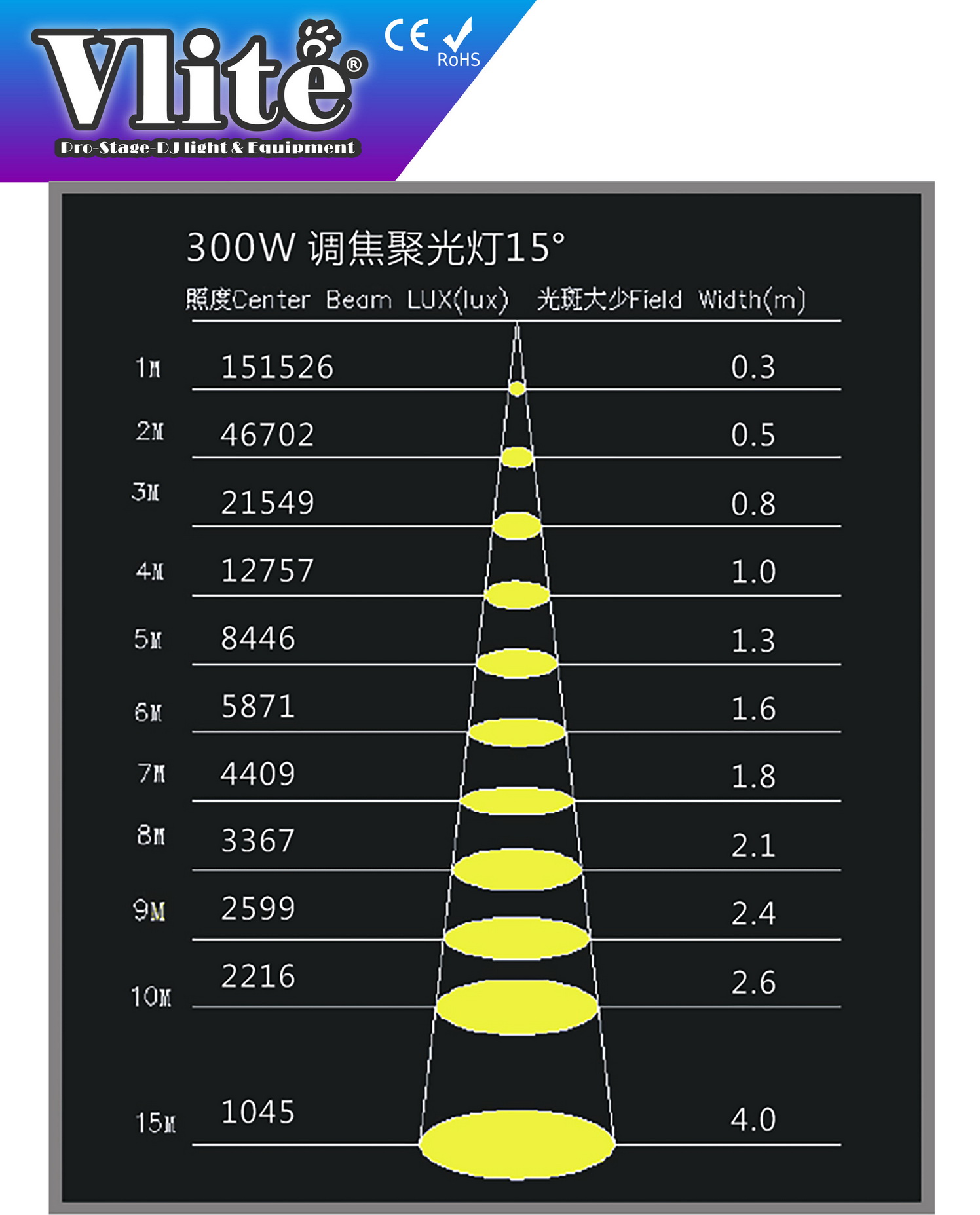

* Zoom Range: 15° ~ 50°

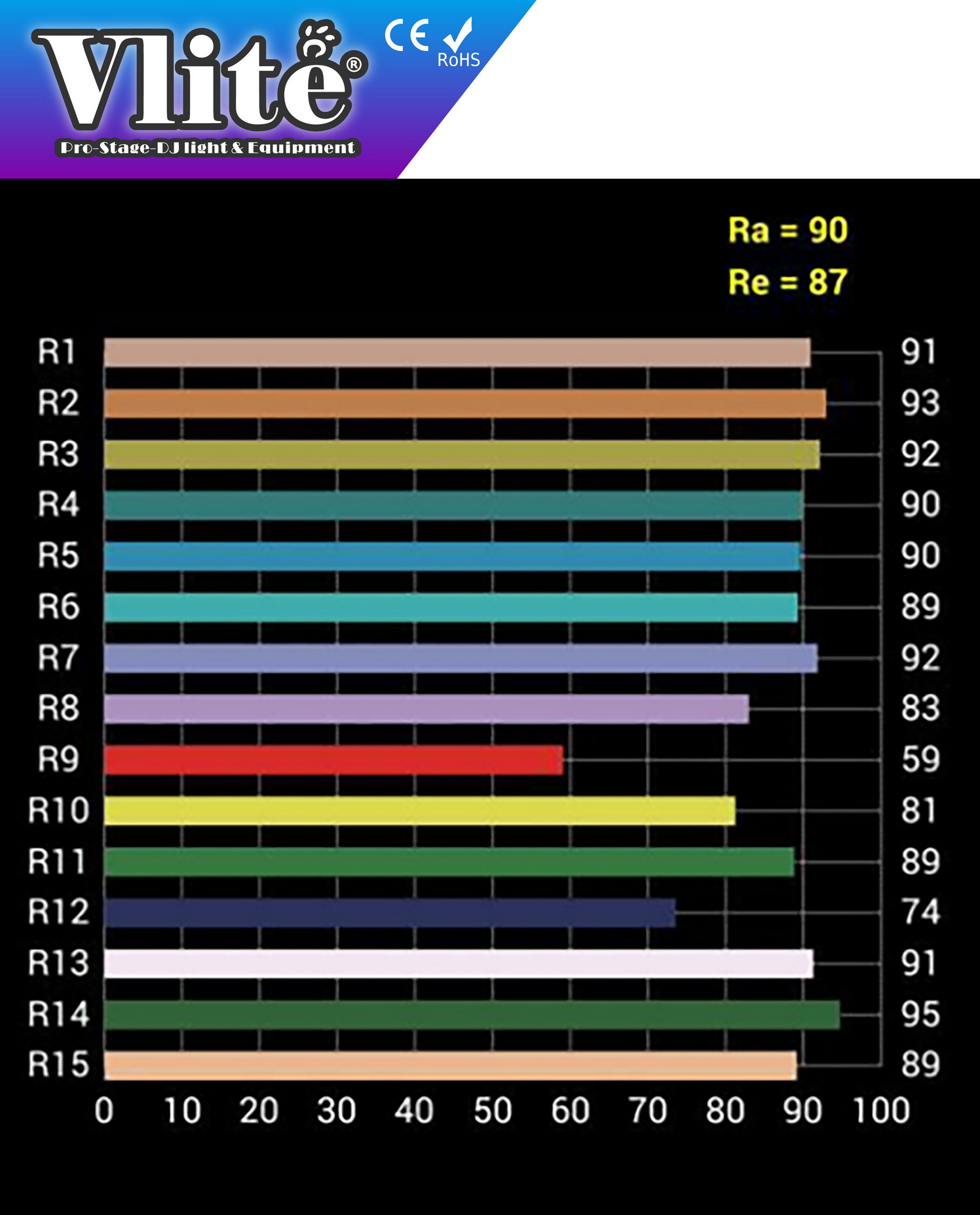

* CRI: Ra≥90

* Color Temperature: 3200K (Warm White) / 5600K (White)

* Focusing Method: Manual

* Dimming: 0-100%

* Strobe: 0-25Hz fast electronic strobe with adjustable strobe speed

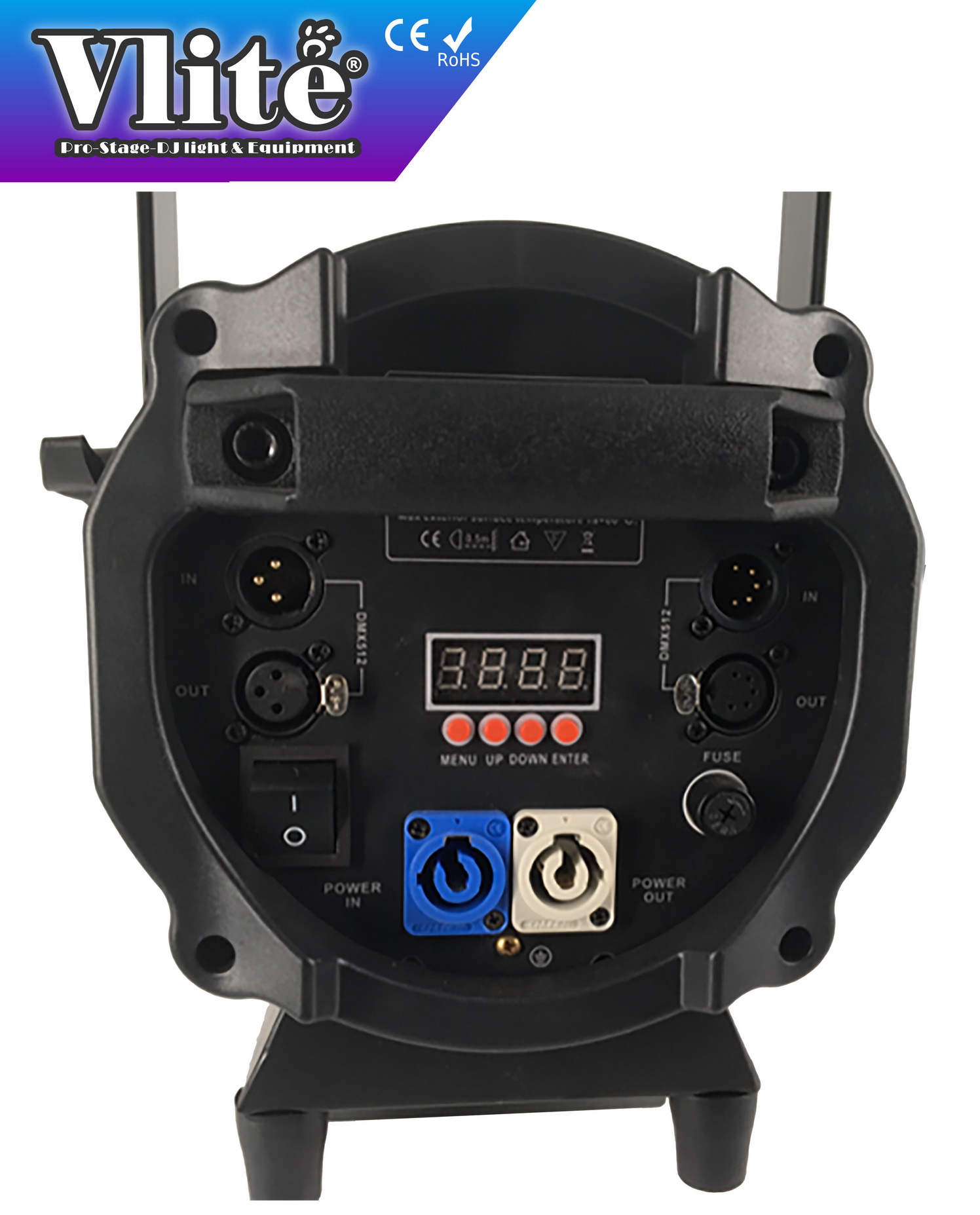

* Power / Signal: PowerCon IN/OUT, 3P-XLR signal IN/OUT

* Noise: <45DB

* Application: Suitable for lighting venues such as TV studios, Theaters, Conference systems, Multi-function
                       hall

Control Mode

* Control Protocol: Standard DMX-512 protocol and RDM protocol

* Channel: 1CH / 3CH

* Core Control System: Using advanced anti-interference ARM7 processor, constant current drive mode

Structure

* Protection Level: IP23

* Material: High-strength plastic + sheet metal, light and beautiful

* Cooling System: Large heat sink + Lighting body cooling + intelligent temperature control

* Working Temperature: -20°C~45°C

* Color: Black

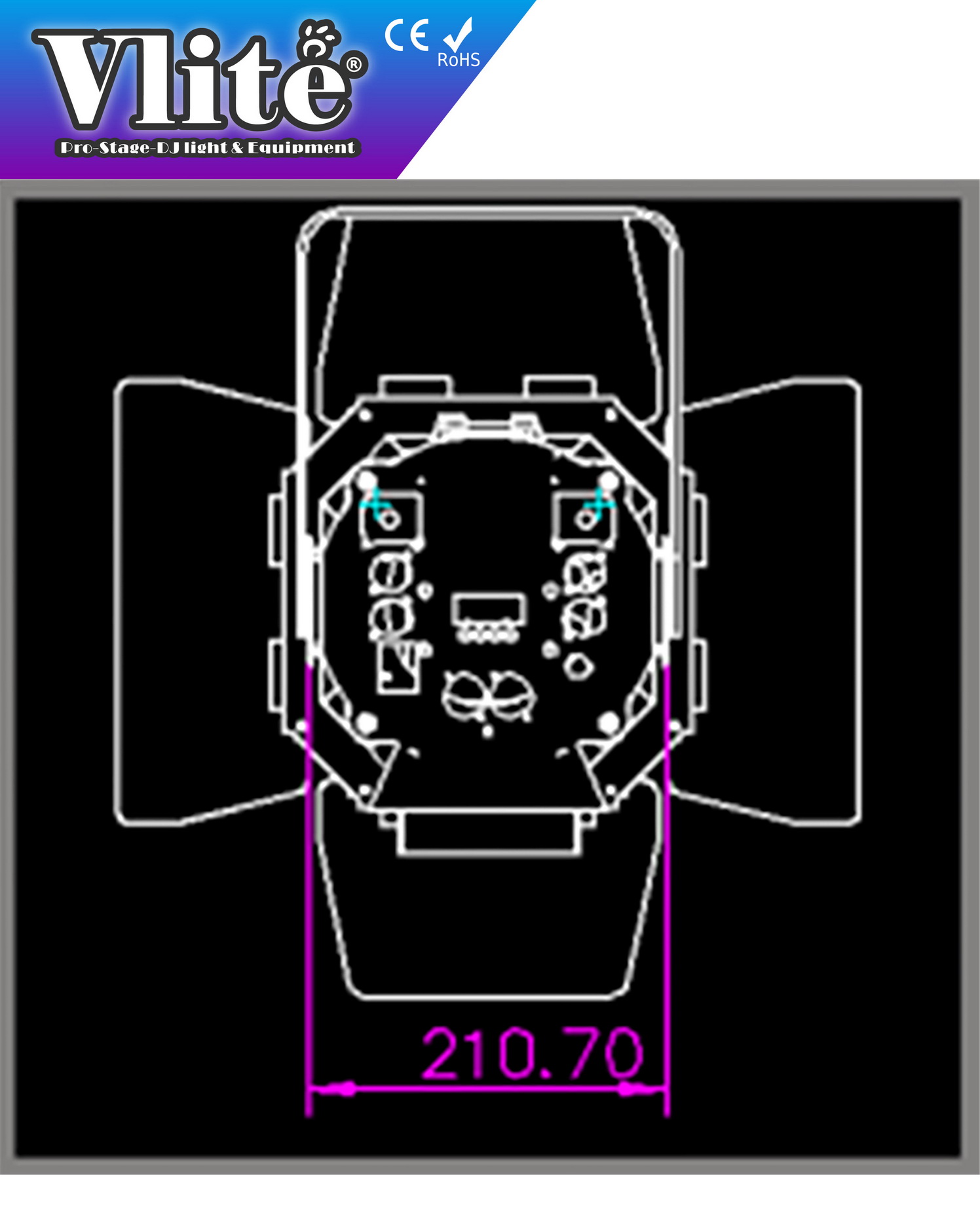

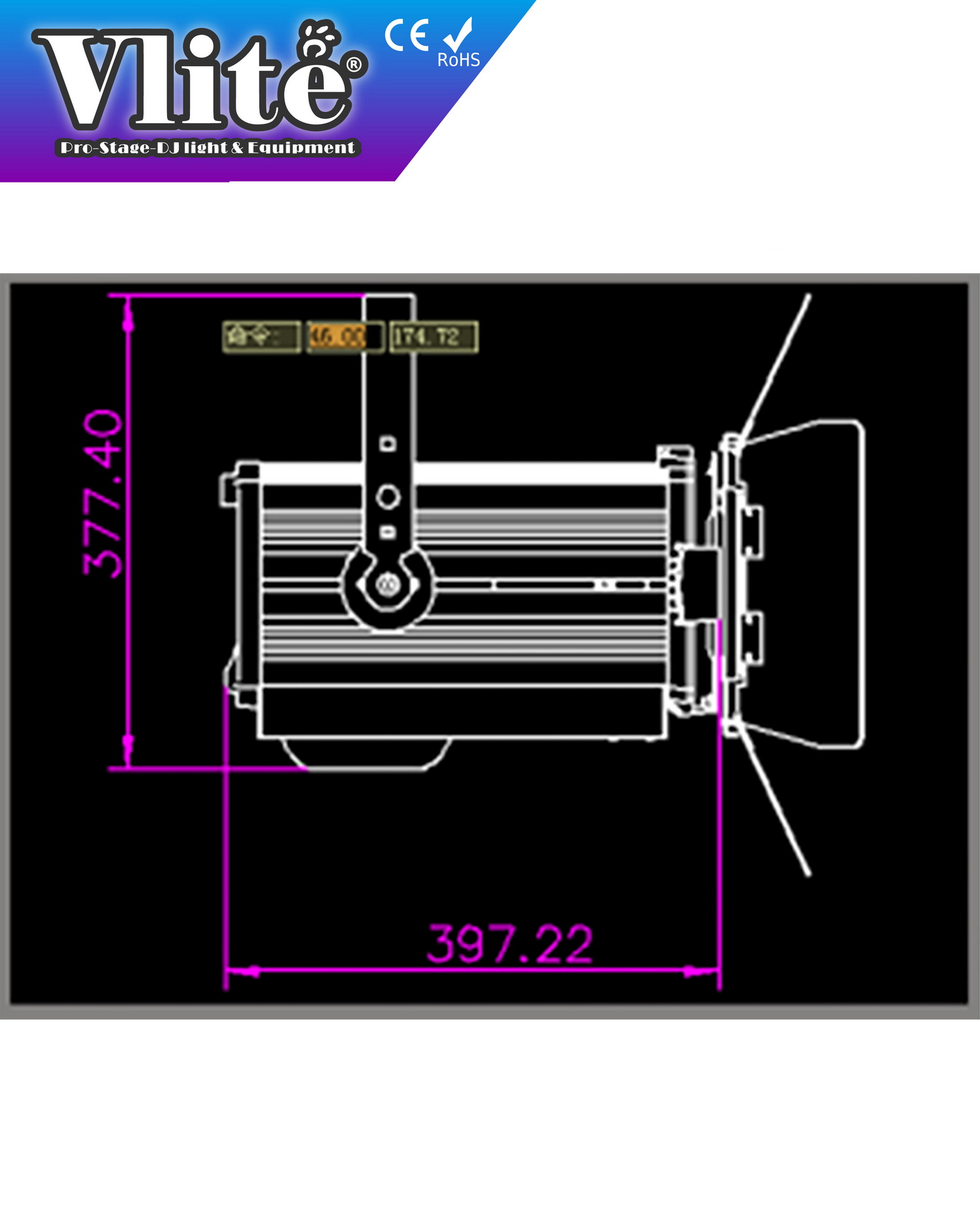

Dimension & Size

* Net Weight: 10.3 KG

* Product Size: 58.0cm(L) X 32.5cm(W) X 32.0cm(H)
