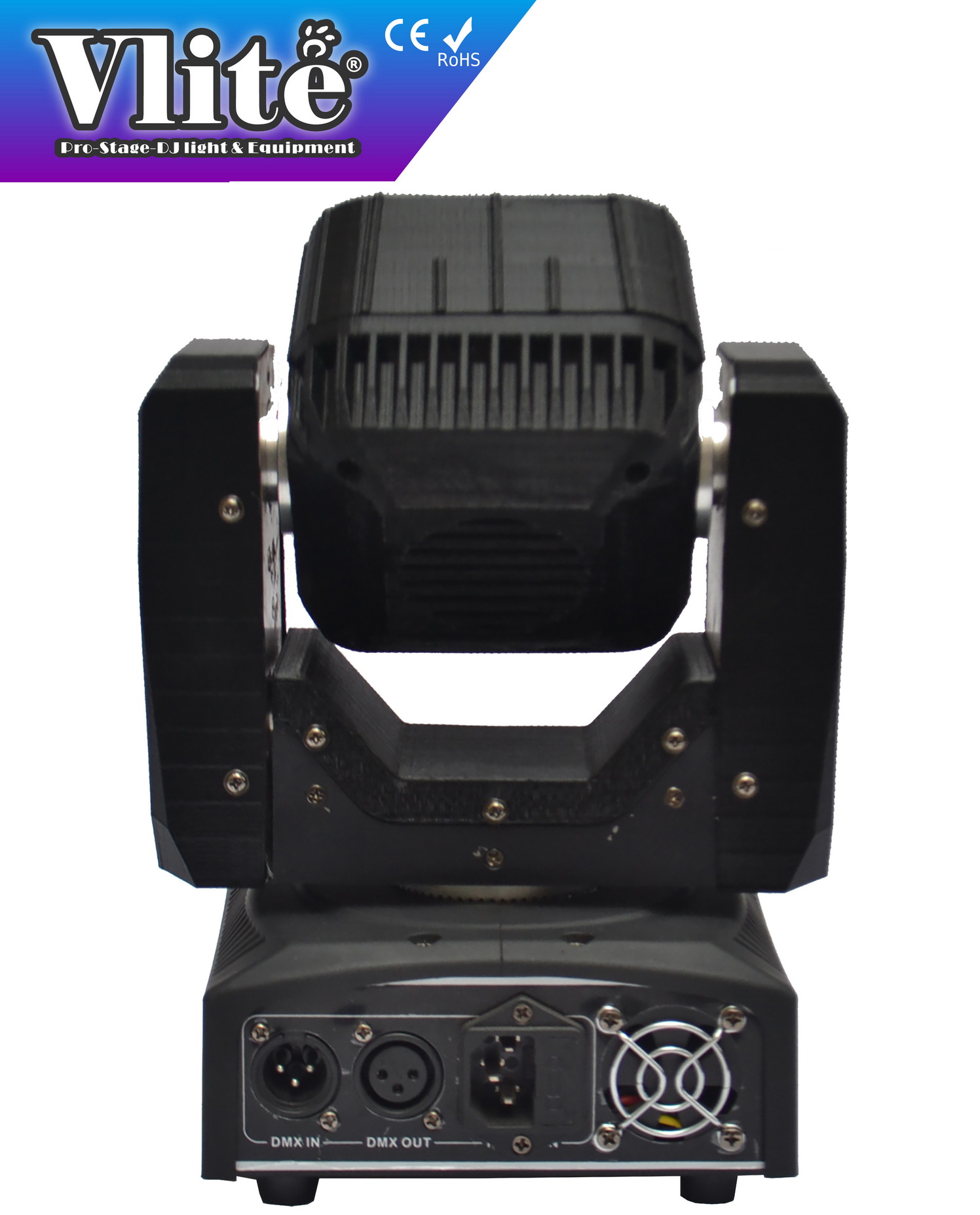

Mini Slim Moving Matrix Beam Quad 4 x 15W

Slim Moving Matrix Solid Beam effect, color full wash and pure color mixing


Parameter Introduction


Voltage and Power Consumption

* Voltage: AC100-240V, 50-60HZ

* Light Source: Quad LED 15W(RGBW) x 4 PCS

* Power Consumption: 55W



* 2 Pixels (2LED is one pixel) controllable individual

* Specific high efficiency 8° or 22° optic system (optional)

* Electronic Strobe with various effects

* Pan/Tilt: X axis: 360°+Fine, Y axis: 180°+Fine


Control Mode

* Control Mode: DMX-512, Master/Slaver, Sound-activated, Auto mode

* Channel: 14/21CH

* Display: LCD Display

* Great built-in lighting show under Master/Slave mode

* 8 internal programs, sound-active can be control by DMX-512



* Protection Level: IP20


Dimension & Size

* Net Weight: 3.0 KG

* Gross Weight: 4.0 KG

* Product Size: 15.0cm(L) X 19.0cm(W) X 24.0cm(H)

* Packing Size: 28.0cm(L) X 21.0cm(W) X 26.0cm(H) (1 PC)

* Packing Size: 44.0cm(L) X 30.0cm(W) X 28.0cm(H) (2 PCS)

* Packing Size: 59.0cm(L) X 44.0cm(W) X 28.0cm(H) (4 PCS)
