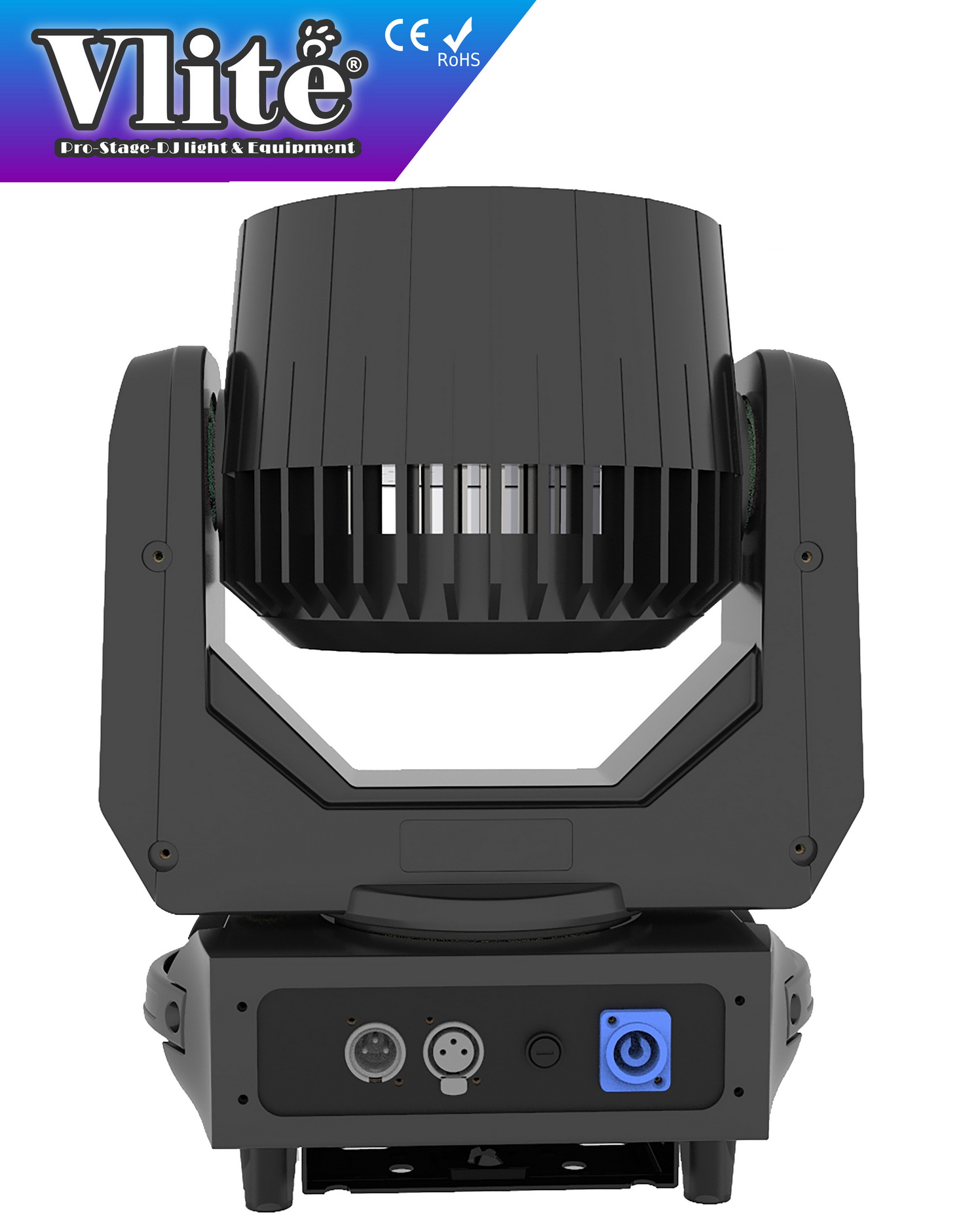

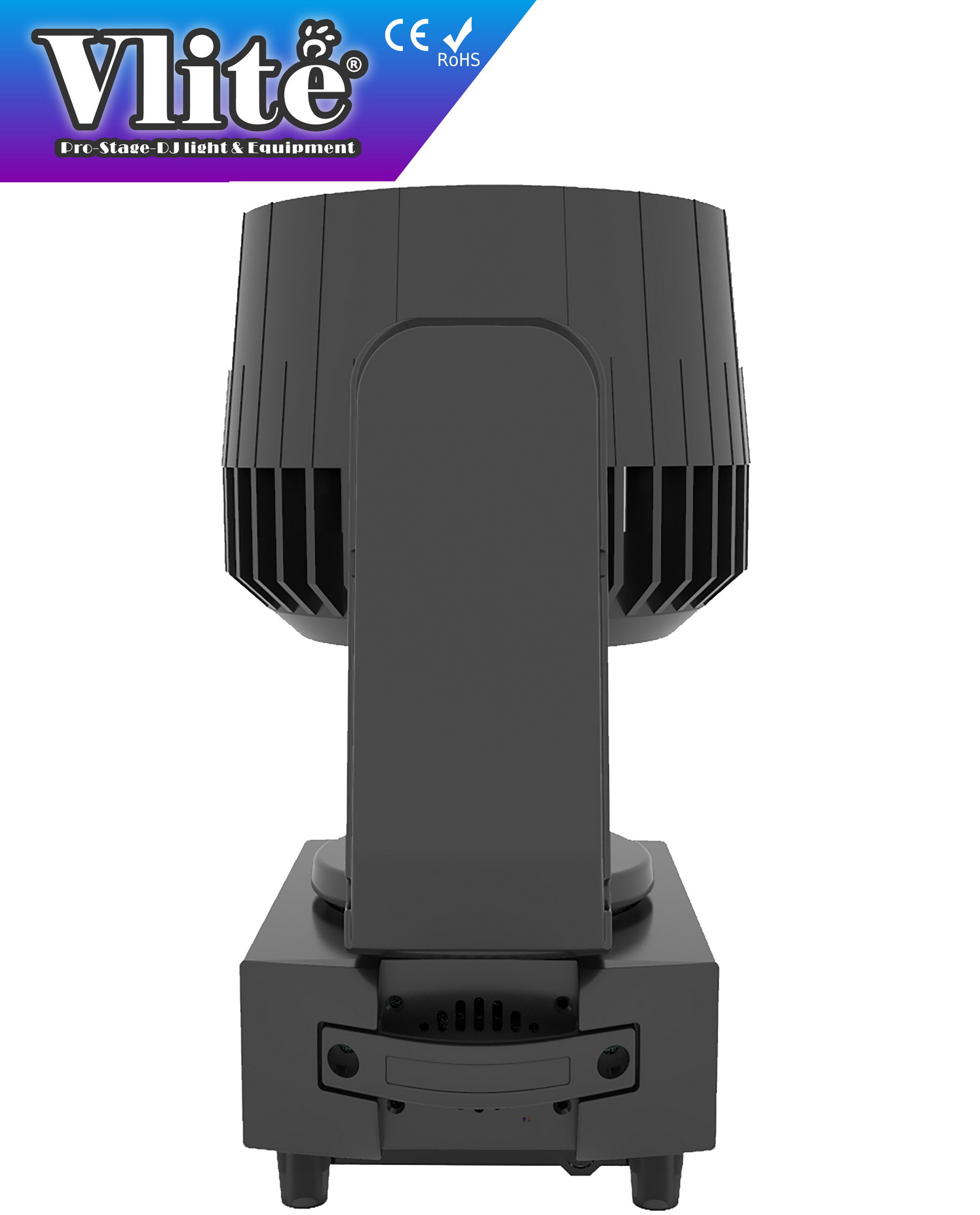

MQ1930 - 19 x 30W RGBW Quad LED Moving Wash Zoom

19 x 30W RGBW Quad LED Moving Wash Zoom

Parameter Introduction

Voltage and Power Consumption

* Voltage: AC90-240V, 50-60HZ

* Light Source: 19 PCS X 3W Luminus LED RGBW 4-IN-1

* Power Consumption: 620W

* Led life-span：50,000hours

Features

* Optical system: High-efficiency optical system，High-precision combined structure，High-
                          transmittance glass rod + PMMA lens

* Zoom Range: 8° ~ 70°

* Movement: Pan 530° and Tilt 270°

* Fine Turning: Extremely accurate positioning, 8- or 16-bit resolution

* Beam Effect: Small angle beam has outstanding effect

* Wash Effect: Medium and large angle the light output spread evenly

* RGBW color mixing system, uniform color mixing without flicker, fast color rainbow effect

* Effect Macro: Static effect and dynamic effect macro function

* Dynamic color micros effect with variable speed

* Linear color temperature 2700K – 7200K

* Color preset with most usuals color

* Strobe: 1-25 Hz electronic strobe and random strobe

* Dimming: Electronic 0-100% dimming

Control Mode

* Control Mode: Built-in light shows in master/slave mode, Stand-alone mode

* DMX-512 Channel: 7/14CH

* Display: On-board manual with Full Color LCD display

* DMX-512 Signal Connector: XLR3 in/out

Structure

* Protection Level: IP20

* Housing Material: The fixture adopts anti-heat plastic and die-cast aluminum accordingly to ISO
                                   international standards and embody the feeling of technical

Dimension & Size

* Net Weight: 7.0 KG

* Gross Weight: 11.0 KG

* Product Size: 33.0cm(L) X 43.0cm(W) X 22.9cm(H)

* Packing Size: 48.0cm(L) X 35.0cm(W) X 44.0cm(H) (1 PC)
