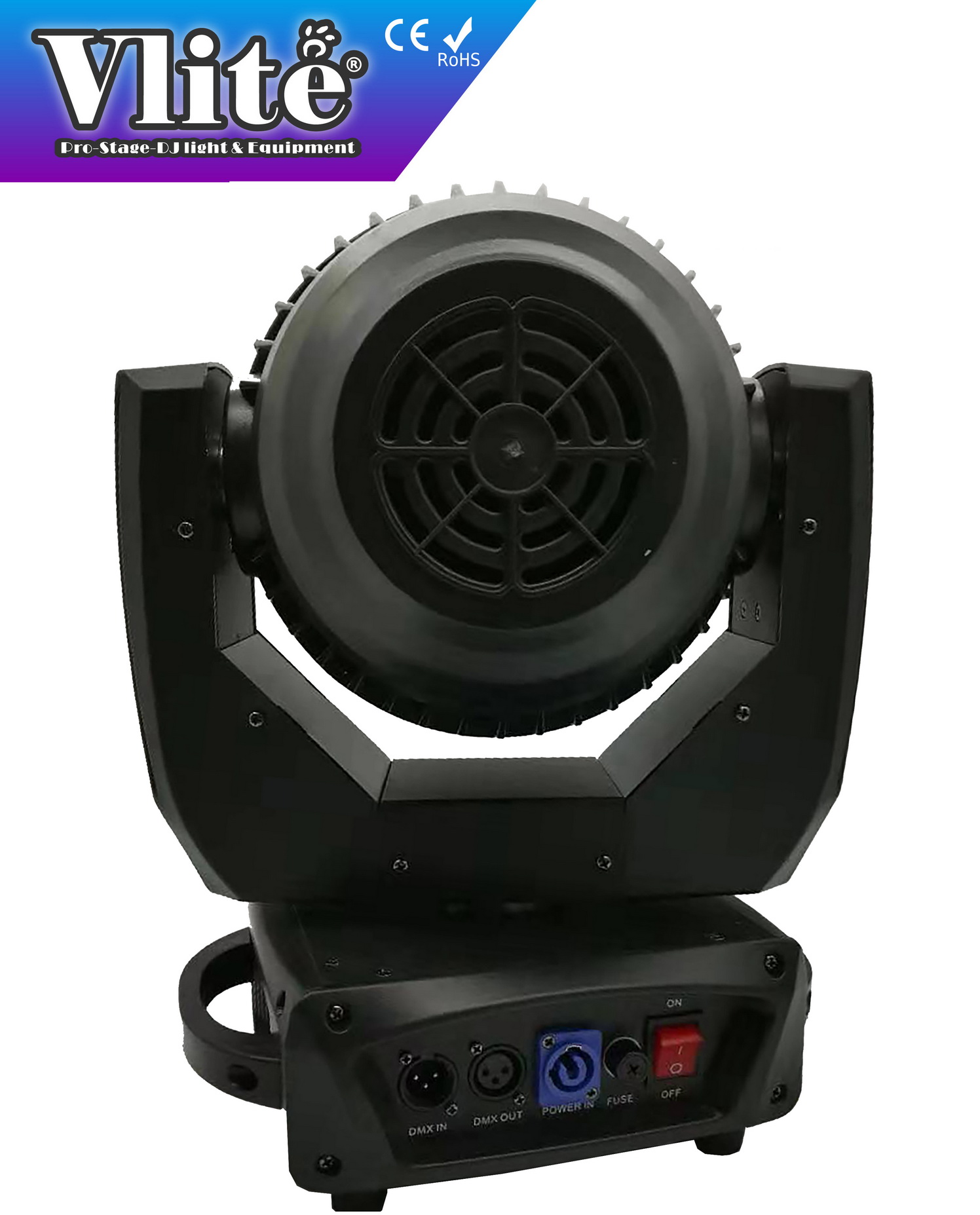

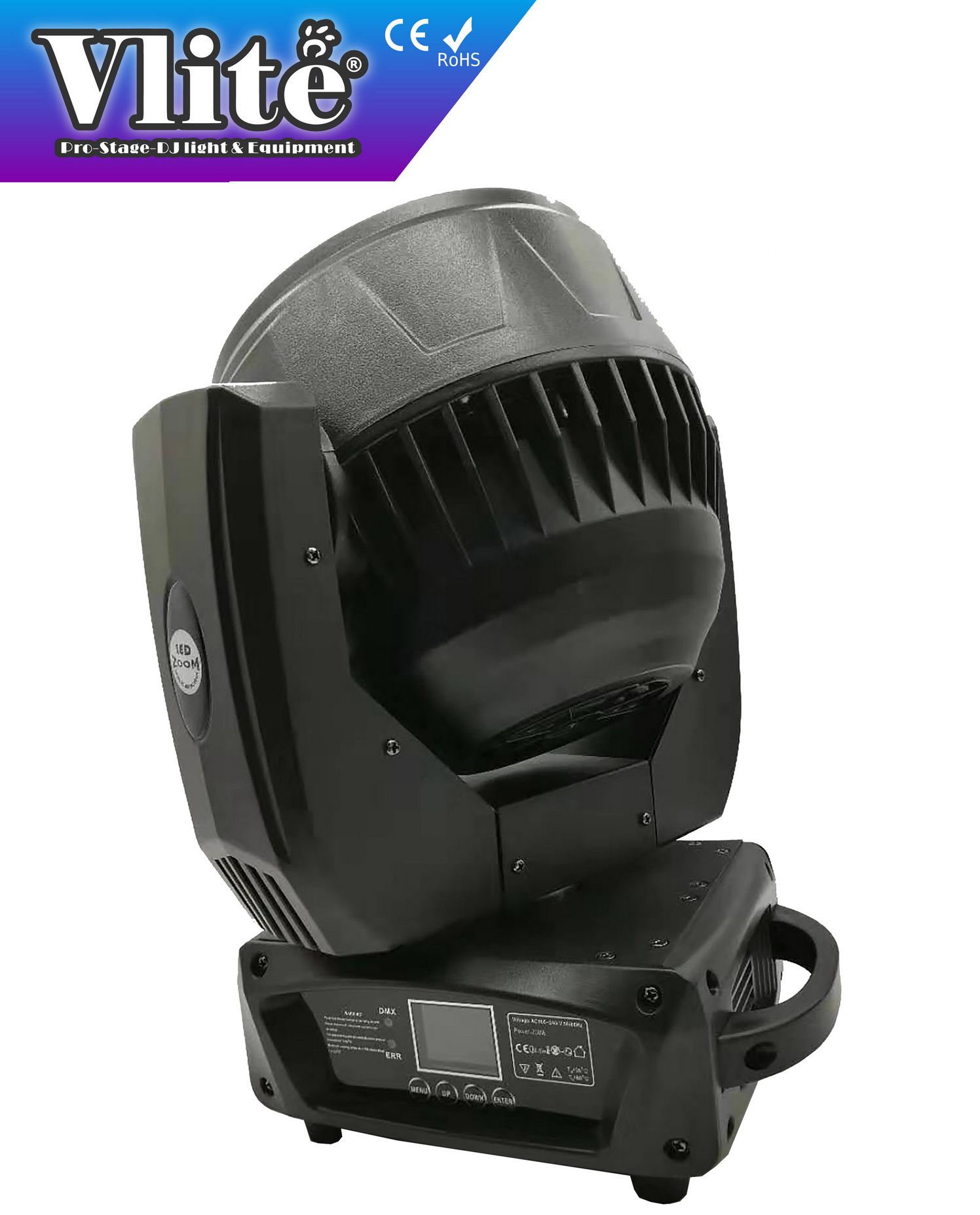

Y19 - 19 X15W ZOOM CIRCLE CONTROL LED MOVING HEAD

19 X15W ZOOM CIRCLE CONTROL LED MOVING HEAD

Parameter Introduction

Voltage and Power Consumption

* Voltage: AC100-240V, 50-60HZ

* Light Source: 19 X15W RGBW LED

* Power Consumption: 220W

Features

Small size, Speed fast, Powerful LED moving head dyeing with ZOOM function

* Zoom Rang: 6°~50°，using optical combination: good color mixing, can project high-definition effects
* Movement: Pan/ Tilt: X axis 540°, Y axis 270°, with automatic correction and positioning;
X, Y-axis operation can be adjusted and fine-tuned, with correction and positioning function,
high accuracy

* Circle Control Function: Various effects
* Dimmer: 0-100% linear dimmer

* Strobe: Strobe speed (1-30 times / second), full linear dimming and variable strobe speed

* Application: Perfect stage effects, theater, TV studio, rental and discotheque s

Control Mode

* Control Mode: DMX512, Master-slave, Sound-activated or Auto mode

* Channel: 16/24CH

Structure

* Display: Color LCD 650,000 color TFT interface, easy to operate, beautiful interface, interface can be 180°
reverse display

* Protection Level: IP20

Dimension & Size

* Net Weight: 7.55 KG

* Gross Weight: 9.00 KG
