MM-BQ2512-L

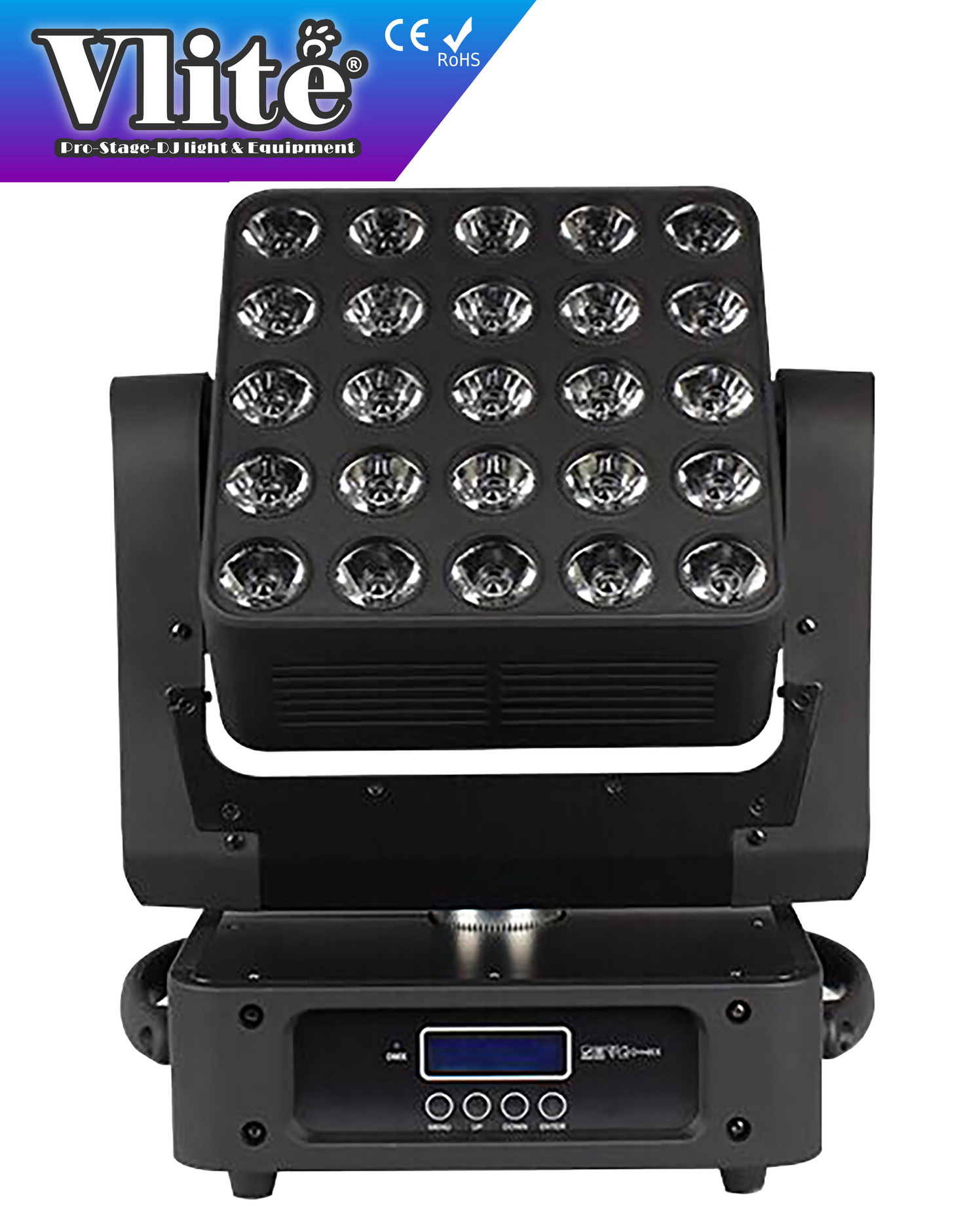

5 x 5 Matrix LED Moving Head

Dynamic color macro change effect through any 16-bit resolution operation



Parameter Introduction



 Voltage and Power Consumption


* Voltage: AC100-240V, 50-60HZ

* Light Source: CREE RGBW LED 25*12 watts, Fresnel lens

* Power Consumption: 450W



Features


* Beam Angle: 8°

* Each LED can be controllable individual

* Movement: Infinite rotation

* Strobe: Adjustable Strobe Speed

* Application: concerts, clubs, stages



Control Mode


* DMX-512 channel: 19/29/117CH

* DMX-512 signal connector: XLR3/XLR5 in/out

* Display: LCD screen with 4 buttons on board manual



Structure


* Protection Level: IP20



* Dimension & Size


* Net Weight: 23.0 KG

* Gross Weight: 24.5 KG

* Product Size: 38.74cm(L) X 38.74cm(W) X 48.26cm(H)

* Packing Size: 58.0cm(L) X 43.5cm(W) X 62.5cm(H)
