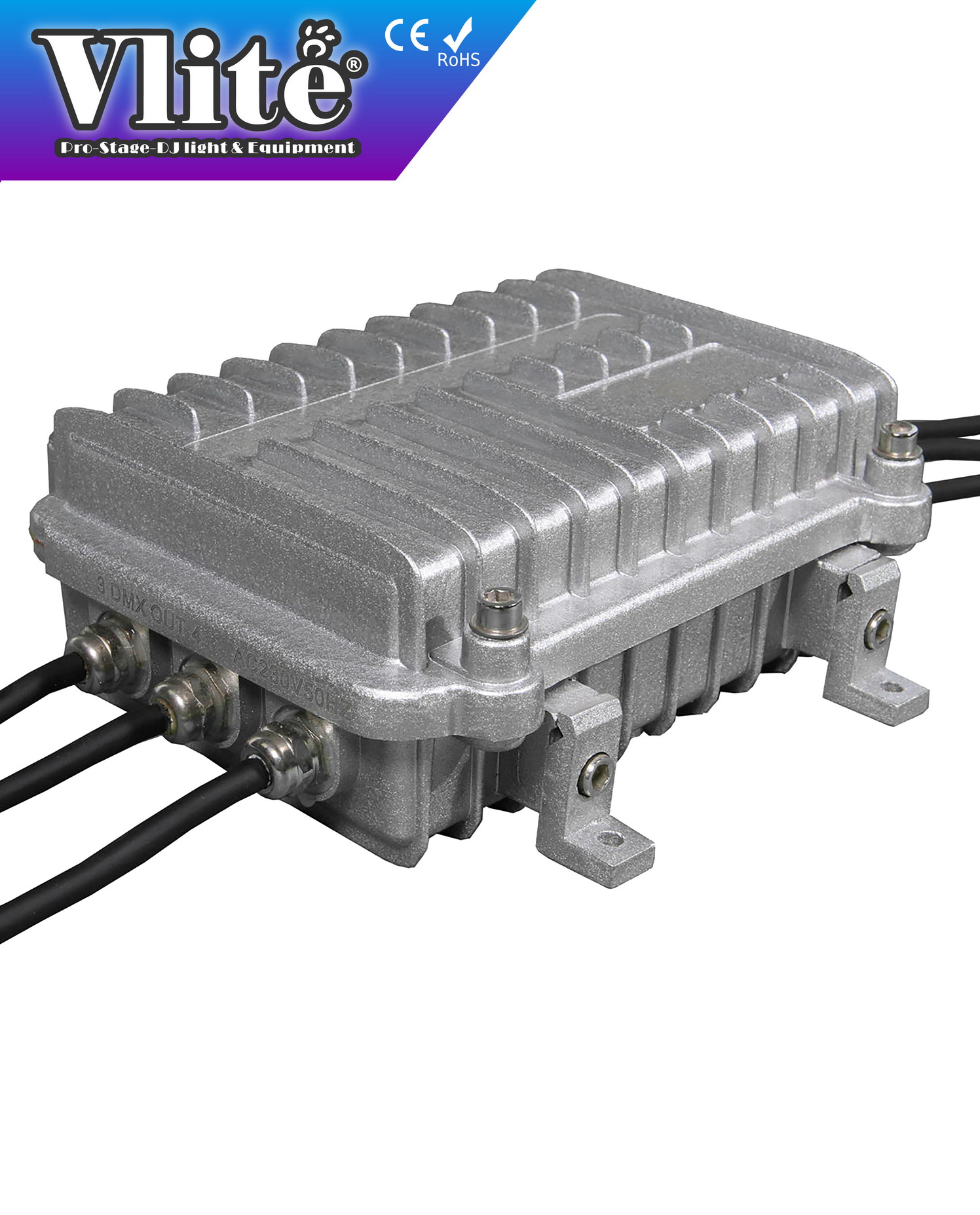

XP-A4-1 - DMX Waterproof Splitter

DMX-4 waterproof signal splitter is designed for outdoor application of light control system. Specially, in distributing and amplifying the DMX512 signal to output in 4 ways.

Adopting high voltage isolation technology in each input port, it’s suitable for amplifying the DMX512 signal after the long-distance transmission and where need complete electrical isolation between in-output interface with output interface.

Due to between the input and the output are completely isolated, so it can avoid burning the precision digital DMX controllers from the control cable broken in the lighting equipment and dimmer pack to ensure the safely running.

At the same time, it also can be sure that there is the enough strong signal transmitted to every lighting equipment so that advanced the reliability of the whole lighting controlling system.

Parameter Introduction

Features

* Power Input: AC90V~240V, 50Hz / 60Hz

* Consumption: 15W

* Digital Signal Type: DMX512, and digital signal transmitted by RS-485 interface

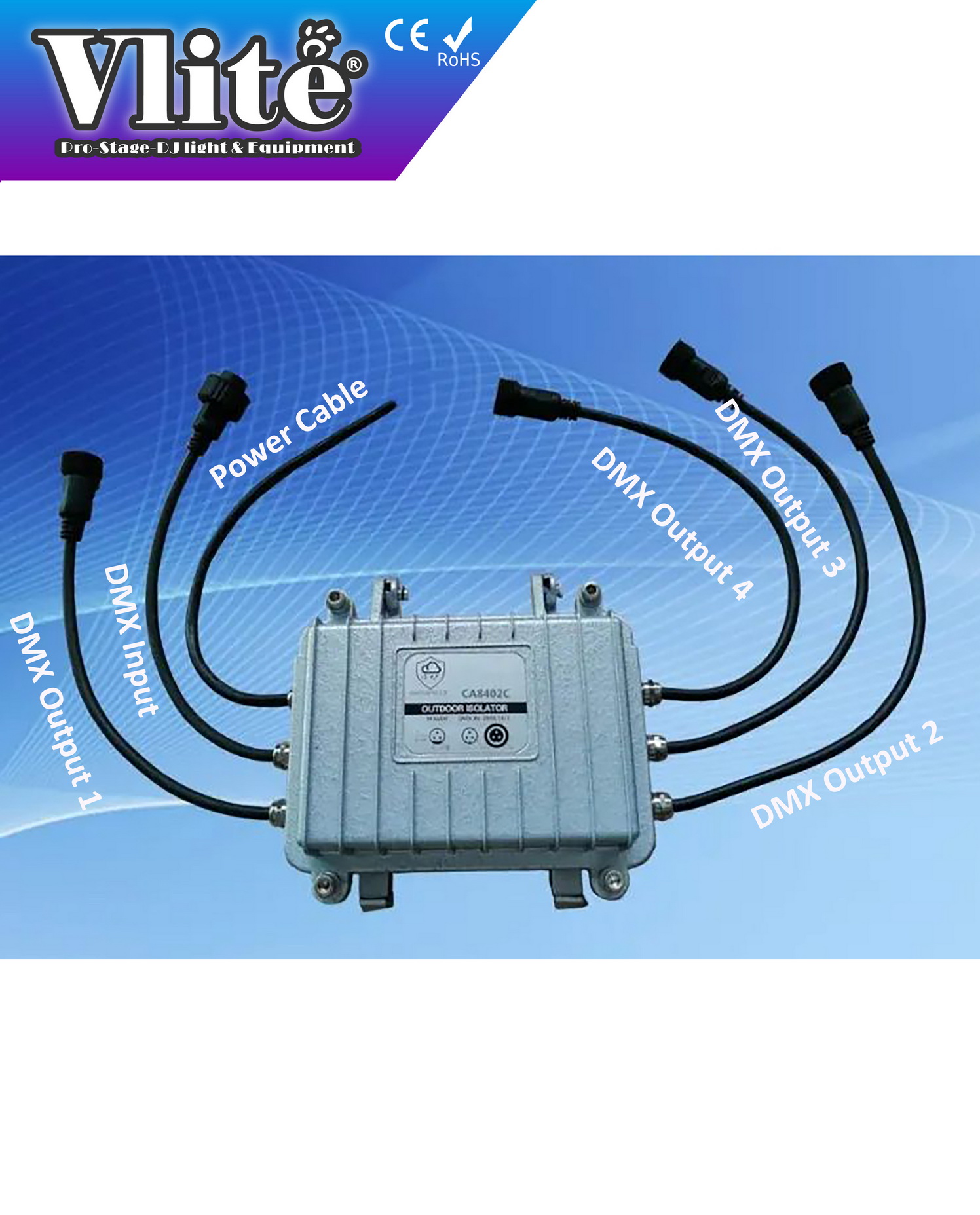

* 1 signal input, 1 direct signal output (there is electrical isolation between the signal input and the direct signal)

* 4 channels of electrical isolation signal distribution output

* Interface Type: RS-485

* Signal Connection Socket: Adopts 3-core shielded waterproof connector

* Housing: Use waterproof and rust-proof cast aluminum chassis

* Electrical isolation withstand voltage from input to output: >AC300V

* Installation Hole Distance: 9.5cm

* Protection Level: IP65

Dimension & Size

* Net Weight: 1.20 KG

* Gross Weight: 1.70 KG

* Product Size: 20.0cm(L) X 19.0cm(W) X 7.5cm(H)

* Packing Size: 33.0cm(L) X 20.0cm(W) X 10.0cm(H)

* Shipping Carton (10 PCS): 41.0cm(L) X 35.0cm(W) X 55.0cm(H); G.W.: 17.7 KG
