XP-A4-2 - Waterproof RDM/DMX512 Signal Distributor

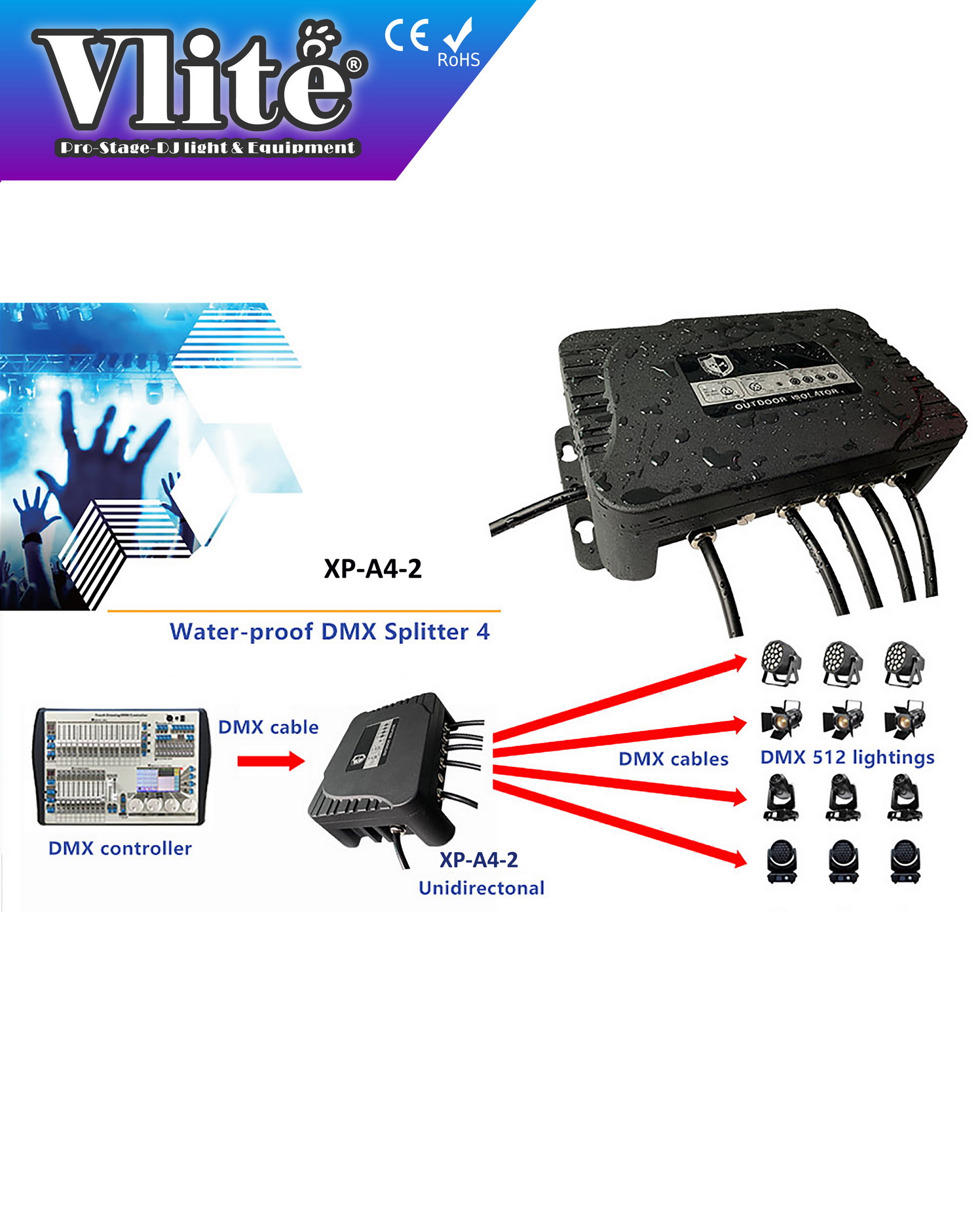

Adopt international standard DMX 512 protocol, it can strengthen, reshape and amplify the DMX signal received, and split it into 4 DMX outputs, so that your controller can control more lighting fixtures

Parameter Introduction

Features


* Power Supply: AC 90 - 240V / 50 - 60 Hz

* Rated Power Consumption: 6W

* 1 DMX inputs, 4 DMX outputs

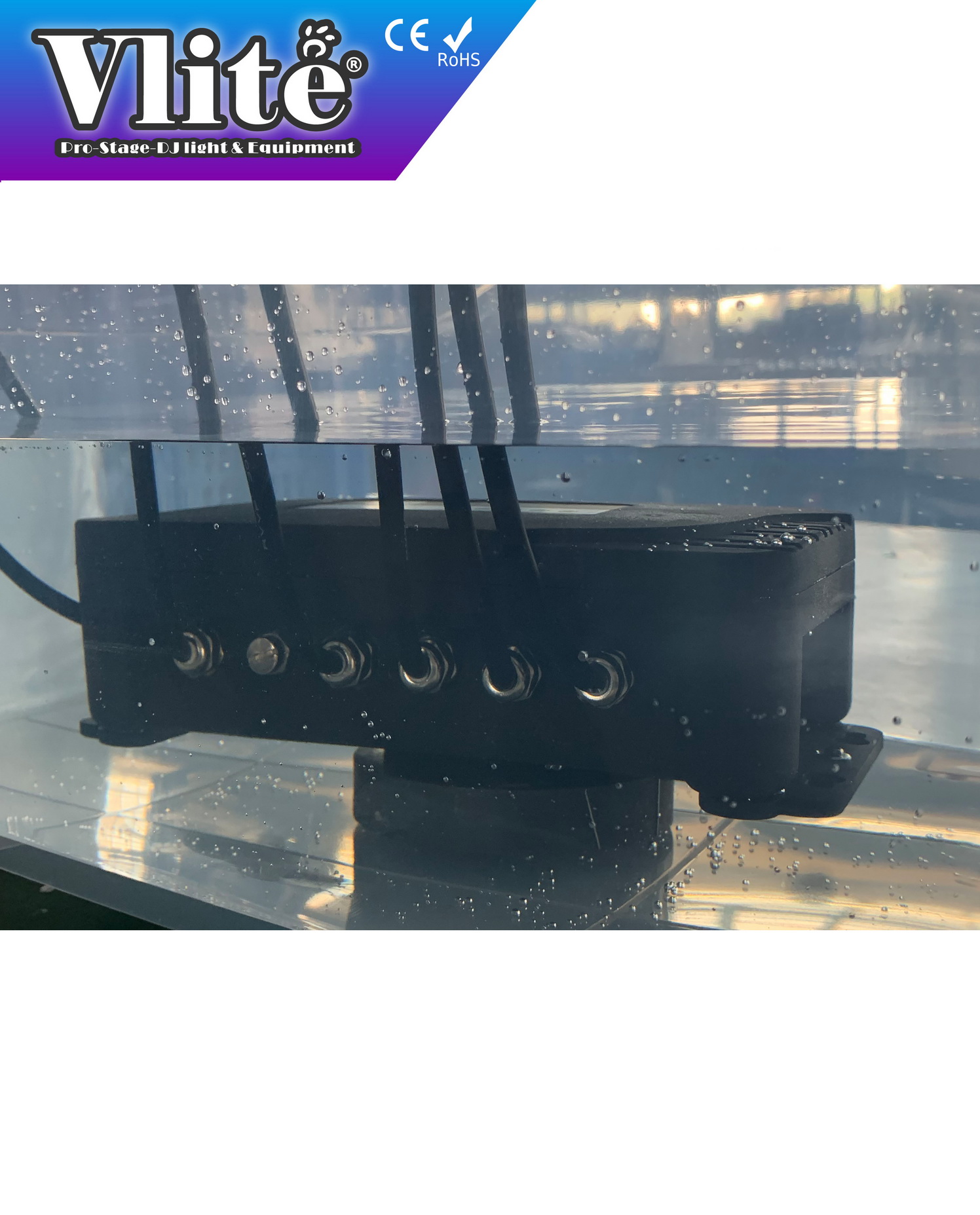

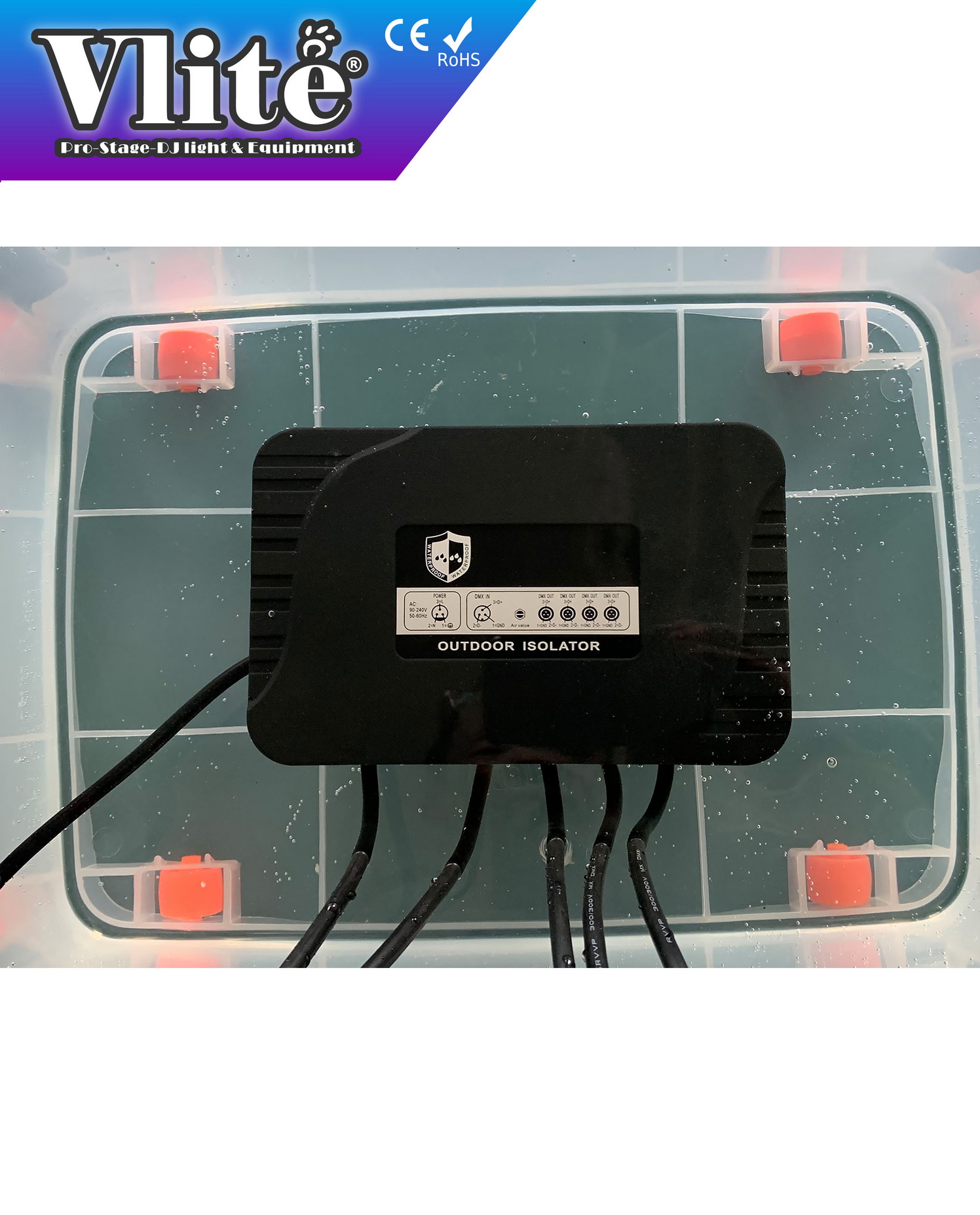

* Water-proof design with unique water-leaking wholes. In case water came in, it will quickly flow outwards without damaging your device

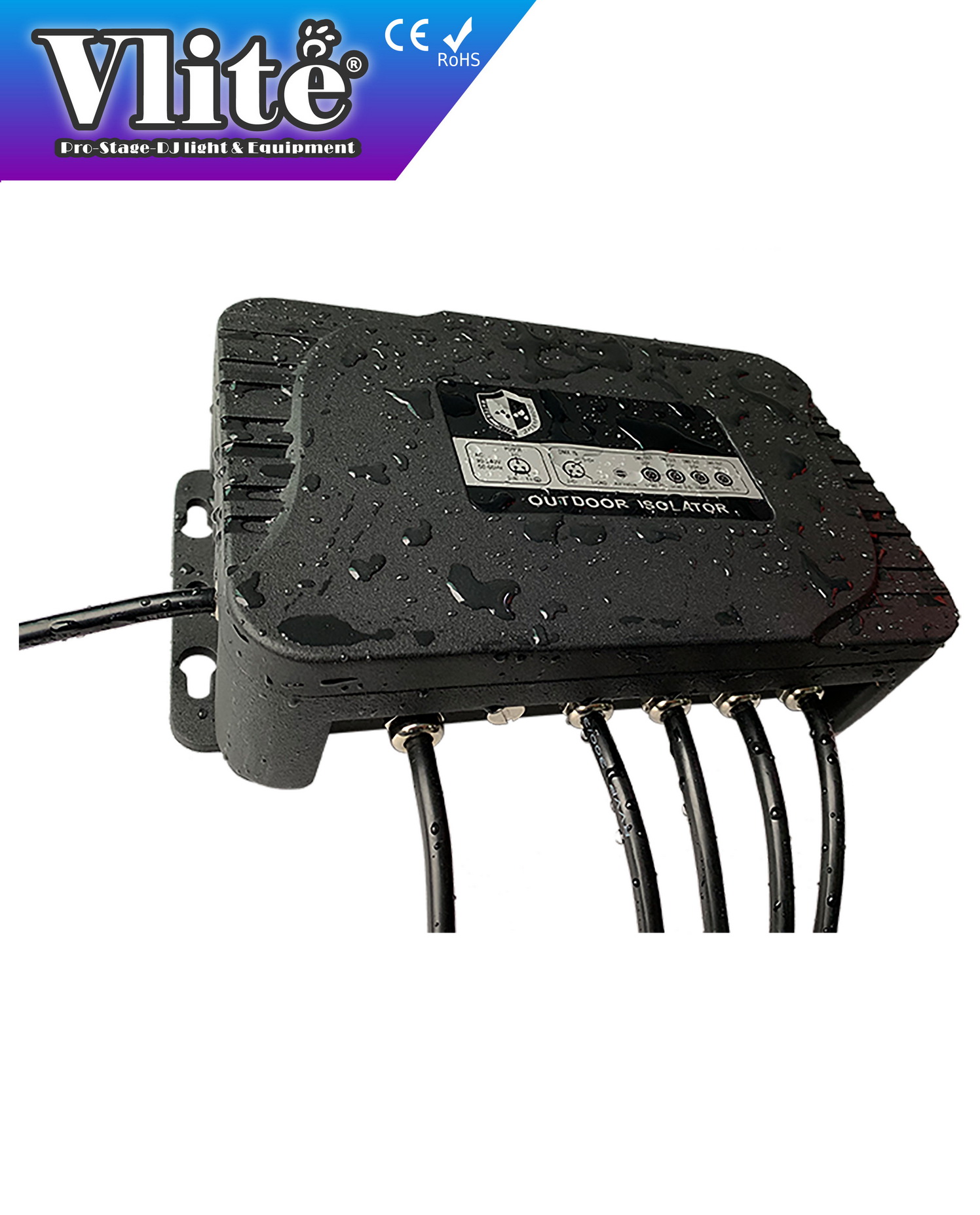

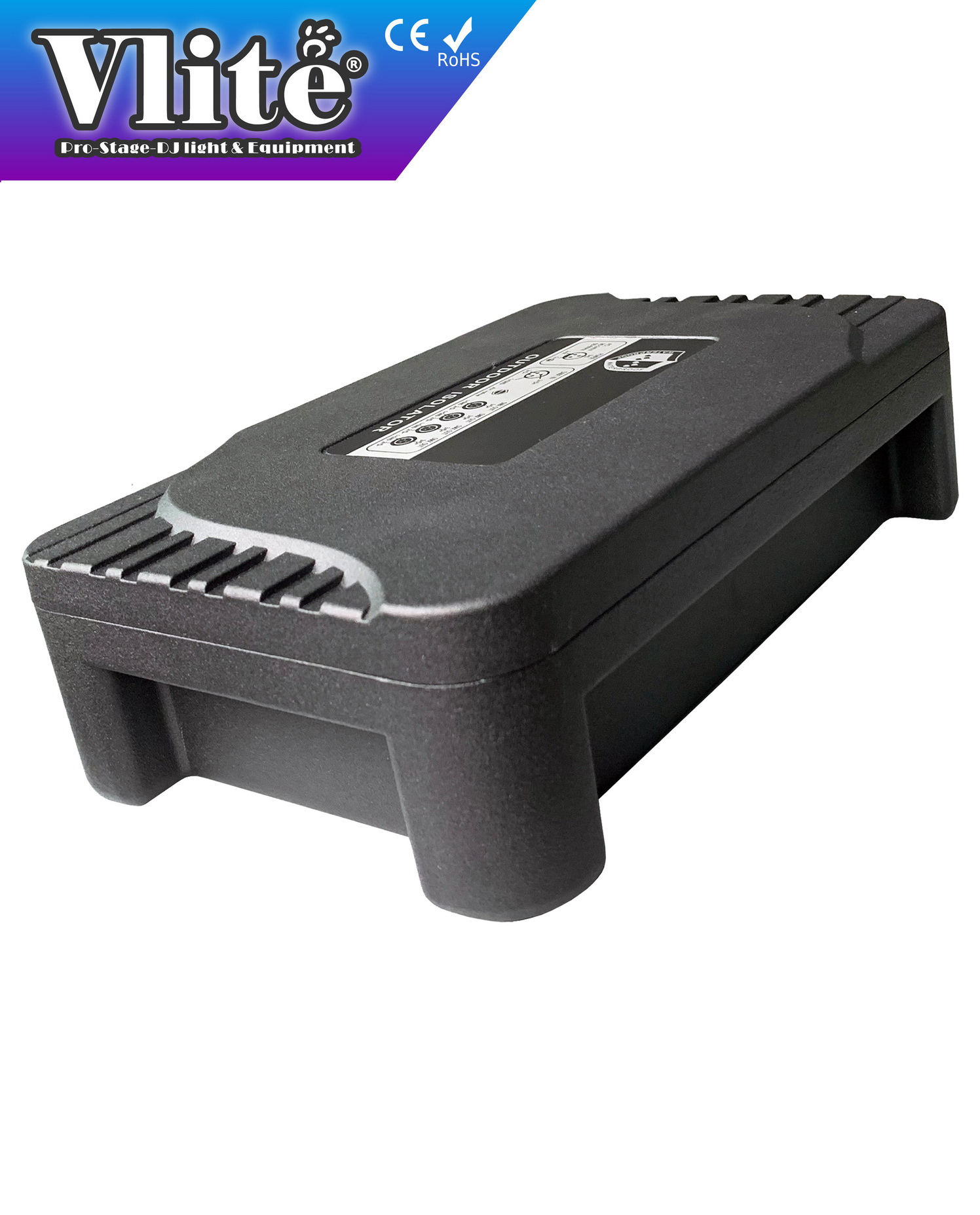

* Aluminum die-cast housing for excellent outlook and better heat dissipation, as well as better water-proof structure. All power cable, DMX input and output signal cables can be with water-proof connectors, DMX signal cables it used are professional shielded wires

* Optoelectronic Isolation Voltage-resistant of Input to Output: >AC 300 V

* Independent power supply for the input and outputs, and Complete Optoelectronic Isolation between the input and outputs, so it can protect your precise and previous DMX controller from any possible high-current or high voltage electricity caused by failure from the DMX lighting fixtures, or any other devices in the entire system. It also protects the DMX data from external interference signal, ensures enough signal strength will be distributed to each DMX output, so that the entire control system is safe and reliable

* Maximum lighting fixtures in link of one DMX output is 32 pcs. More than that, use another piece of XP-A4-2.



Dimension & Size


* Net Weight: 1.54 KG

* Gross Weight: 2.10 KG

* Product Size: 22.0cm(L) X 14.0cm(W) X 6.5cm(H)

* Packing Size: 31.5cm(L) X 19.5cm(W) X 10.5cm(H)

* Shipping Carton (10 PCS): 41.0cm(L) X 35.0cm(W) X 55.0cm(H); G.W.: 17.7 KG
