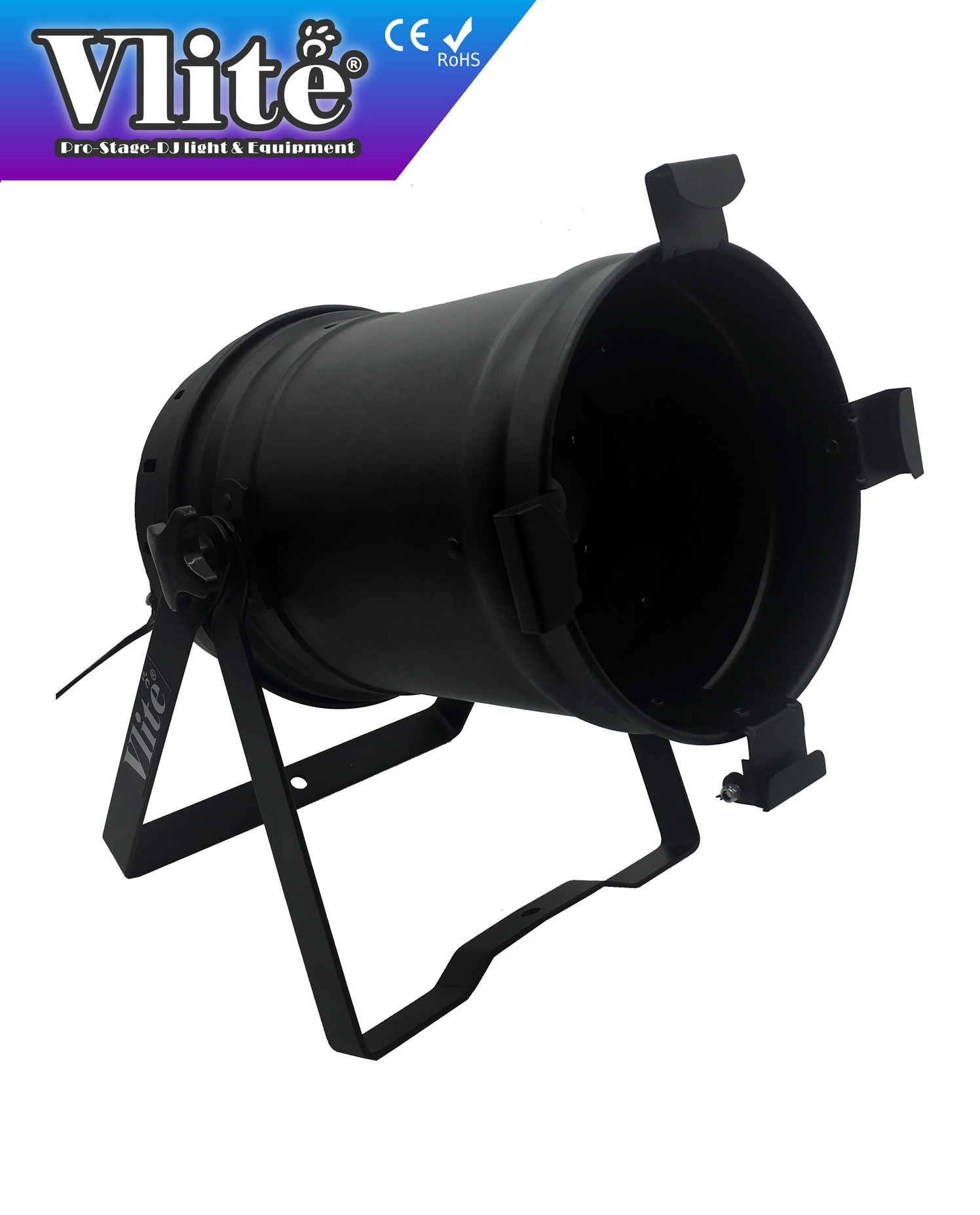

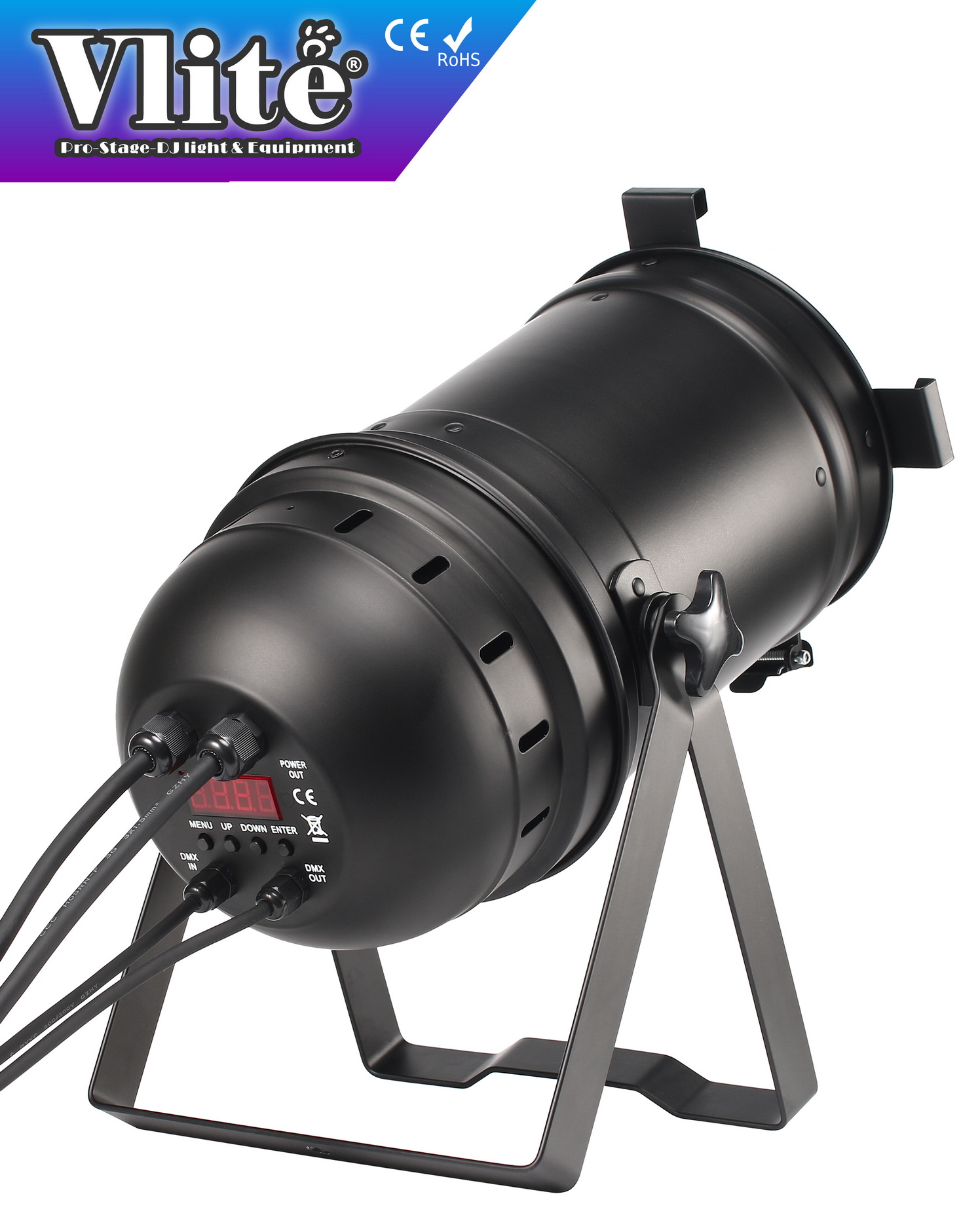

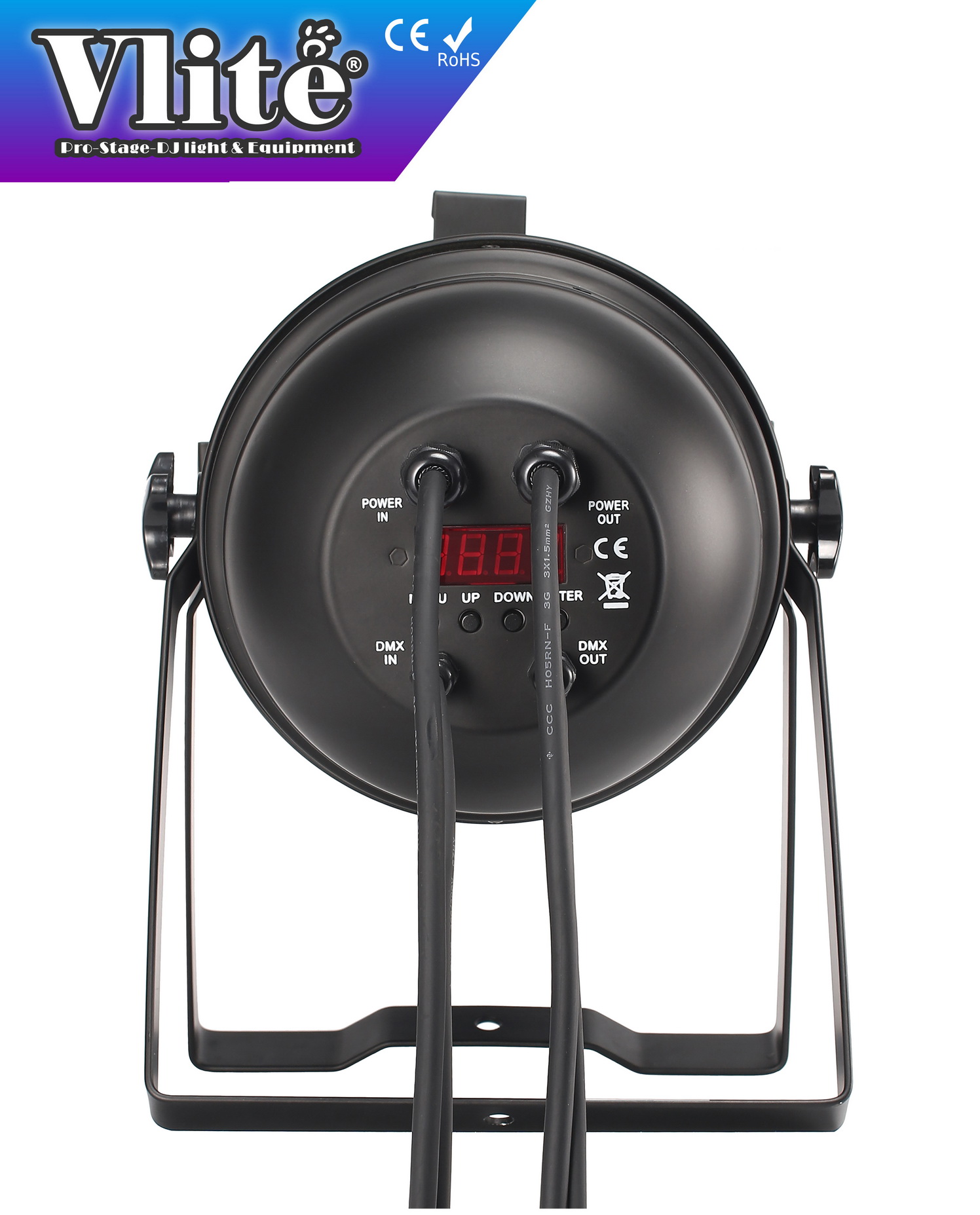

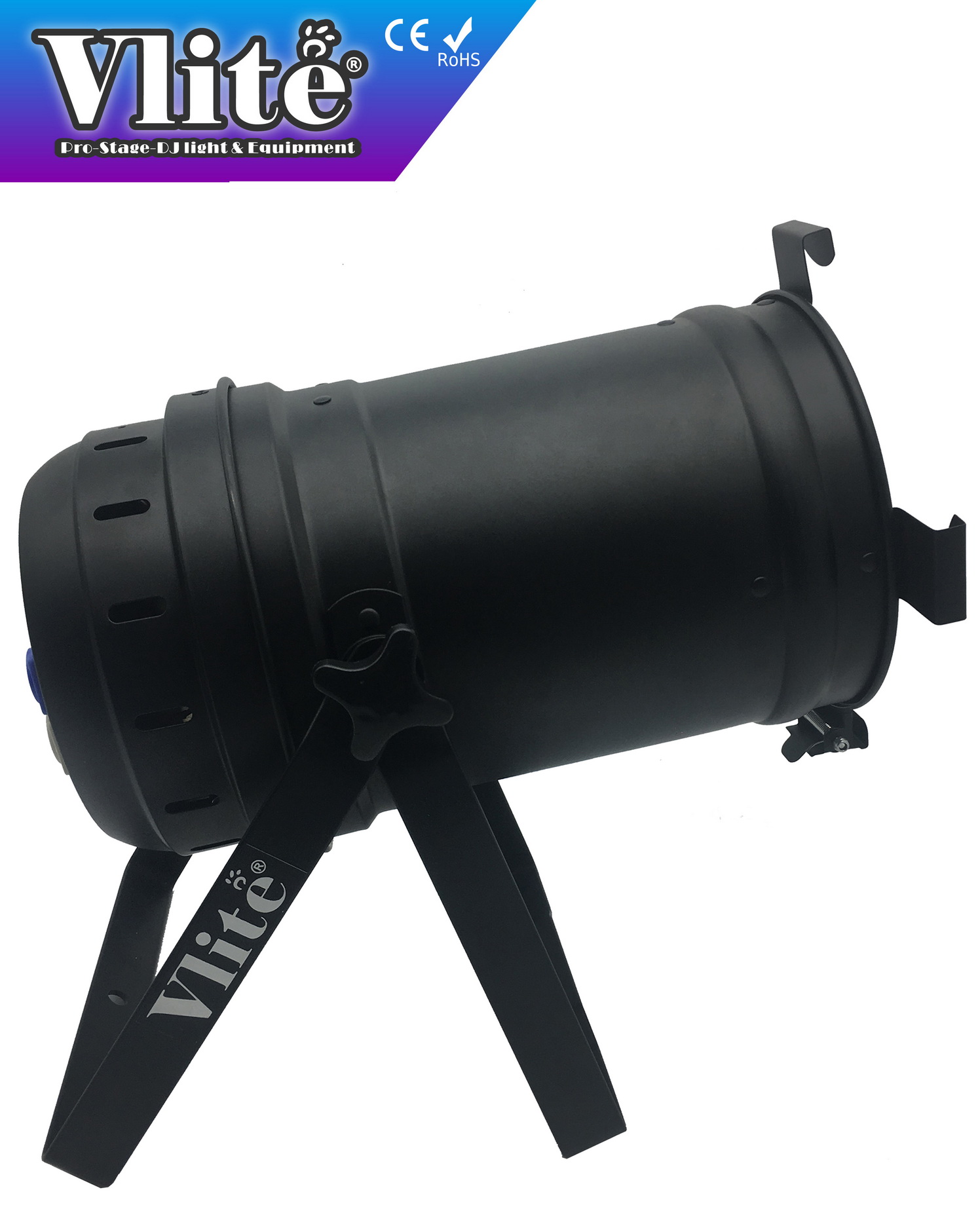

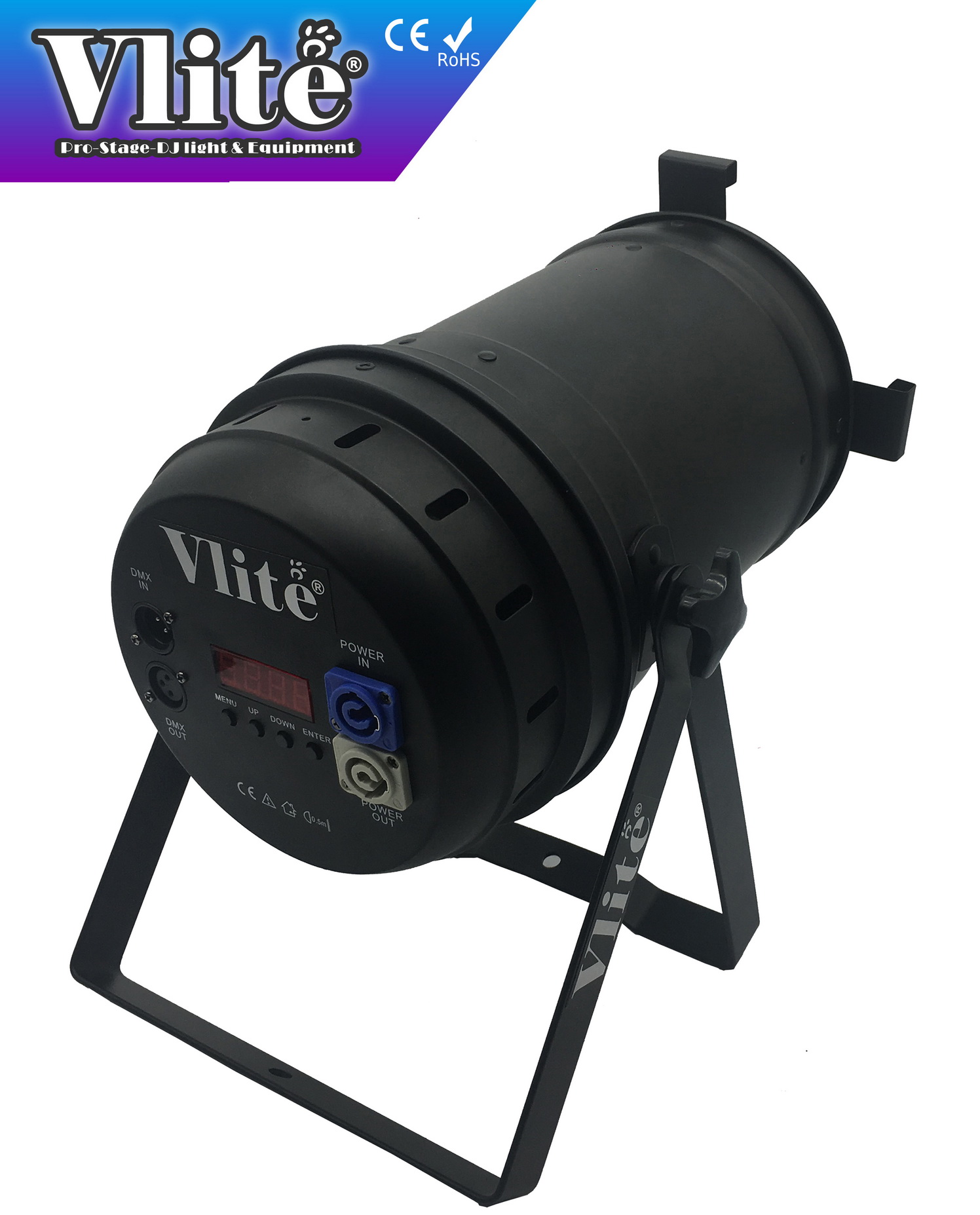

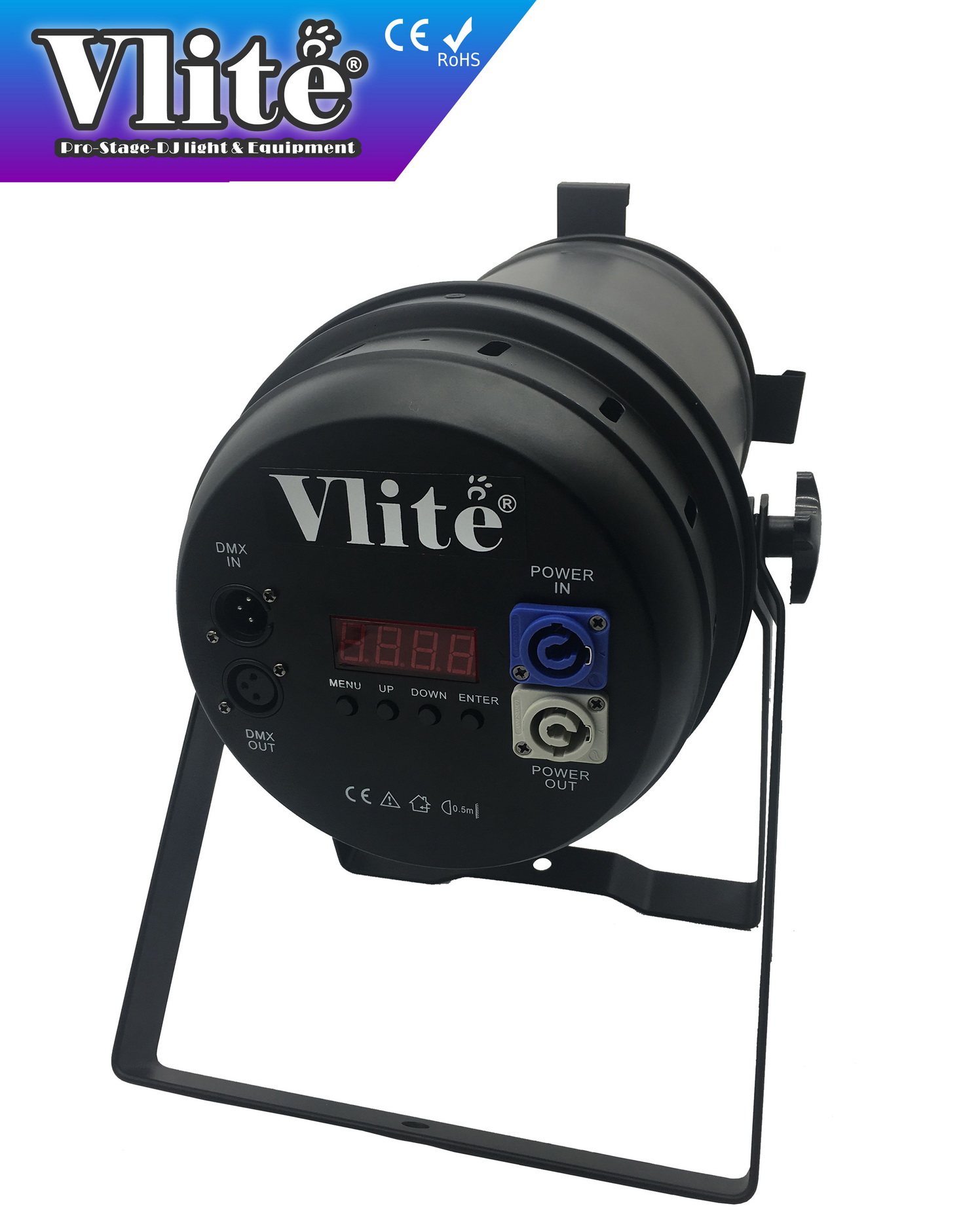

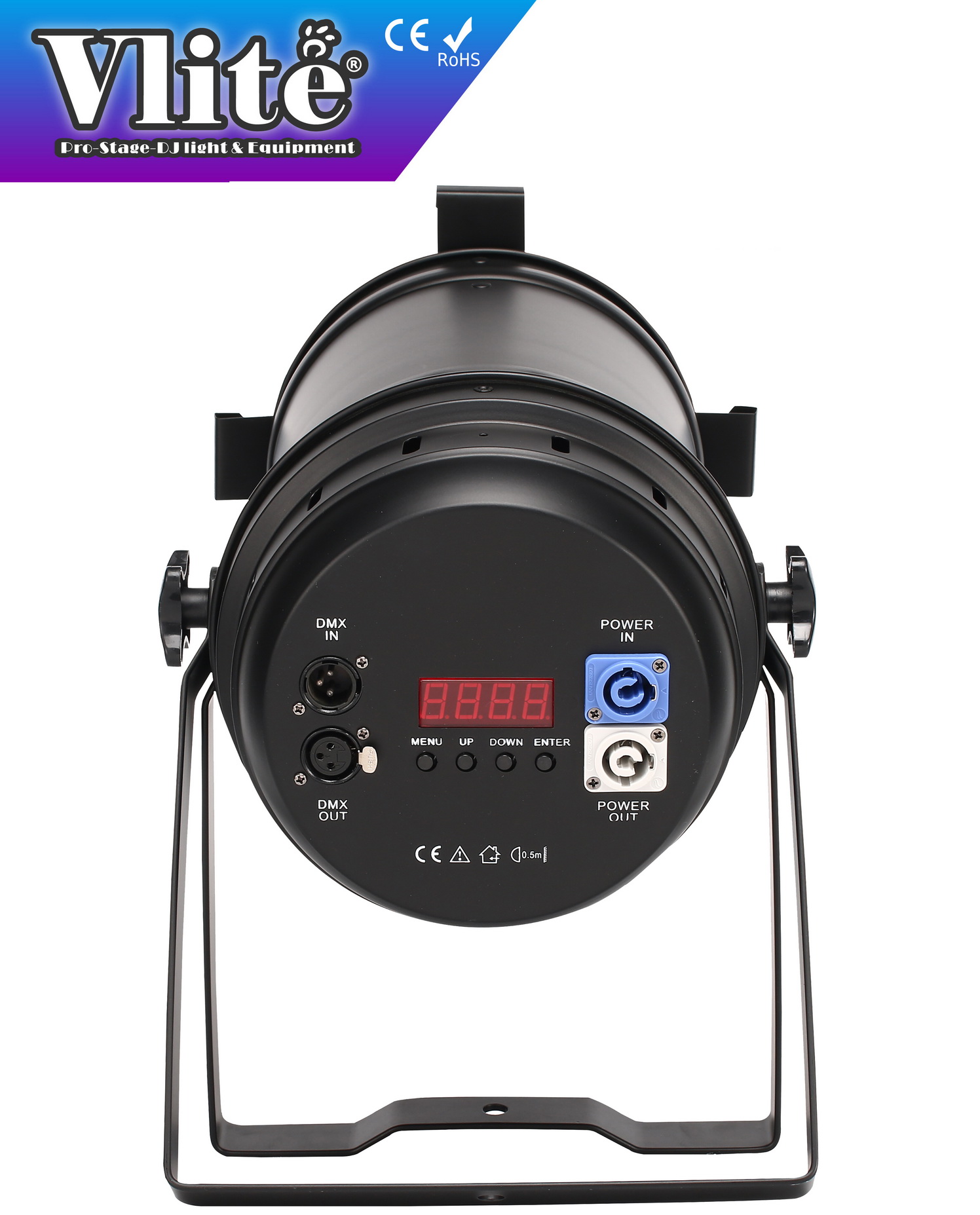

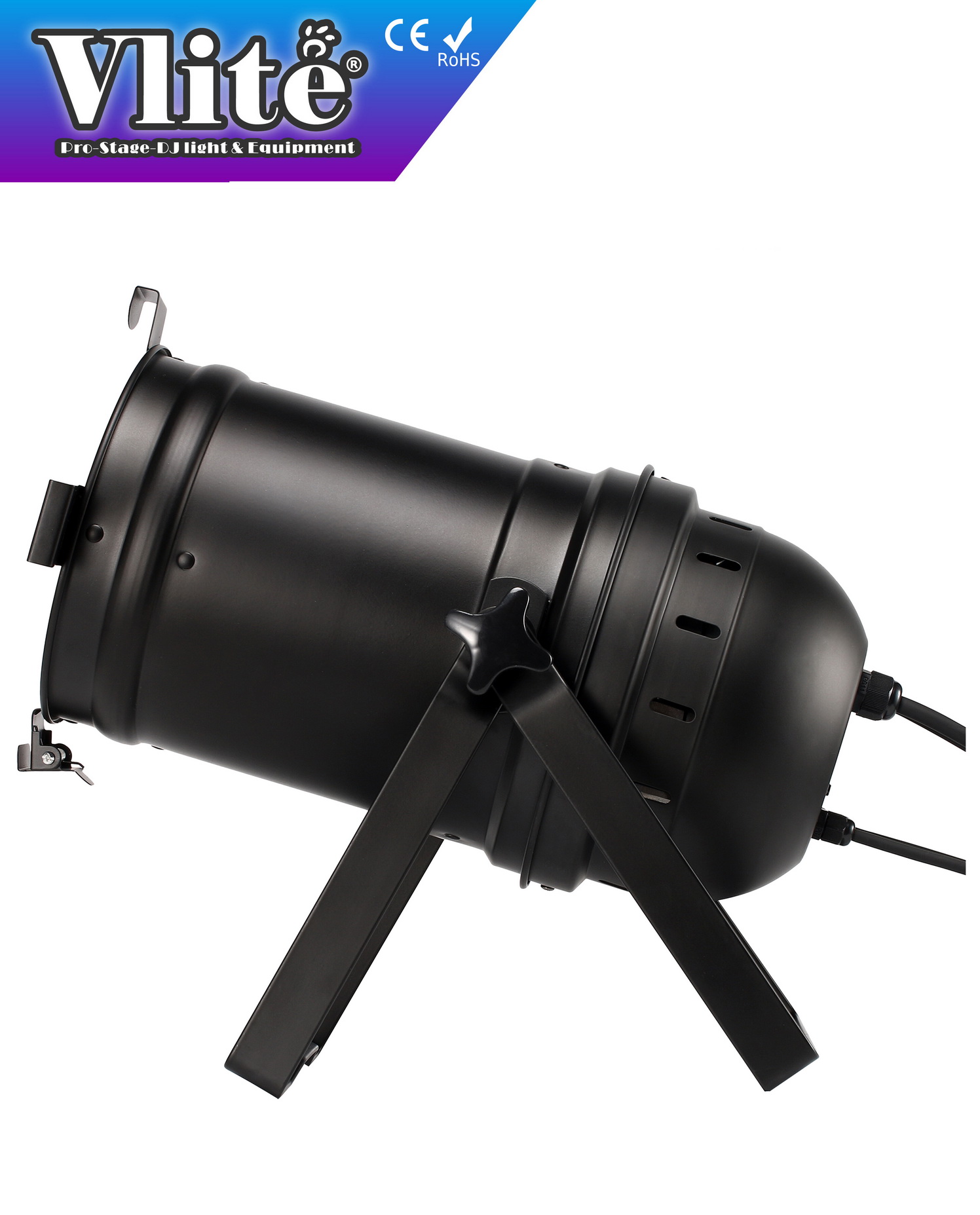

LV-B07 - 200W Two-color Zoom LED PAR Fresnel Lens

200W Two-color Zoom LED PAR Fresnel Lens


Parameter Introduction


Voltage and Power Consumption


* Voltage: AC100-240V, 50/60HZ

* Power Consumption: 200W

* Light Source: China Brand 200W dual color COB LED

* Lifespan: 50000hrs



Features


* Optics: Glass combination lens + Fresnel lens

* Color Temperature: 3000K/6500K

* CRI: >90

* Zoom Range: 10°~ 50°

* Illuminance: 12500LX @ 3meter

* Dimming: 0-100% linear dimming, 4 dimming modes, 4 dimming curves are available

* Strobe: high-speed synchronous strobe function



Control Mode


* Control Mode: DMX512, Master-slave, Auto-run, Sound-activated, Static mode; A variety of built-in effects are optional, simple, and practical

* DMX-512 Channel: 5CH, 6CH, 7CH, 9CH, international standard DMX512 channel



Structure

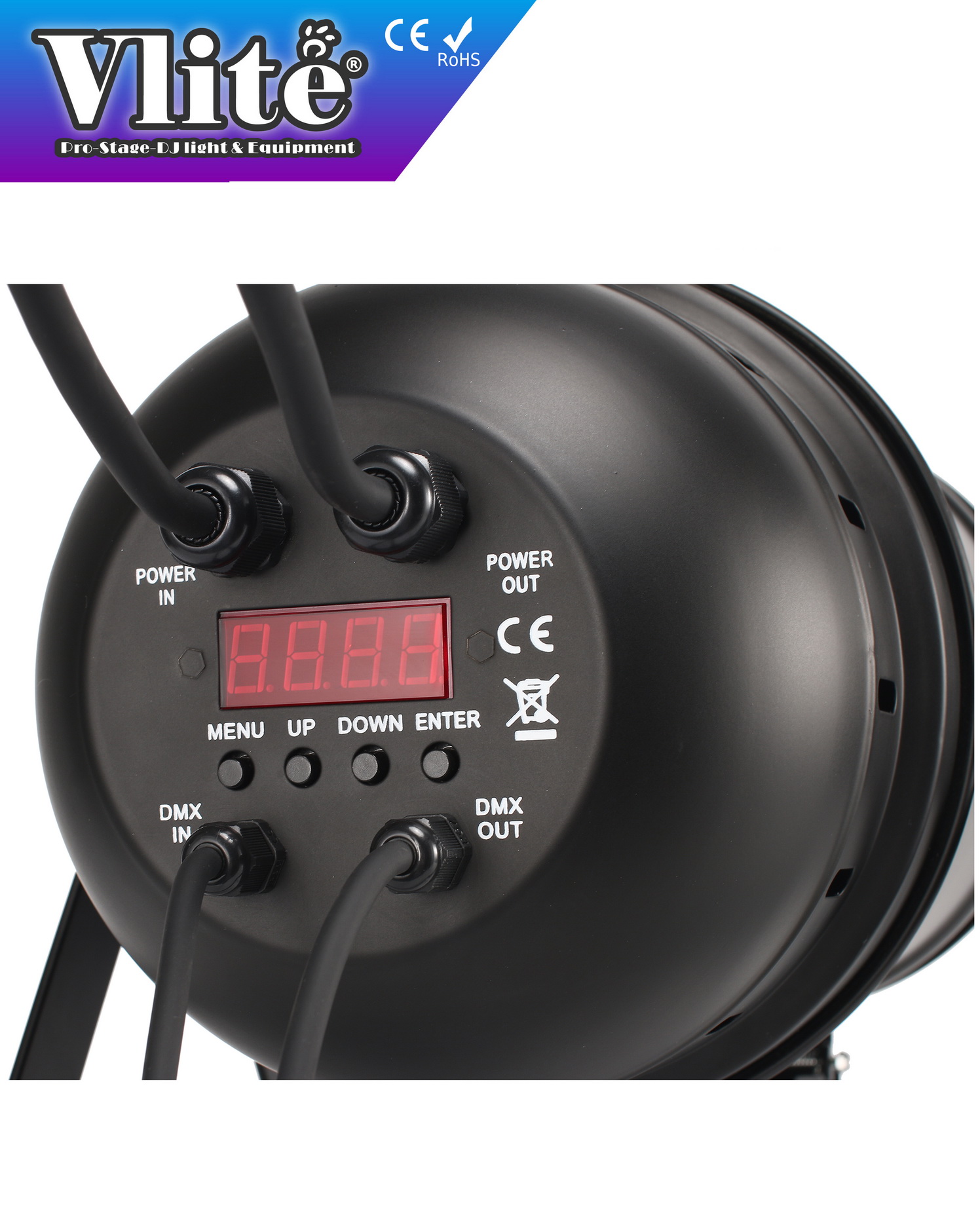

* Display: LCD display

* Protection Level: IP20

* Cooling System: Air cooling + copper tube radiator



Dimension & Size


* Net Weight: 4.50 KG

* Gross Weight: 5.20 KG

* Product Size: 20.0cm(L) x 28.0cm(W) x 39.0cm(H)

* Packing Size: 26.5cm(L) x 26.5cm(W) x 50.0cm(H)

* Shipping Carton (4 PCS): 55.5cm(L) x 55.0cm(W) x 53.0cm(H); G.W.: 21.0 KGS
