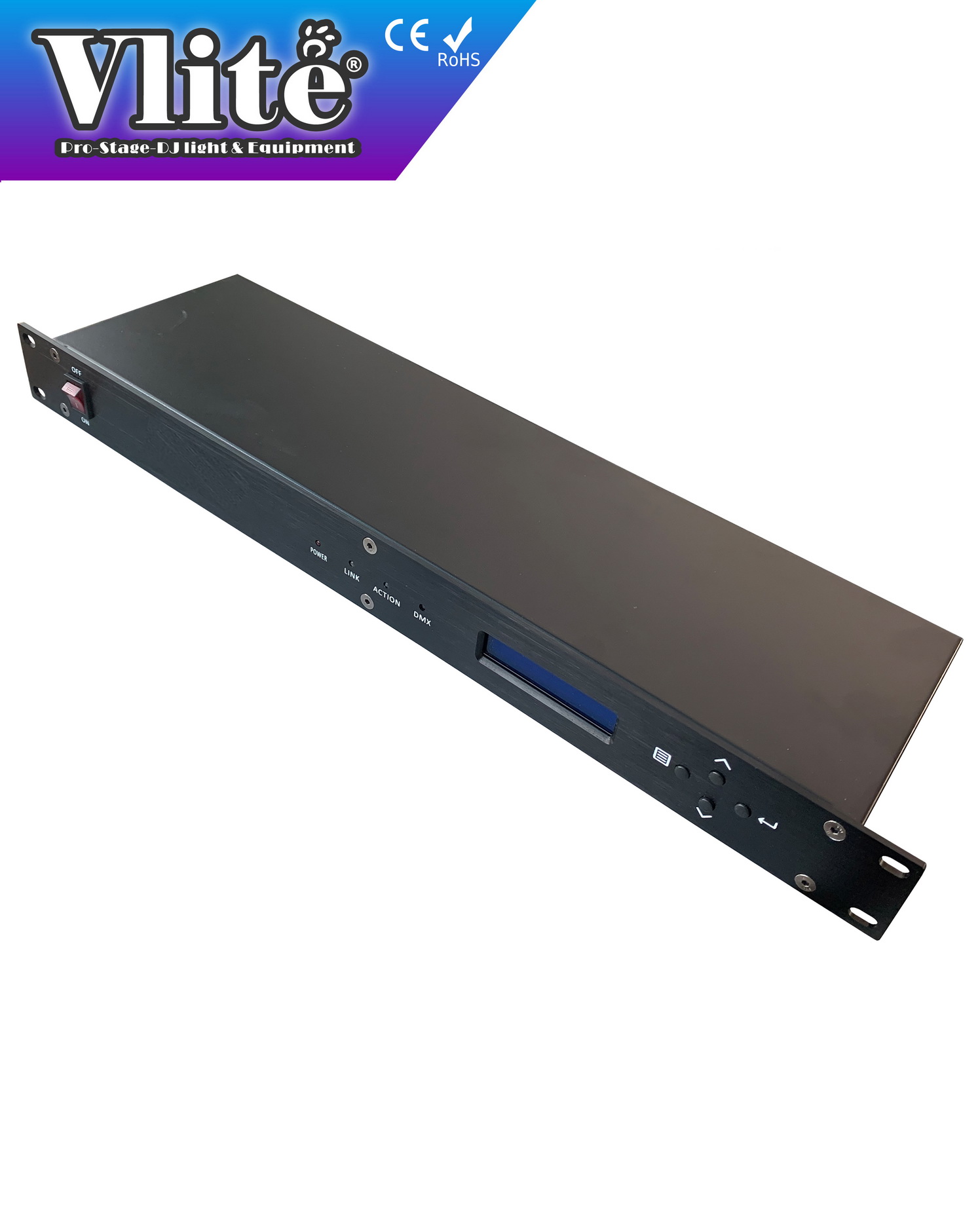

AN-A8 - Art-Net/DMX512 Network Converter

AN-A8 is standard Art-Net Node. Because of this, you can use the device with any application, console, or controller that supports Art-Net to distribute Art-Net data via Ethernet network. Commonly the AN-A8 can be used to extend the DMX output ports of tiger touch and MA2.

Parameter Introduction

Features

* Power Input: AC90-240V/50-60Hz

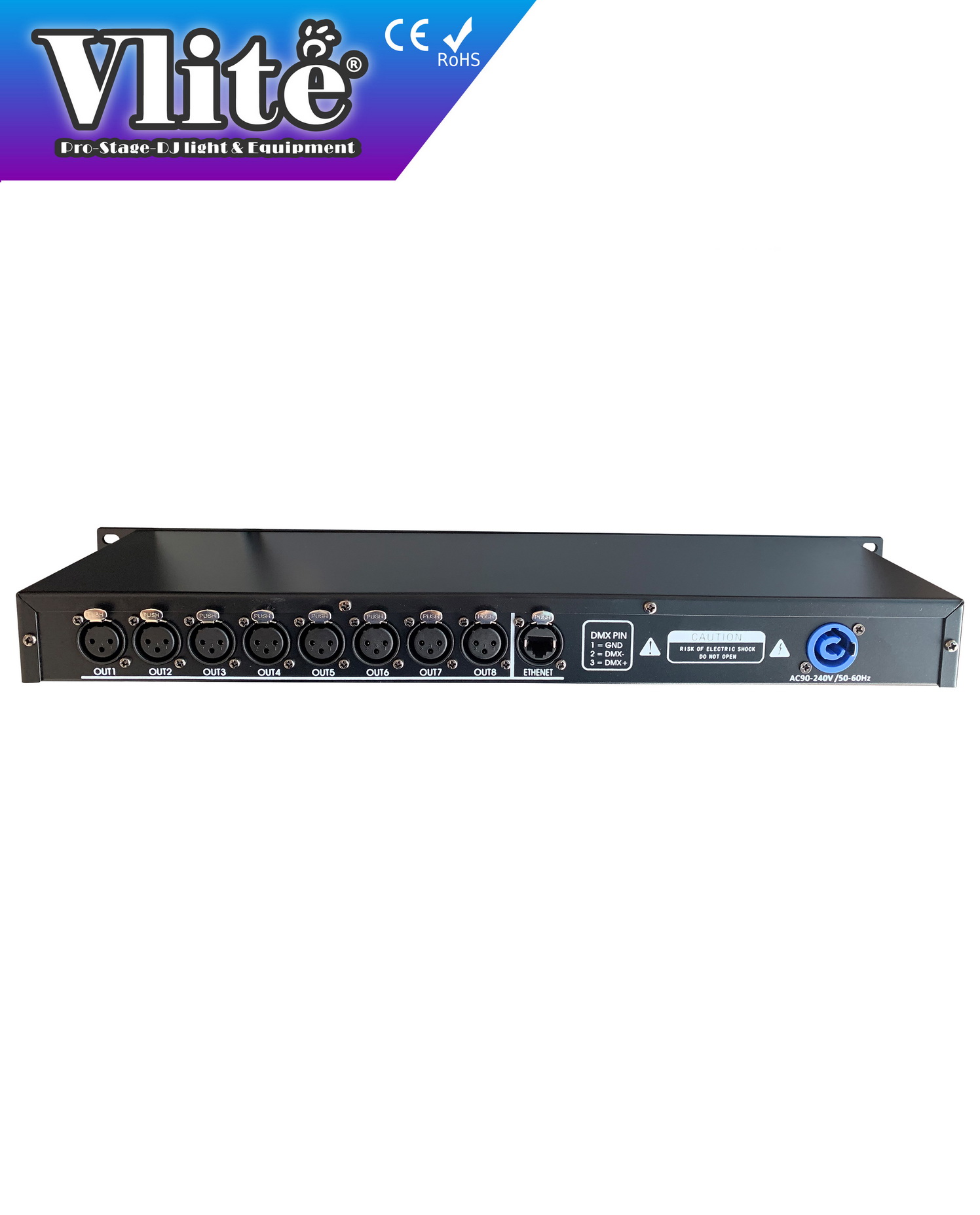

* Provides 8 standard DMX512 data output ports, supporting 8x170 LED pixels

* Can manage ArtNet in broadcast or unicast mode

* Can input 1 channel of ArtNet data, can output 8 channels of DMX512 data (a total of 4096 channels can be output

* All network configuration parameters can be directly modified through the built-in buttons and display (no need to connect to a computer for setting)

* Installation method: adopt the standard 19” 1U cabinet installation method design

* Can use other software, consoles to support the ArtNet controllers, to distribute Art-Net data through the network. Commonly used to expand the Tiger Touch or MA2 console, and the DMX output port of Madrix software

Dimension & Size

* Net Weight: 1.80 KG

* Gross Weight: 2.2 KG

* Product Size: 48.4cm(L) X 4.5cm(W) X 14.0cm(H)

* Packing Size: 53.5cm(L) X 18.5cm(W) X 10.0cm(H)

* Shipping Carton (10 PCS): 55.0cm(L) X 40.0cm(W) X 53.0cm(H); G.W.: 23.0 KG
