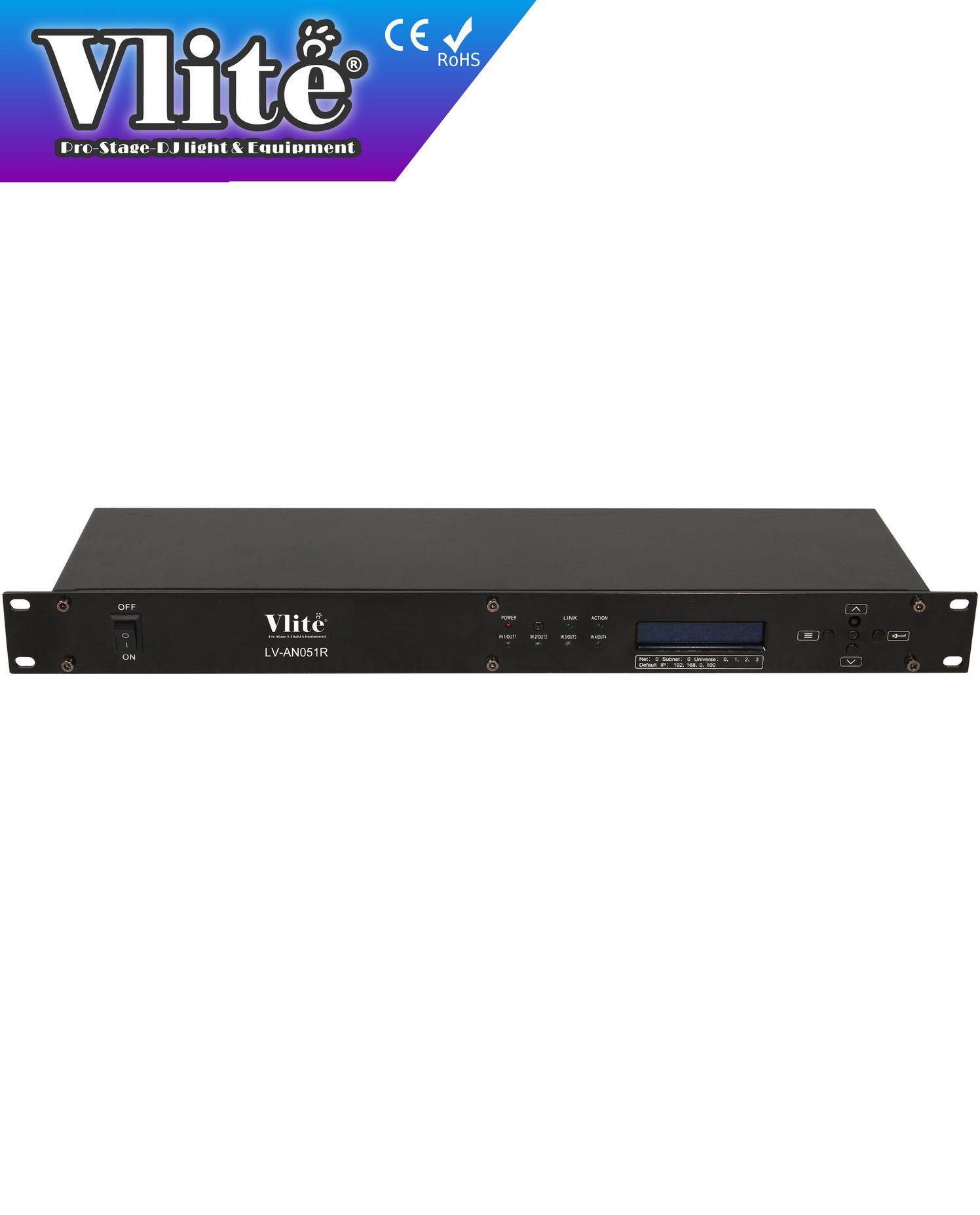

LV-AN051R - 4-Way Converters
4-Way Converters – Artnet converts to DMX512,DMX512 converts to Artnet
Parameter Introduction
Features

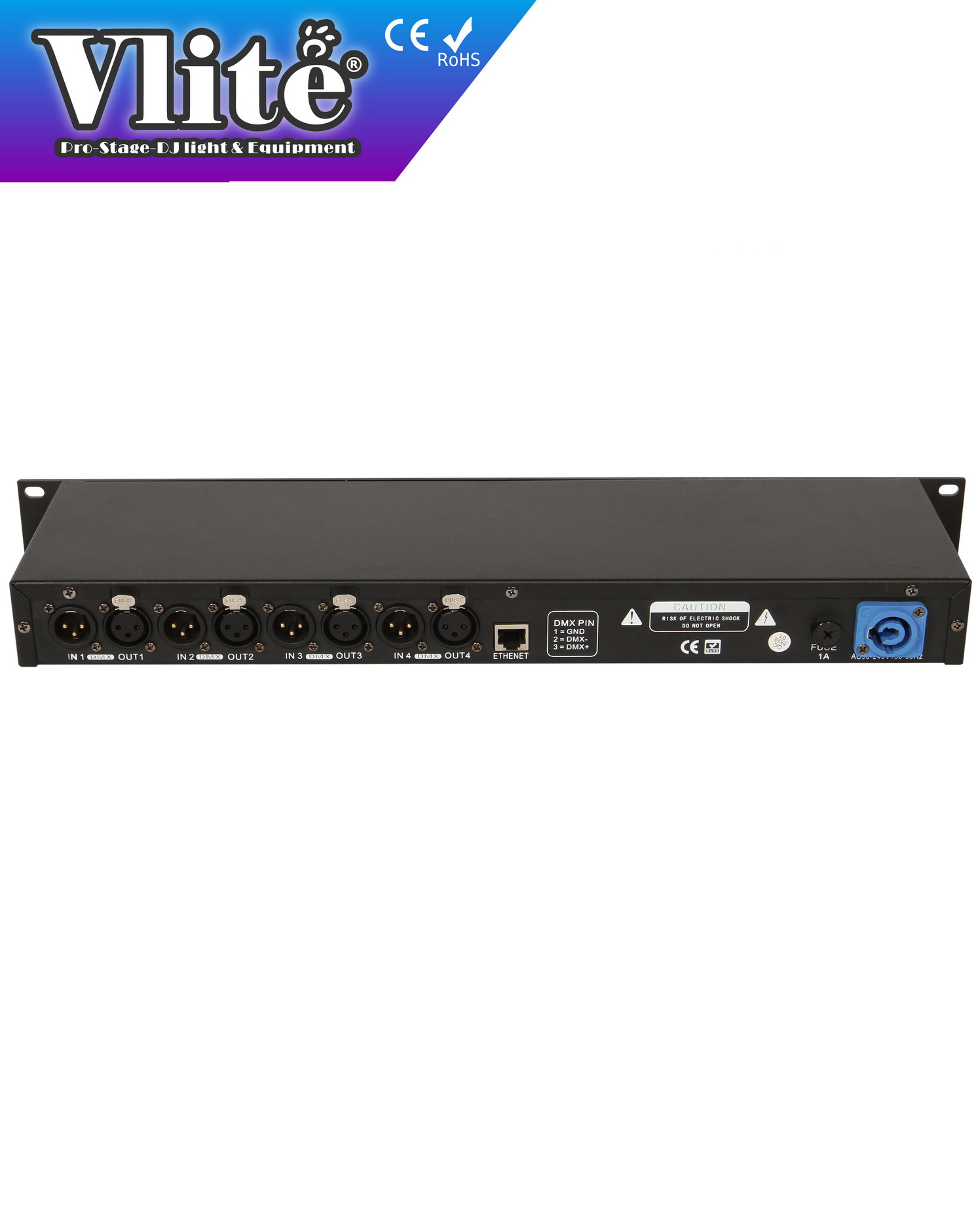

* With 4 standard DMX512 data output port, total 4×512 channels and support 4×170 LED pixel points.
* It can be used with lighting controller which compatible with Artnet Agreement. Also use it to extend the
DMX channels of Tiger touch and MA.
* Can be managed under the broadcast or uni-cast mode
* Input 1 way Artnet data, input and output 4 ways DMX512 data;(total 4×512channels)
* All internet configuration parameters can directly modify with its keys and display screen (No need to
connect the computer to set up)
* Can use other software and controller to support Artnet and through internet to distribute Artnet data
* Installation: Adopt standard 19 inches 1U cabinet
Dimension & Size
* Net Weight: 1.72 KG
* Product Size: 48.00cm(L) X 12.50cm(W) X 4.50cm(H)
