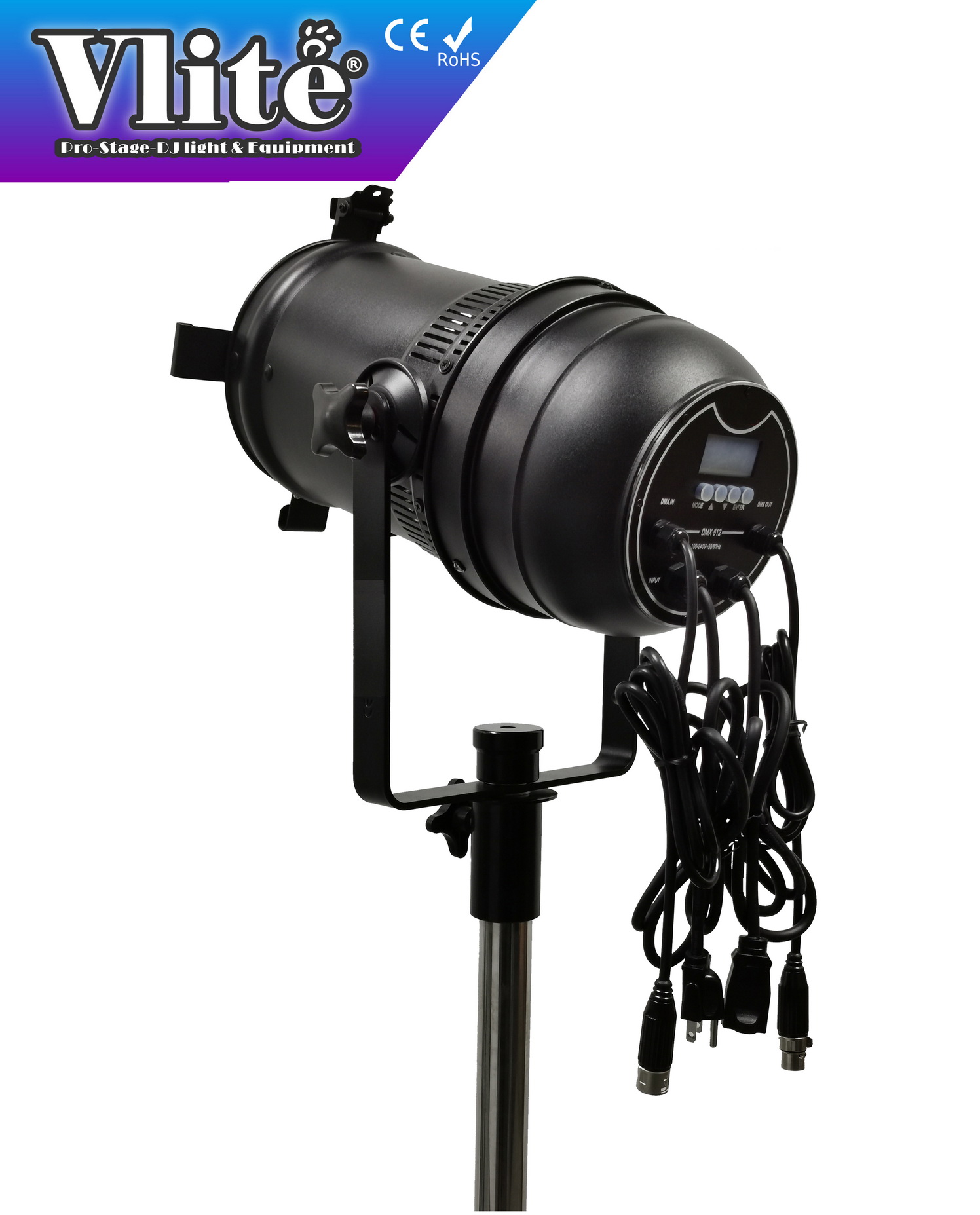

XP-Y2 - Waterproof 200W high CRI ZOOM LED PAR
Waterproof 200W high CRI ZOOM LED PAR
The new waterproof PAR 64 housing design, the optics adopts a high-precision lens combination design, the light from the zoom range of 10°-40° is particularly soft and uniform, high color rendering index, easy to use indoors or outdoors.
equilibrium can still have a very stable color temperature output.
* Using aluminum alloy and aluminum alloy steel plate technology, ultra-light and thin
design, simple and stylish.
* Optical design adopts highly precise lens combination.
* Modular structure, simple operation, convenient for daily simple maintenance.
* The light source adopts LED cold light source, matrix distribution, high light
transmission diffuser, light output is soft, uniform, no infrared, ultraviolet, no glare,
balanced heat conduction technology, silent fan + sun radiator design can quickly
converge Heat energy is taken out instantly, achieving low noise heat dissipation effect.
* 10°-40° zoom angle, able to view a wide range of astigmatism lighting
* High color rendering index CRI ≥ 95
* Waterproof grade IP44 can be used for outdoor or indoor installation
Parameter Introduction
Voltage and Power Consumption
* Voltage: AC110~240V 50Hz/60Hz
* Power Consumption: Max 250W
* Light Source: 1 x 200W COB LED, 3200K
Features
* CRI: ≥95
* Beam Angle: 10° ~ 40°
* Illuminance: @10°: 3 Meter 18090Lux; @40°: 3 Meter 3050Lux
* 0-100% linear dimming,2 dimming curves optional,High speed synchronization strobe function
* Power / Signal: 3-pin XLR input/output connector (IP65) / Powercorn input/output connector (IP65)
Control Mode
* Control Mode: DMX 512,Master/Slave,Sound Activated
* 7 DMX 512 Channel: 1 / 2/ 3/ 4/ 5/ 6/ 7 CH*
Structure
* Protection Level: IP44
* Color: Black
Dimension & Size
* Net Weight: 4.50 KG
* Product Size: 48.0cm(L) X 30.5cm(W) X 27.5cm(H)
* Master Carton Size: 52.5cm(L) x 52.5cm(W) x 52.5cm(H) (4 PCS)
* Gross Weight: 23.80 KG (Daisy-chain version); 20.7 KG (Powercorn version)
