HZ-5.5C - Professional Oil-Base Haze
Professional Oil-Base Haze
Haze produced by a process without heating up presents effect of more dialysis and transmittance, which let the beams perform sharper and more beautiful. Gravity of the particle of haze is similar to the air, so the haze can stay in the air longer. High-quality air compressor allows the hazer to be more resistant and quieter almost without maintenance problem.
* Smoke outlet with fan to produce lots of haze.
* Built-in multi-function control including timer control, manual fogging control and
continuous fogging control.
* Easy understanding blue LCD display and intelligent design of software control.
* DMX on board, 3 DMX modes for choice; 1CH, 2CH, 4CH, operate by any
additional DMX controller.
* Visible liquid level window with blue LED can clearly see the liquid level changes.
* Equipped with professional and long life-span air compressor. Quiet and high-
efficiency.
* User-friendly design of the drain valve to make haze liquid more convenient and
easier to pour out.
* Precise conduction system of haze and liquid tank of high capacity.
* Thick and excellent flight case for easy movement.
* Using PowerCon power cable, more professional and safer.
* HZ-5.5C is coordinated perfectly with high-quality and high-dialysis haze. High
smoke output, high stability, low energy consumption, high safety and quietness
accomplish HZ-5.5C as the most durable and professional haze.
Parameter Introduction
Voltage and Power Consumption
* Voltage: 100V 50/60Hz, 120V 60Hz, 230V/240V 50Hz
* Heat Power: Air Compressor, no need to heat up
* Consumption: 420W (Max. power when start 660W)
* Fuse (100V,120V): T10A/250V
* Fuse (230V,240V): T5A/250V
Features
* HazeOutput: 3000 cuft/min
* Fluid Consumption Rate: 0.8ml/min.
* Tank: 2.5liter
* Low Fluid Shutdown: No
* Build-in Function: Continuous / Timing / Manual Fogging
Structure
* DMX 512 CH.: 1CH, 3CH, 4CH
* Display: Blue LCD screen
* DMX Connectors: 3 Pin & 5 Pin XLR
* Ta/Tc: 40℃/40℃
* Controller (included): No
* Controller (Optional): SHVT-1

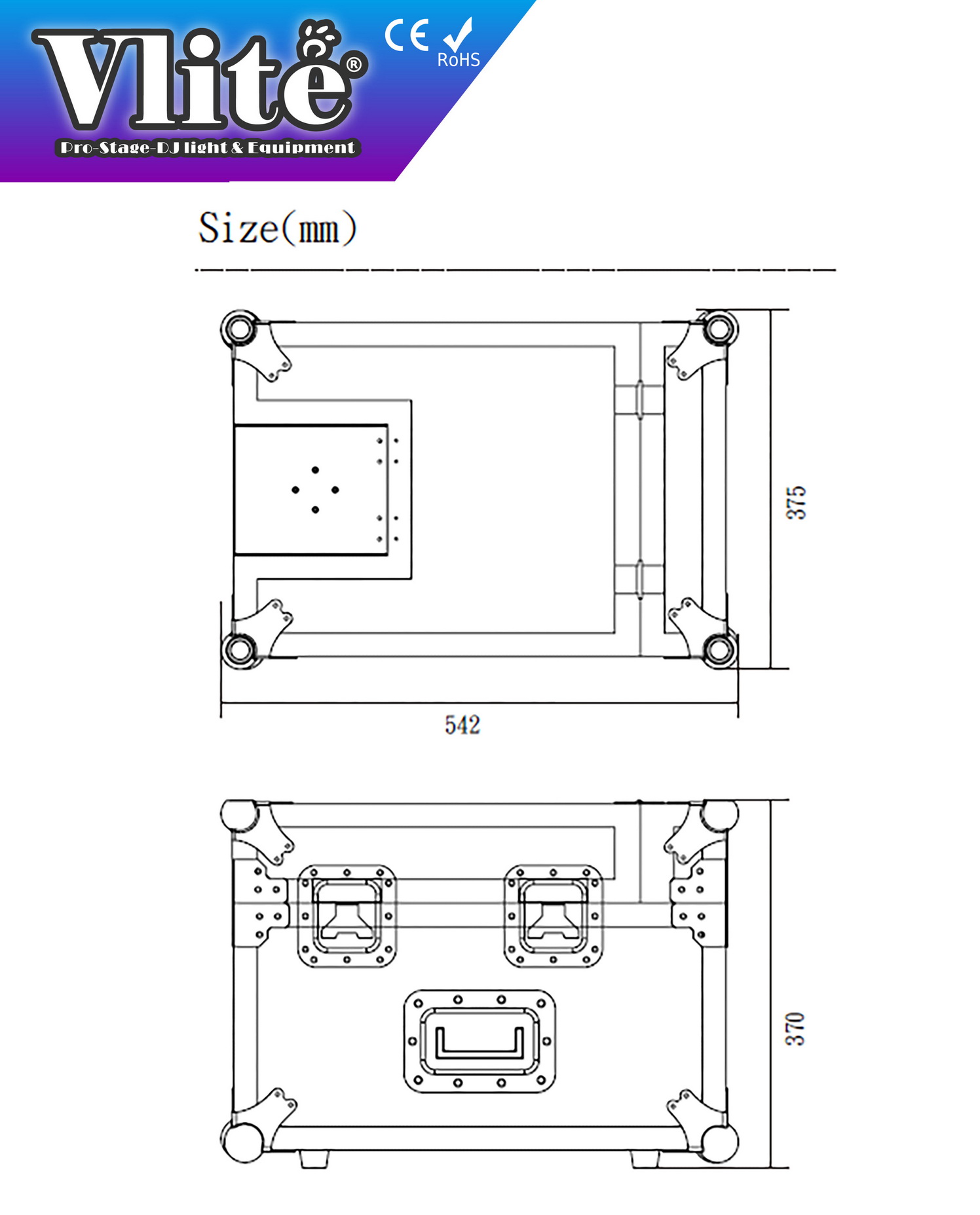

Dimension & Size
* Net Weight: 36.0 KG
* Product Size: 54.2cm(L) X 37.5cm(W) X 37.0cm(H)
