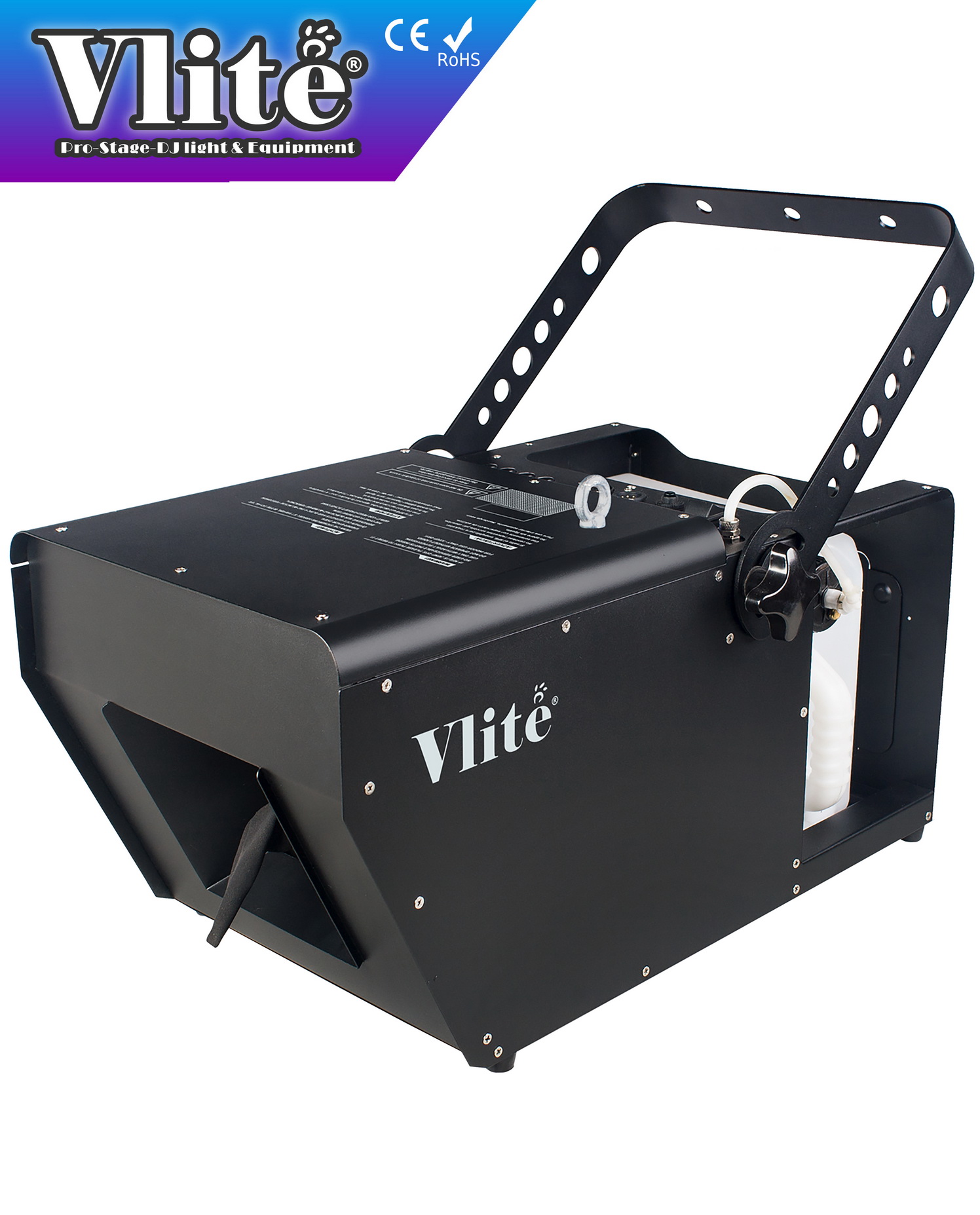

FZ-3.5C - DMX Faze Machine

DMX Faze Machine

* Primary heating up takes very short time, only about 60 seconds, shorter than
   general faze machines.

* Drying, stable and smoothly smoke output control from 5-100%. High quality
   smoke, with smooth fan speed adjustment, so that the effect of smoke thinner
   and more uniform.

* 5-100% fan speed adjustment. Quiet and smooth fan let the smoke disperse
  unknowingly. The powerful wind can quickly fill every corner of the smoke, the
  thin and uniform smoke effect makes the performance of the lights more perfect.

* The machine can be installed for up spray or forward spray.

* Professional design of 6-liter liquid tank let FZ-3.5C have no worry of oil leaking
  when being operated up spray or forward spray. Quick connector makes
  replacement direct and easier when performance is ongoing.

* DMX on board, 3 DMX modes for choice; 1CH, 2CH, 4CH, operate by any
  additional DMX controller.

* Built-in multi-function operation control. Built-In timer control and continuous
  fogging control.

* FZ-3.5C is equipped with minus 20˚ to 40˚ adjustable air deflector.

* Heavy-duty. Able to keep working long time.

* Self-cleaning function: The machine design of machine stops working after a
  delay of 30 seconds, automatically clear the tubing of the remaining liquid.

* Easy understanding blue LCD screen and intelligent design of software control

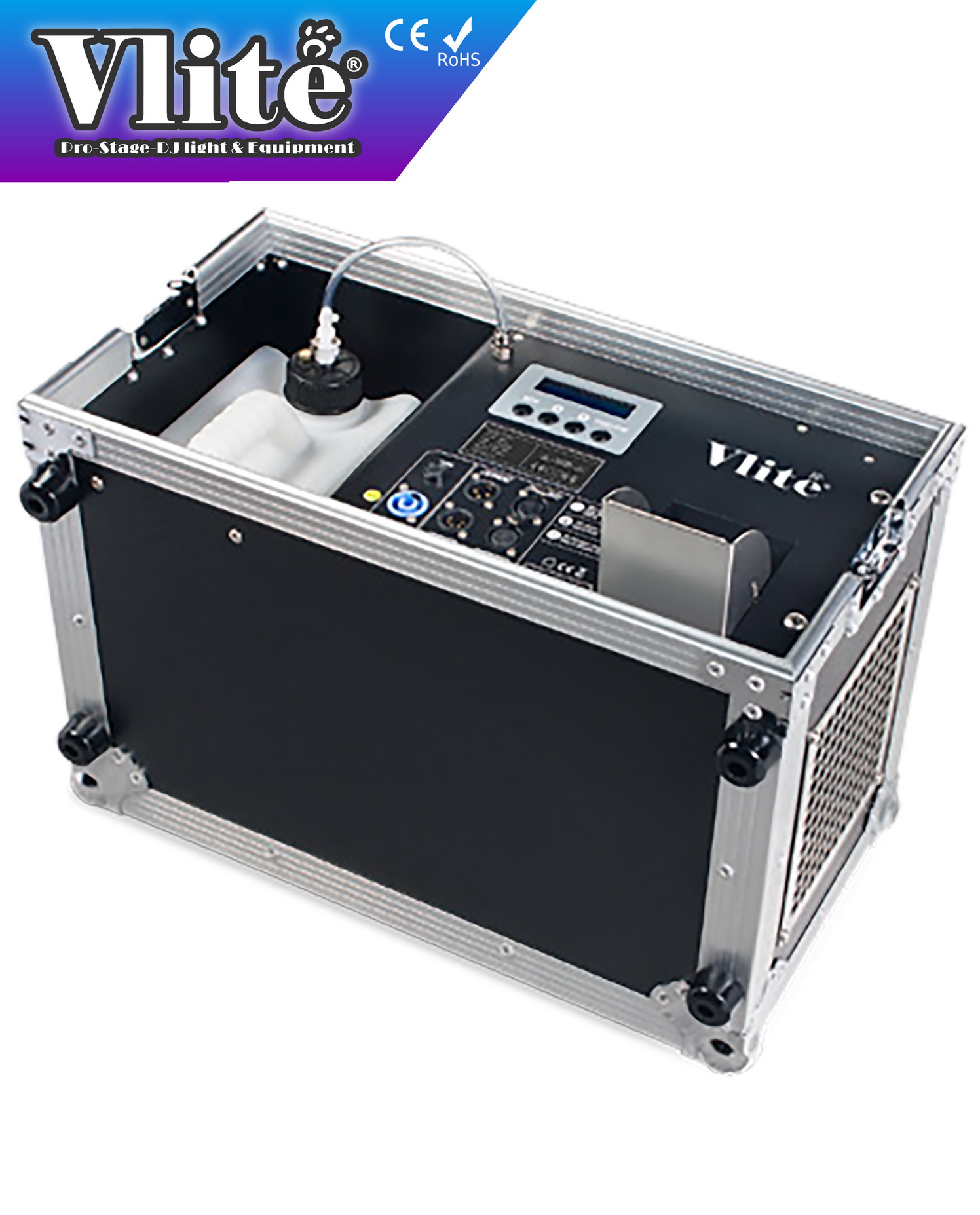

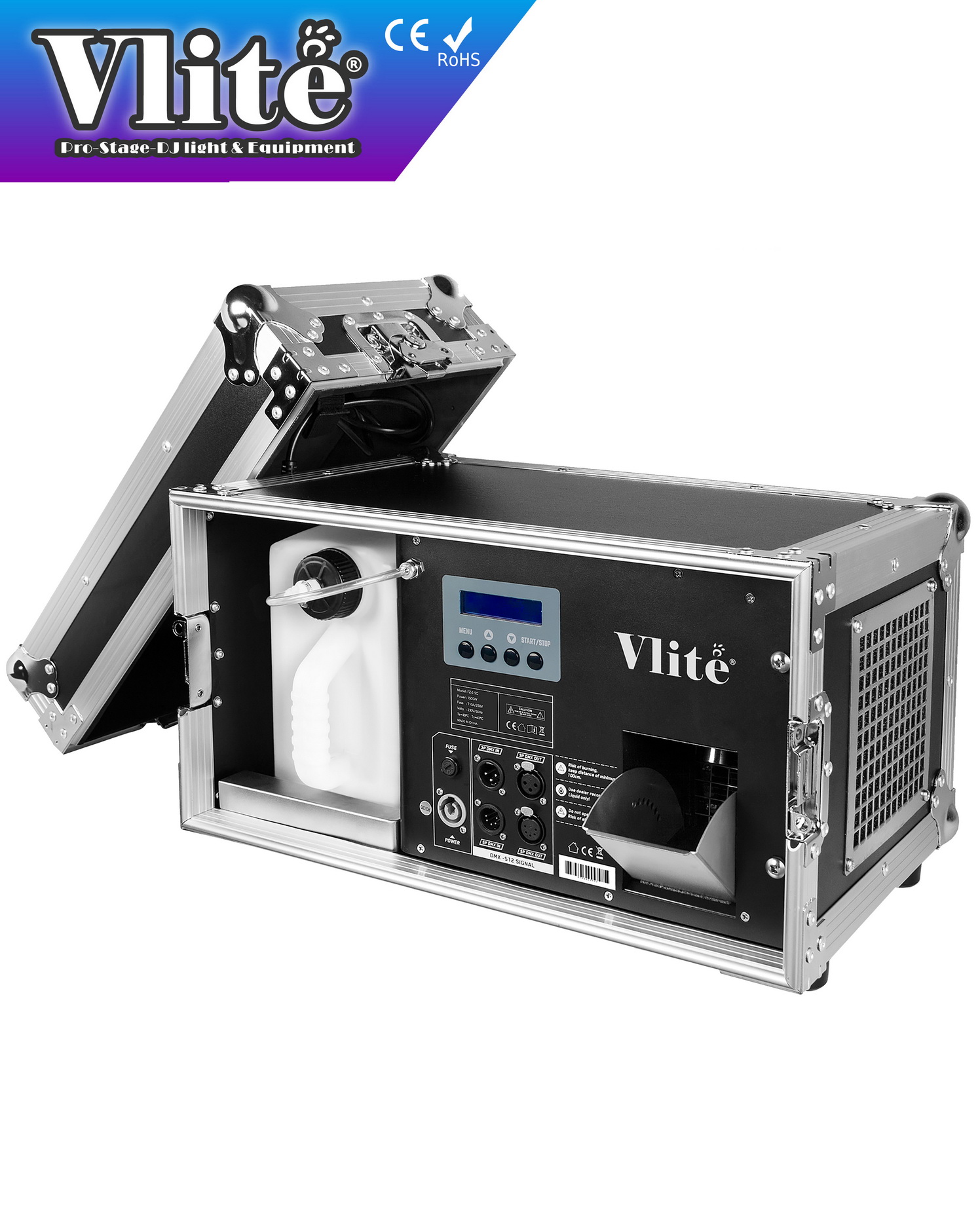

* Flight case designed with thick and excellent material.

Parameter Introduction

Voltage and Power Consumption

* Voltage: AC120V/60Hz; AC230V, 240V/50Hz
* Heat Power: 1400W
* Consumption: 1500W

Features

* Fuse (120V): NFB16A
* Fuse (230V,240V): T10A / 250V
* Warm up Time: 60 Sec.
* Fog Output: 15000cuft/min.
* Tank Capacity: 6.0 Lite
* Fluid Consumption: Max. output 9.5ml/min.
* Built-in Function: Timing/ Continuous Fogging
* Low Fluid Shutdown: Yes

Structure

* DMX 512 CH.: 1CH, 2CH or 4CH
* Display: Blue LCD Screen
* Date Connection: 3Pin or 5Pin XLR
* Power Connection: PowerCon
* Bracket: No

Dimension & Size

* Net Weight: 18.8 KG

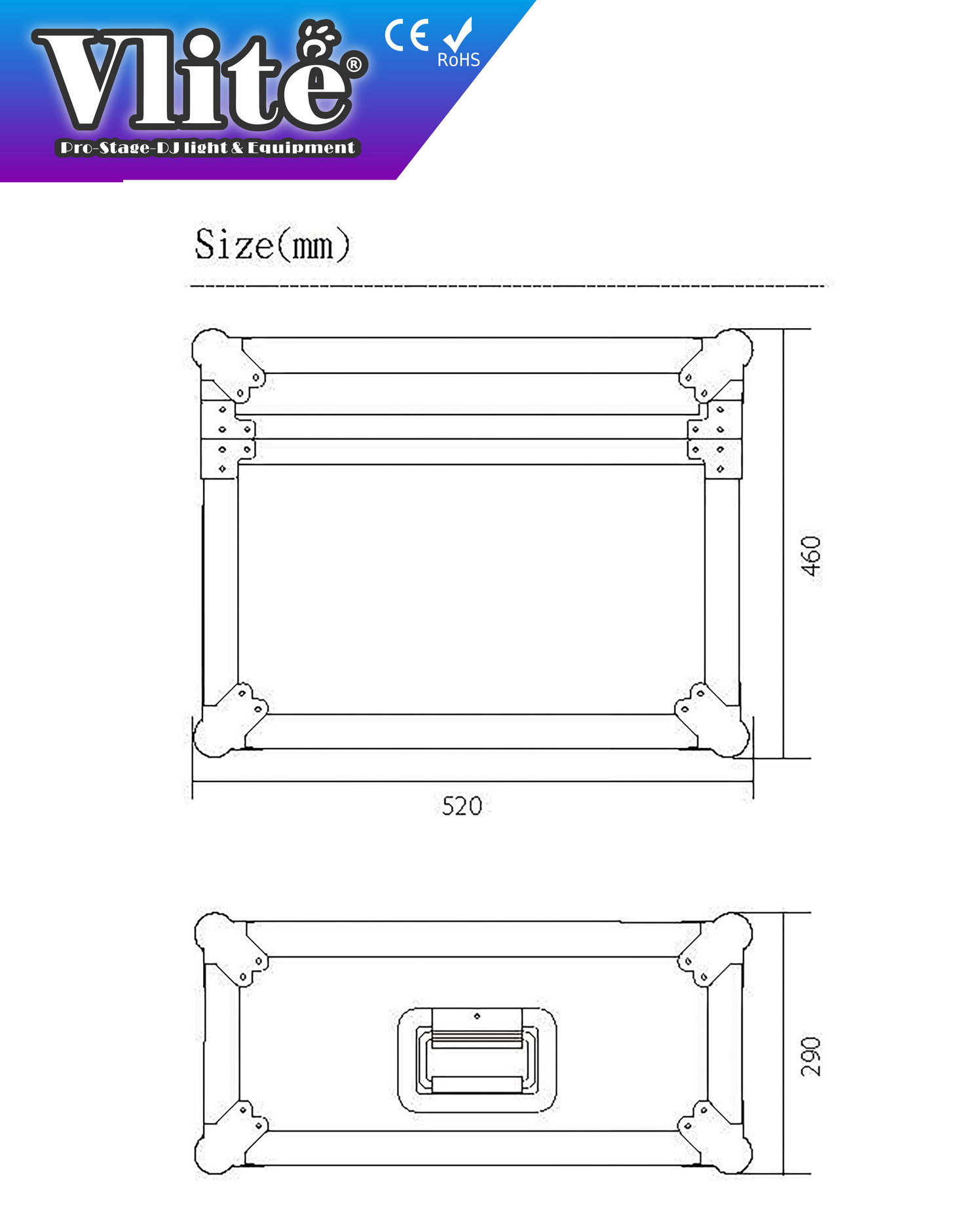

* Product Size (w/o bracket): 52.0cm(L) X 46.0cm(W) X 29.0cm(H)
