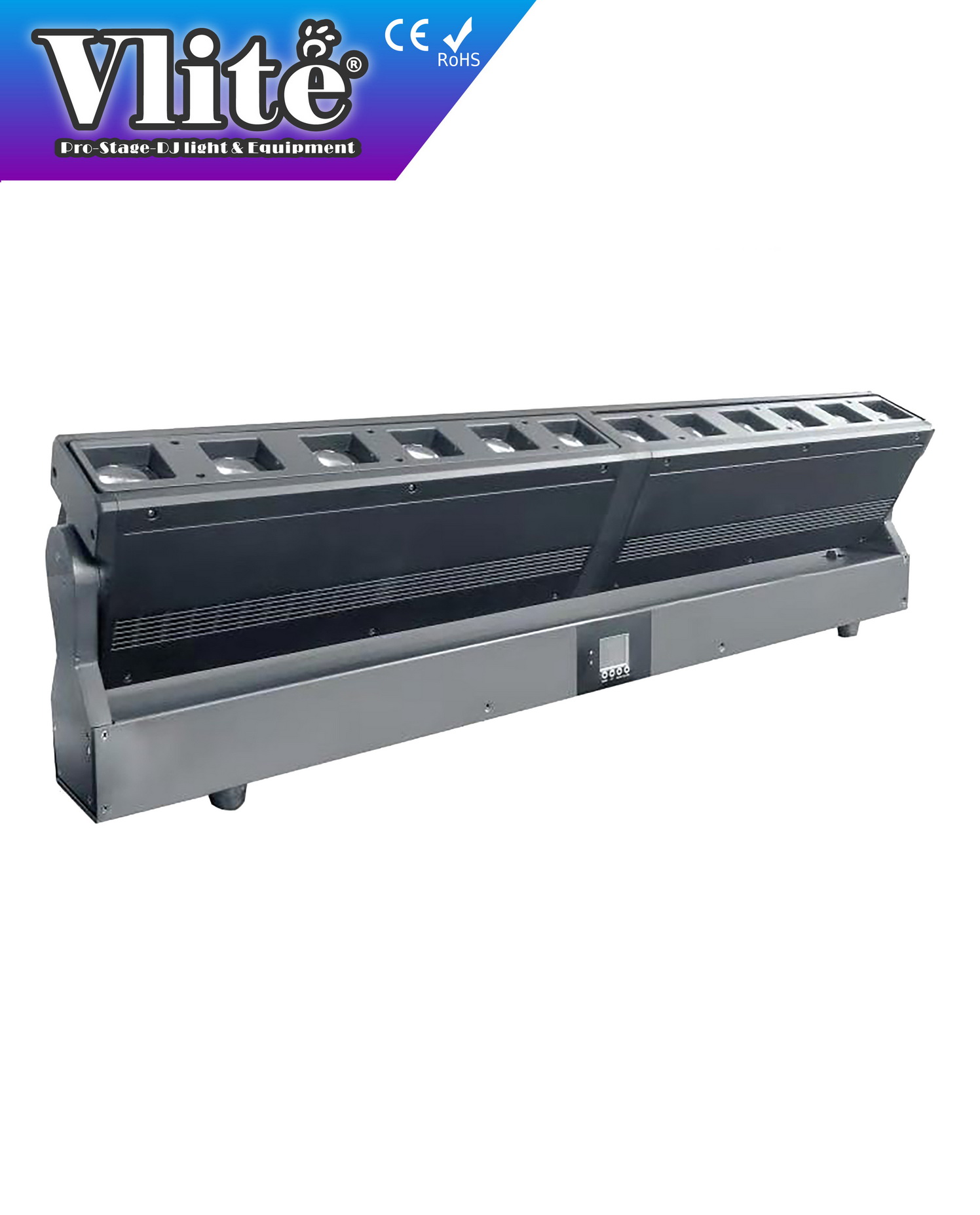

LV-RB1240 - Pixel Control Zoom Linear Beam Wash Bar Moving Head 12 x 40W

Left and right bar can independently control the zoom range, Linear focusing system, Excellent color mixing effect, Adjustable strobe speed, 0~100% smooth dimming.

 Parameter Introduction

Voltage and Power Consumption

* Voltage: AC90V-240V, 50/60Hz

* Light source: 12PCS X 40w high brightness 4-IN1 LED

* Power Consumption: 580W

* LED Life-spam: ≥50000 hours

Features

* Beam Angle: 3°~40°

* Y-axis: 90°+16 bit smooth, high-precision rotation

* Dimming: 0-100% linear dimming

* Strobe: 1-25 times/sec

*

Control Mode

* Control Mode: DMX 512/Master-Slave, Auto-run, Sound-Activated

* Channel: 16/ 21/ 52/ 64CH

* Power Connector: PowerCon input / output

* Signal Connector: 3-pin XLR input / output

Structure

* Display: LCD screen, 180° rotatable

* Housing: ABS flame retardant + nylon high temperature resistant engineering plastics

* Protection Level: IP20

Dimension & Size

* Net Weight: 15.0 KG

* Gross Weight: 17.0 KG

* Product Size: 102.0cm(L) X 10.0cm(W) X 30.0cm(H)

* Packing Size: 110.0cm(L) X 18.0cm(W) X 35.5cm(H)
