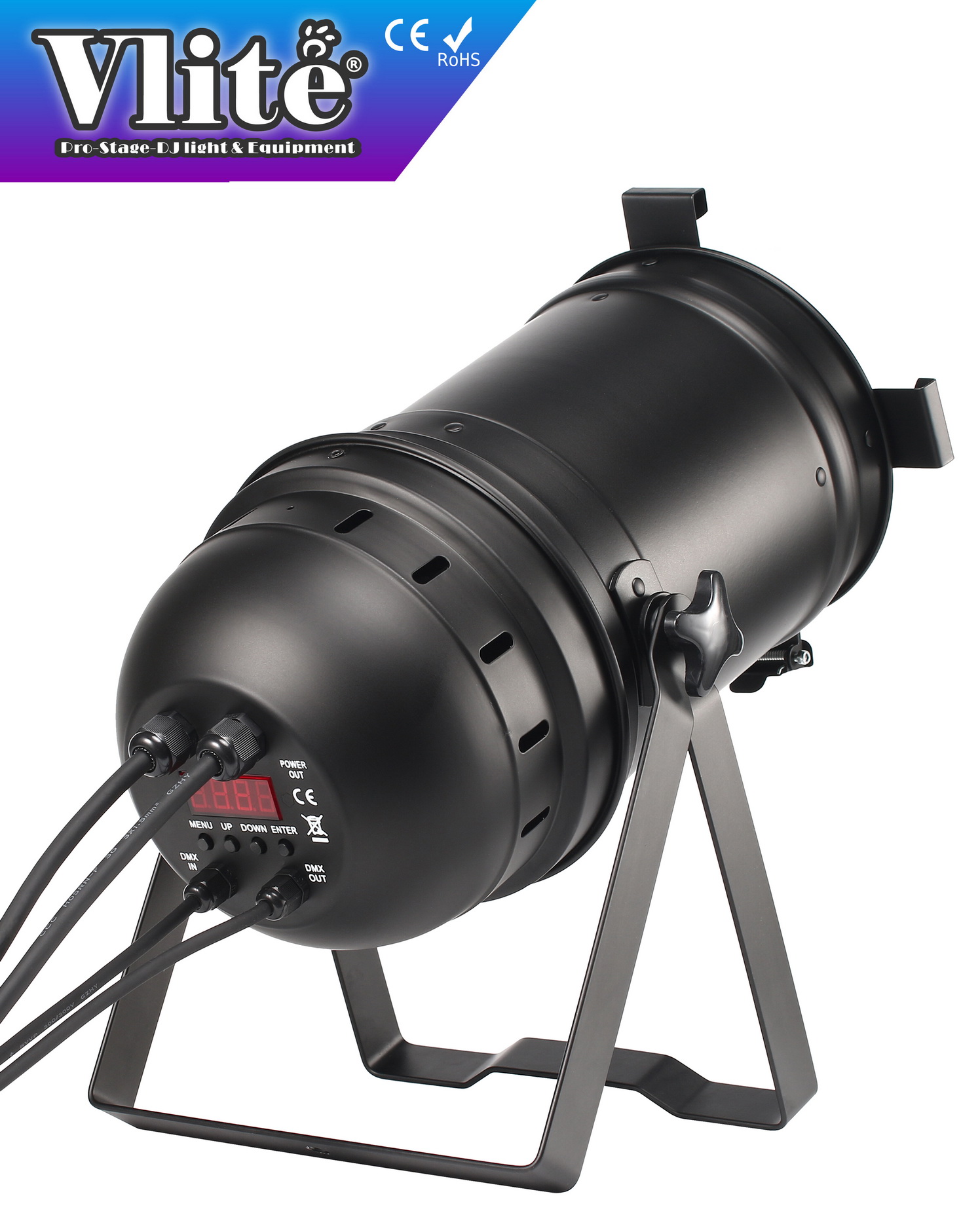

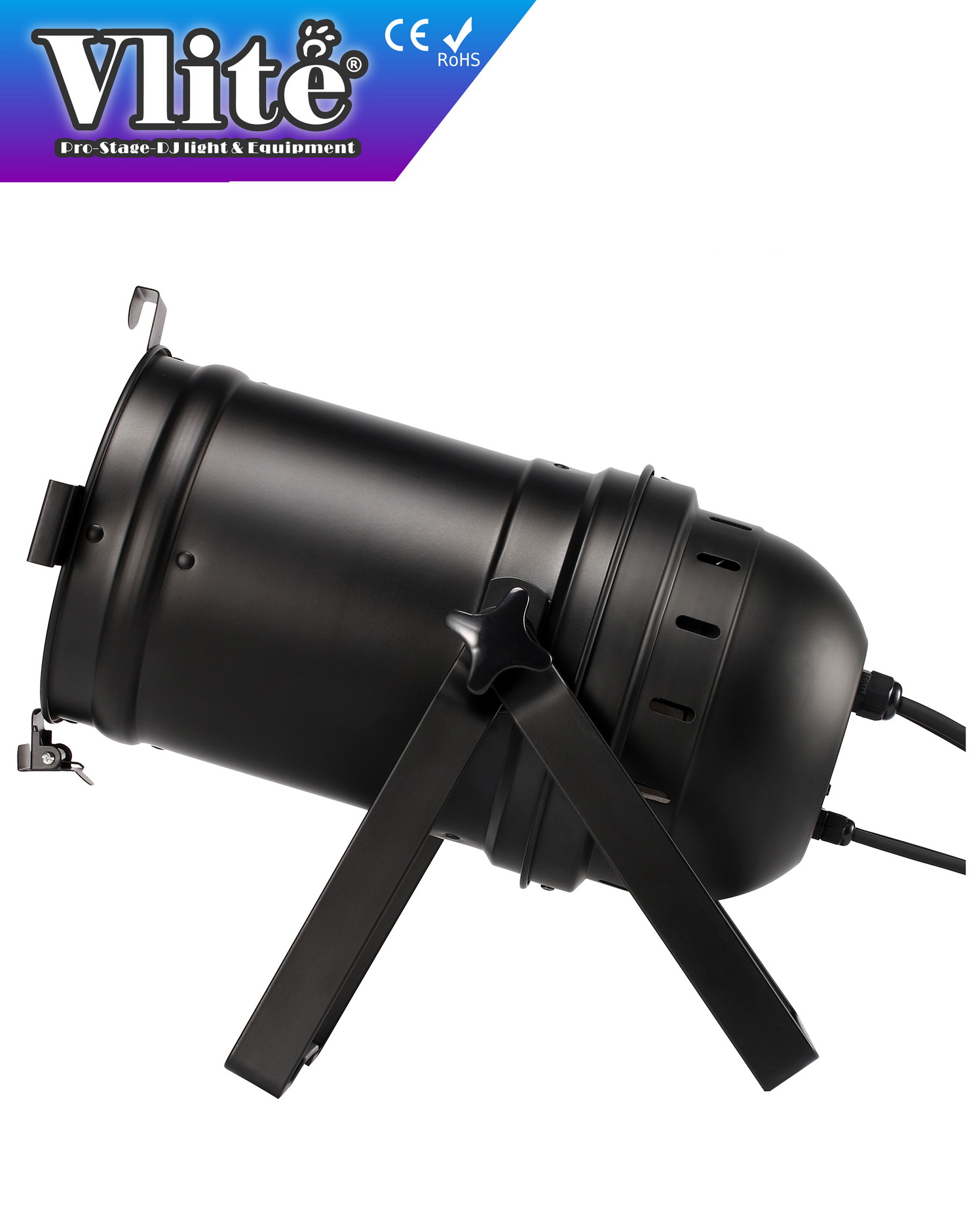

LV-B03

200W ZOOM LED PAR come with Copper tube heat dissipation



Parameter Introduction



Voltage and Power Consumption


* Voltage: AC100-240V, 50/60HZ

* Power Consumption: 200W

* Light Source: Taiwan /China 200W warm white COB

* Color Temperature: 3200K

* CRI: 90



Features


* Optical System: High precise glass optical lens + Fresnel lens

* Electronic Focusing: 23000Lux @3 meters (Taiwan LED)

* Zoom Range: 10°~ 55°

* Cooling System: air-cooled + copper tube radiator

* 0-100% linear dimming, 4 dimming curves selectable and high-speed sync strobe function.



Control Mode


* Control Mode: DMX-512, Master-slave control, Auto-run, Sound-activated and Static mode

* 2 DMX-512 Channel Mode: 3/7CH



Structure


* Display: LCD Display

* Protection Level: IP20



Dimension & Size


* Net Weight: 3.750 KG

* Gross Weight: 4.65 KG

* Product Size: 20.0cm(L) X 28.0cm(W) X 39.0cm(H)

* Packing Size: 26.5cm(L) X 26.5cm(W) X 50.0cm(H)
