M9103

Zoom Wash 91 x 3W LED Moving Head

Parameter Introduction

Voltage and Power Consumption

* Voltage: AC110-240V, 50-60HZ

* Light Source: 91PCS X 3W CREE LED (RGBWA or RGBW)

* Power Consumption: 310W

Features

* Driver Current: 1400Ma

* Lumens@2meter: 40500+

* Zoom Range: 8° ~ 40°

* Movement: Pan/Tilt: X axis: 540°+Fine, Y axis 270°+Fine

* Fine Turning: 8-16bit

* Special Function: Pan/Tilt can operate in black out and pan/tilt angle can change

* Strobe: 0-20Hz/sec, adjustable strobe speed from slow to fast

* Dimming: 0-100% linear dimming

Control Mode

* Control Mode: DMX-512, Master/Slaver, Sound-activated, Auto mode

* DMX-512 Channel: 12/15CH

* Display: LCD screen with 4 buttons on board manual

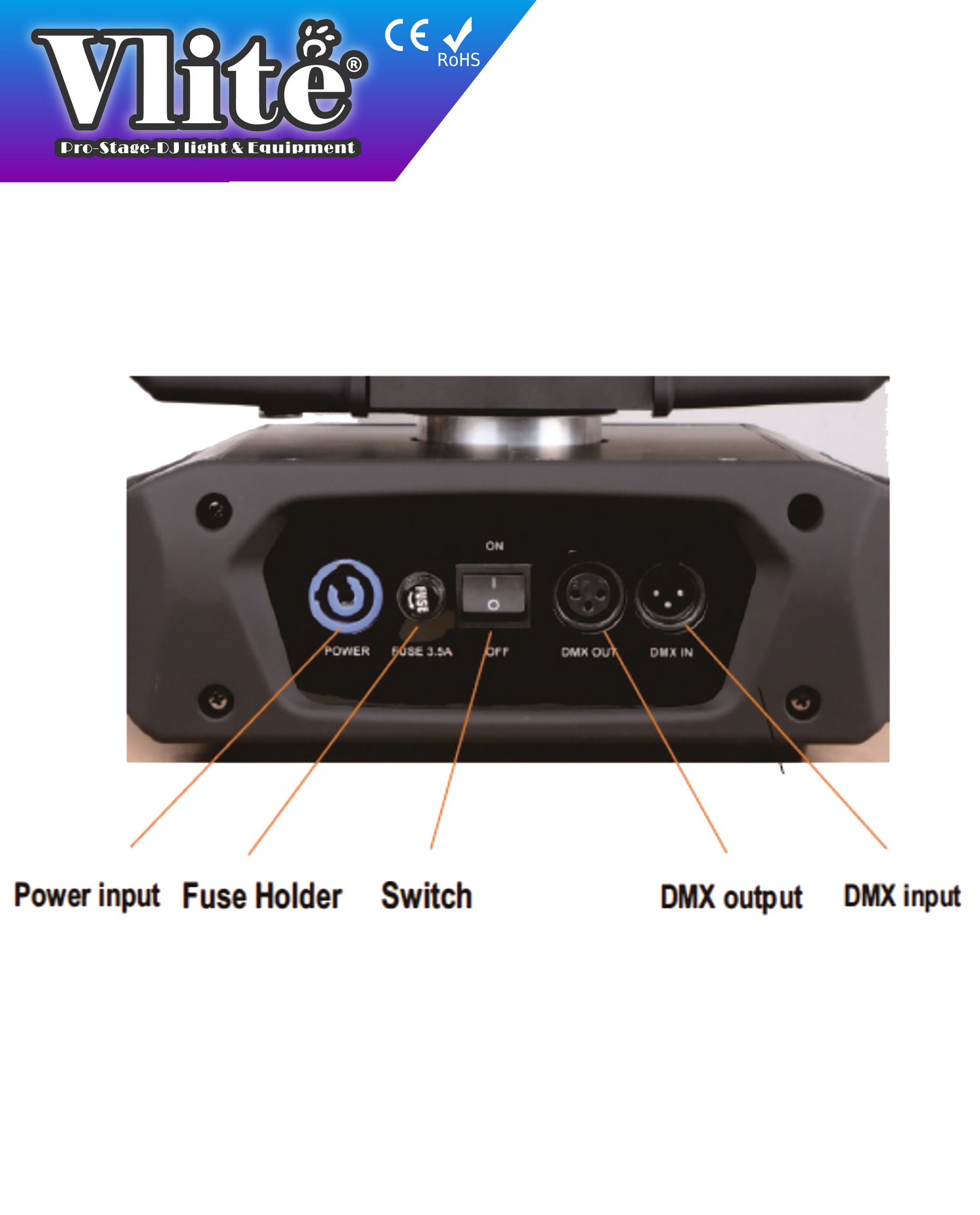

* DMX-512 signal connector:  XLR3 in/out

Structure

* Protection Level: IP20

* Housing: Flame-retardant engineering plastic shell cast aluminum

Dimension & Size

* Net Weight: 11.0 KG

* Gross Weight: 13.0 KG

* Packing Size: 45.0cm(L) X 31.5cm(W) X 40.0cm(H) (1 PC)
