LV-C5

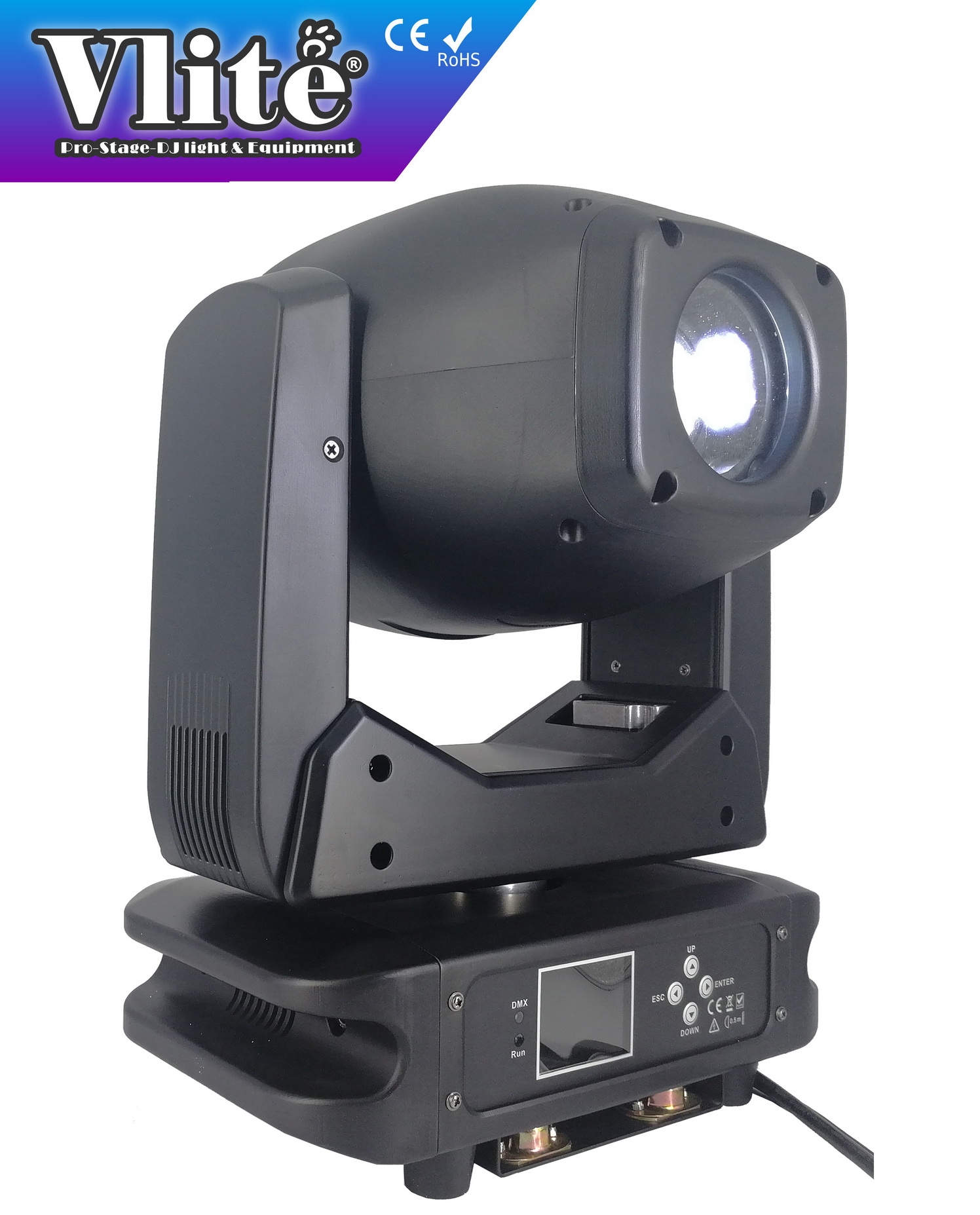

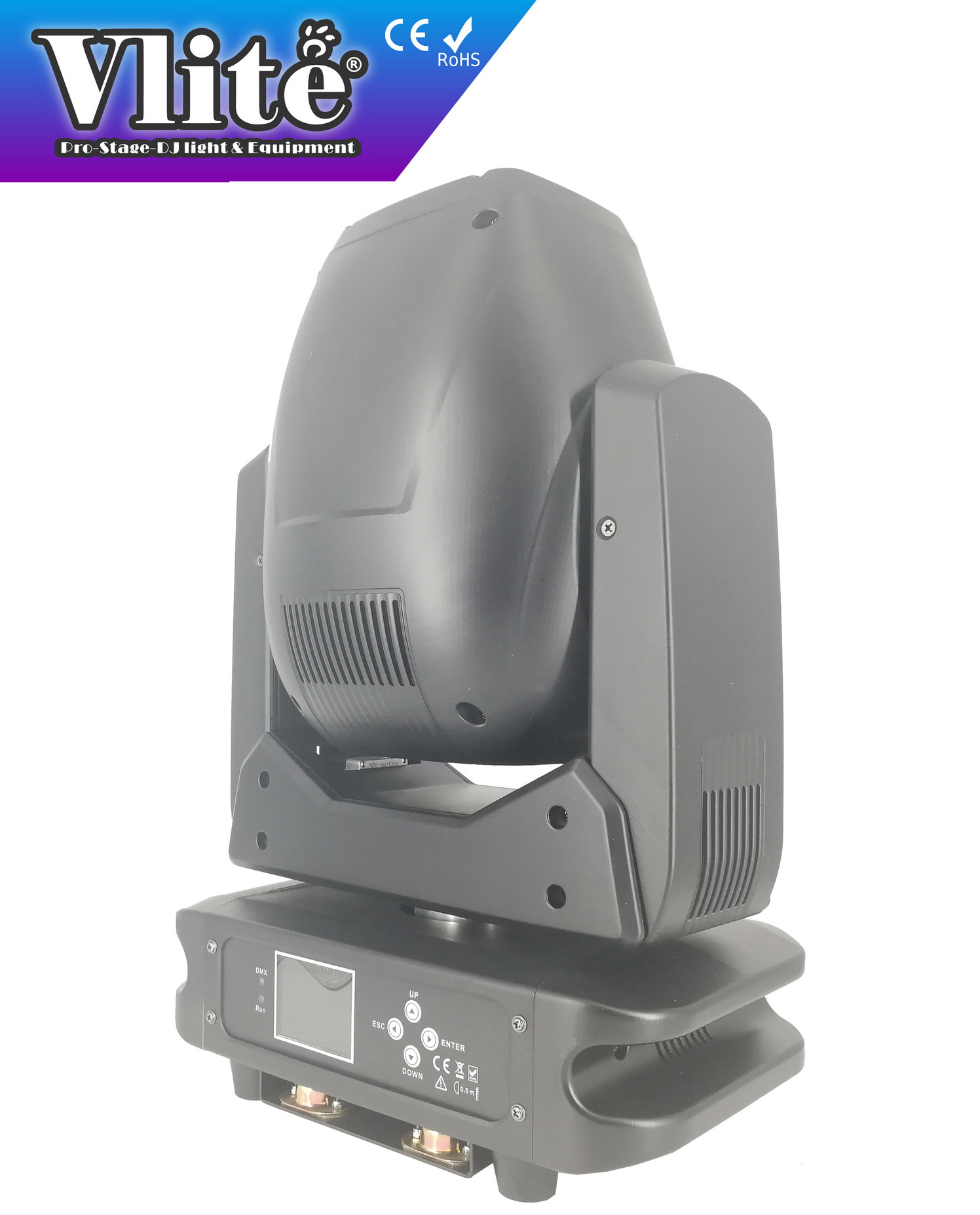

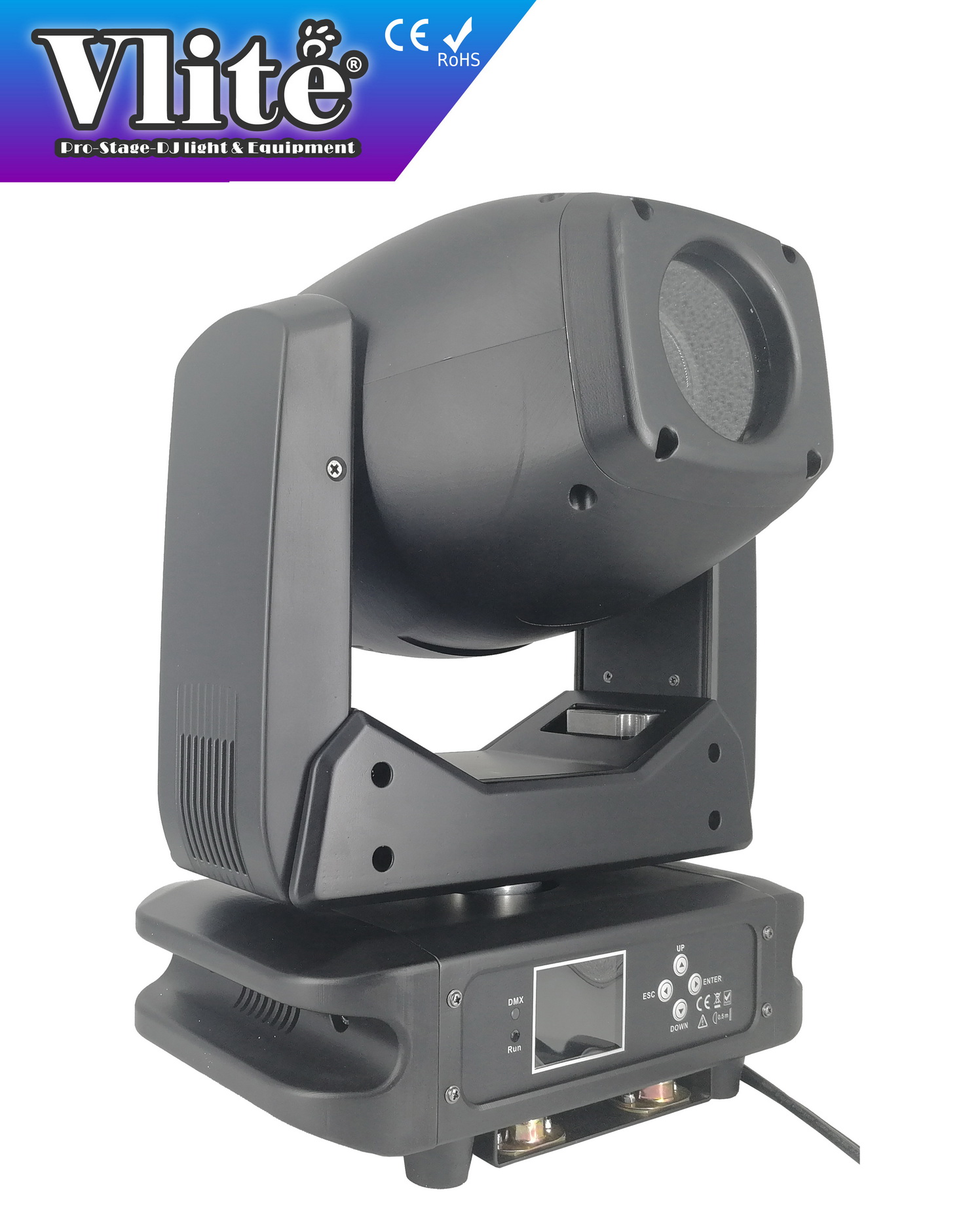

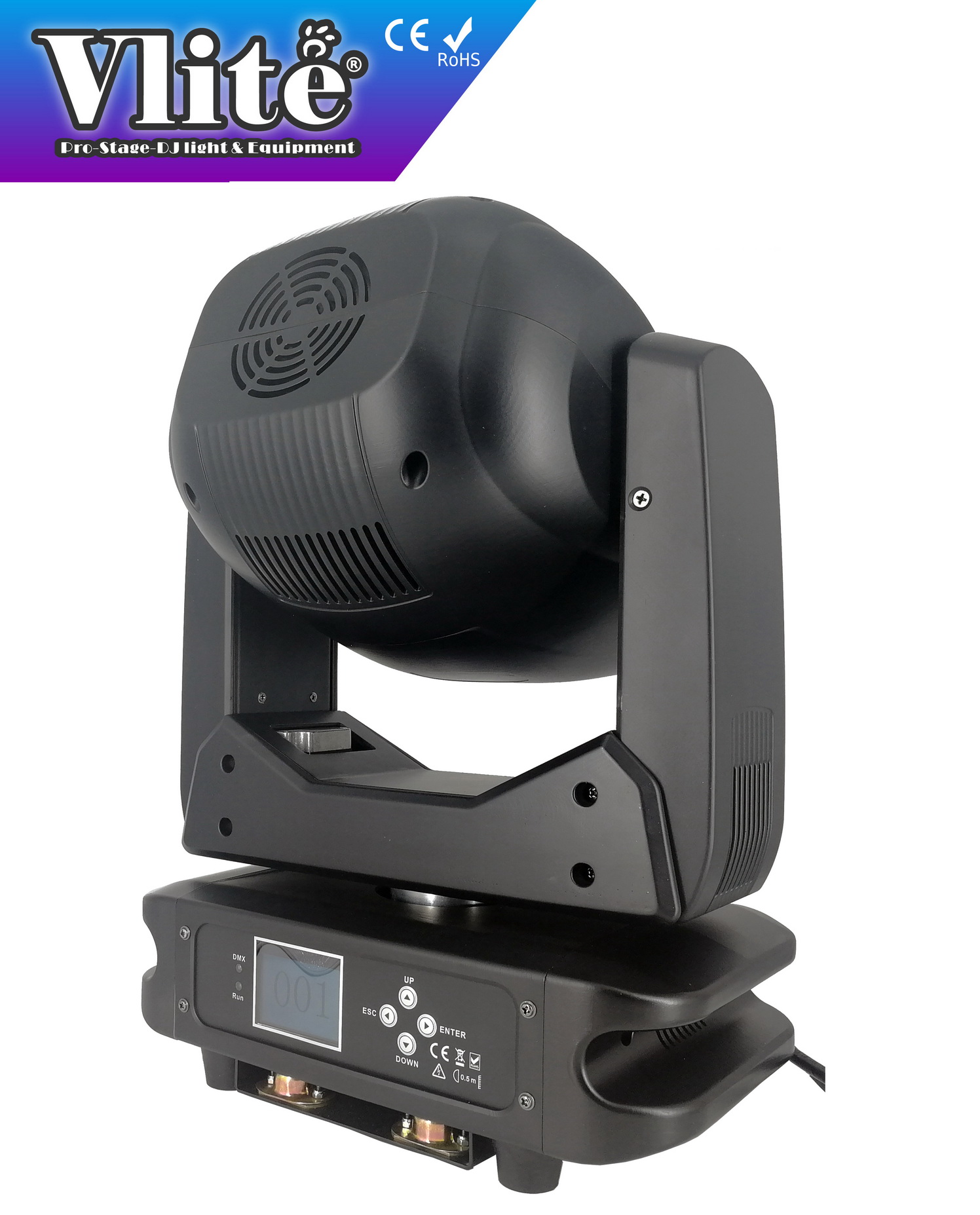

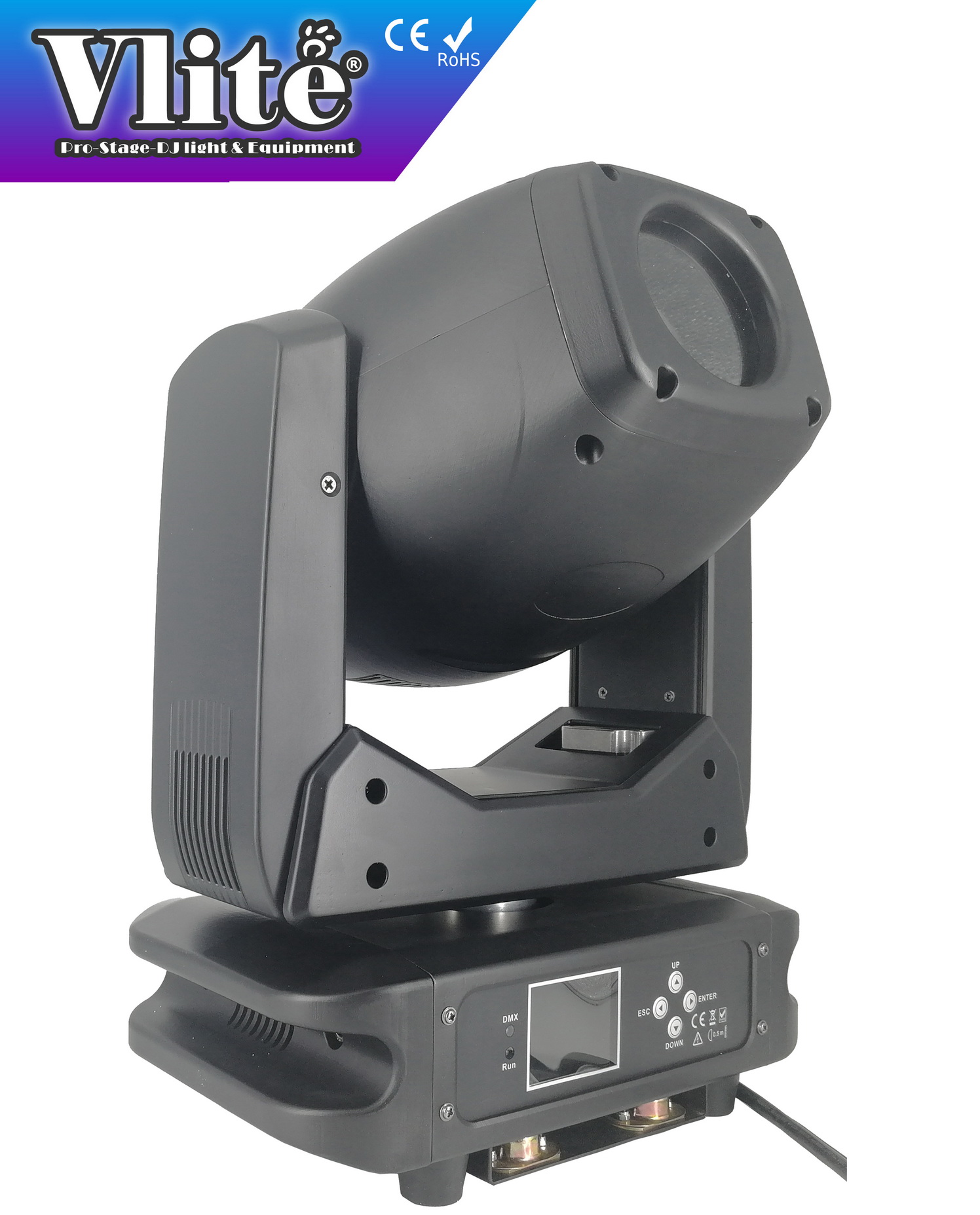

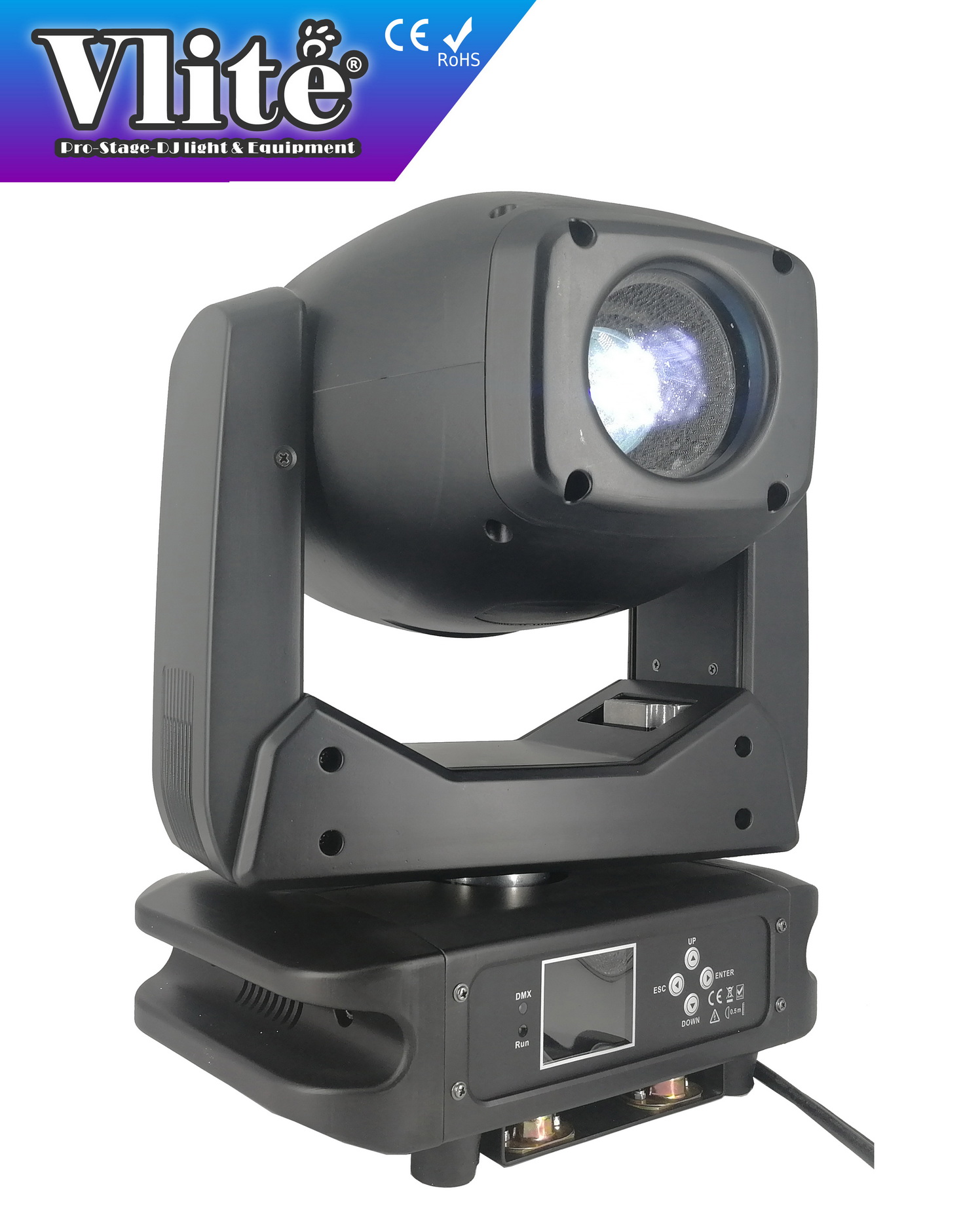

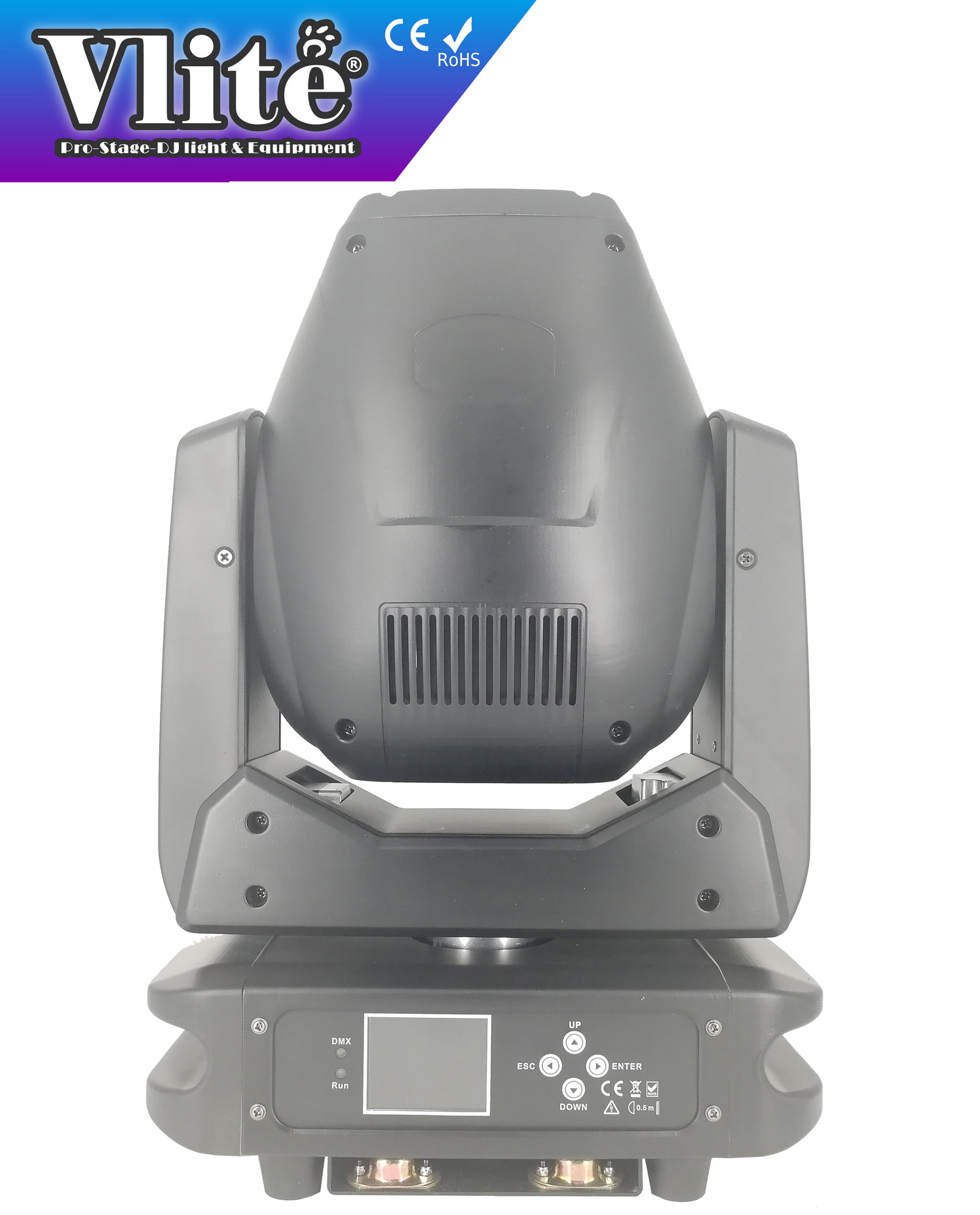

LED 230W ZOOM SPOT Moving Head
Parameter Introduction
Voltage and Power Consumption
* Voltage: AC110-240V, 50-60HZ
* Light Source: 1PC X 230W white LED
* Power consumption: 260W
Features
* Lens optical system mechanical focus and Beam Zoom angle 11°-25°
* High light output,
* Pan/Tilt: X axis 540°, Y axis: 270°, 16bit precision scanning, electric correction
* 1 Color Wheel: 7+blank
* 1 Static Gobo wheel: 7 + blank, wheel rotation and shake
* 1 Rotation Gobo wheel: 7 + blank, wheel rotation and shake
* Effect Wheel: 2 Effect prism, one Rotation 6 prism and another Rotation 5 prism effect
move, bi-directional rotation
* Macro PAN/TILT
* Efficient low noise fan cooling system
* Powercon IN/OUT
* 3-pin XLR connectors IN/OUT
Control Mode
* Control Mode: DMX-512, Master/Slaver, Sound-activated, Auto mode
* DMX-512 Mode: 6/18CH
Structure
* Color Display 2.4inch TFT
* Internal program available
* Protection Level: IP20
Dimension & Size
* Net Weight: 12.5 KG
* Gross Weight: 14.0 KG
* Product Size: 30.5cm(L) X 27.4cm(W) X 44.5cm(H)
* Packing Size: 48.5cm(L) X 35.5cm(W) X 39.0cm(H)
