DJ-2123 - Mini Gobo Beam Moving Head 100W with 8-facet prism effect

Mini Gobo Beam Moving Head 100W with 8-facet prism effect



Parameter Introduction



Voltage and Power Consumption


* Voltage: AC 100-240V, 50-60Hz

* Power Consumption: 100W

* Light Source: 1 PC x 80W White LED



Features


* Beam Angel: 4˚

* Color Wheel: 7Color + open, rainbow-flow effect

* Gobo Wheel: 7Gobo + open, gobo – flow effect, gobo shake

* Effect: Rotating 8-facet prism effect,

* Pan/Tilt: X axis 540˚, Y axis 180˚,  Pan / Tilt micro 16bit

* Focus: Manual Focus

* Strobe: 25 times/sec

* Dimming0~100% super smooth dimming



Control Mode


* Control Mode: Auto, Sound, DMX, Master/Slave

* DMX Channel: 12 CH

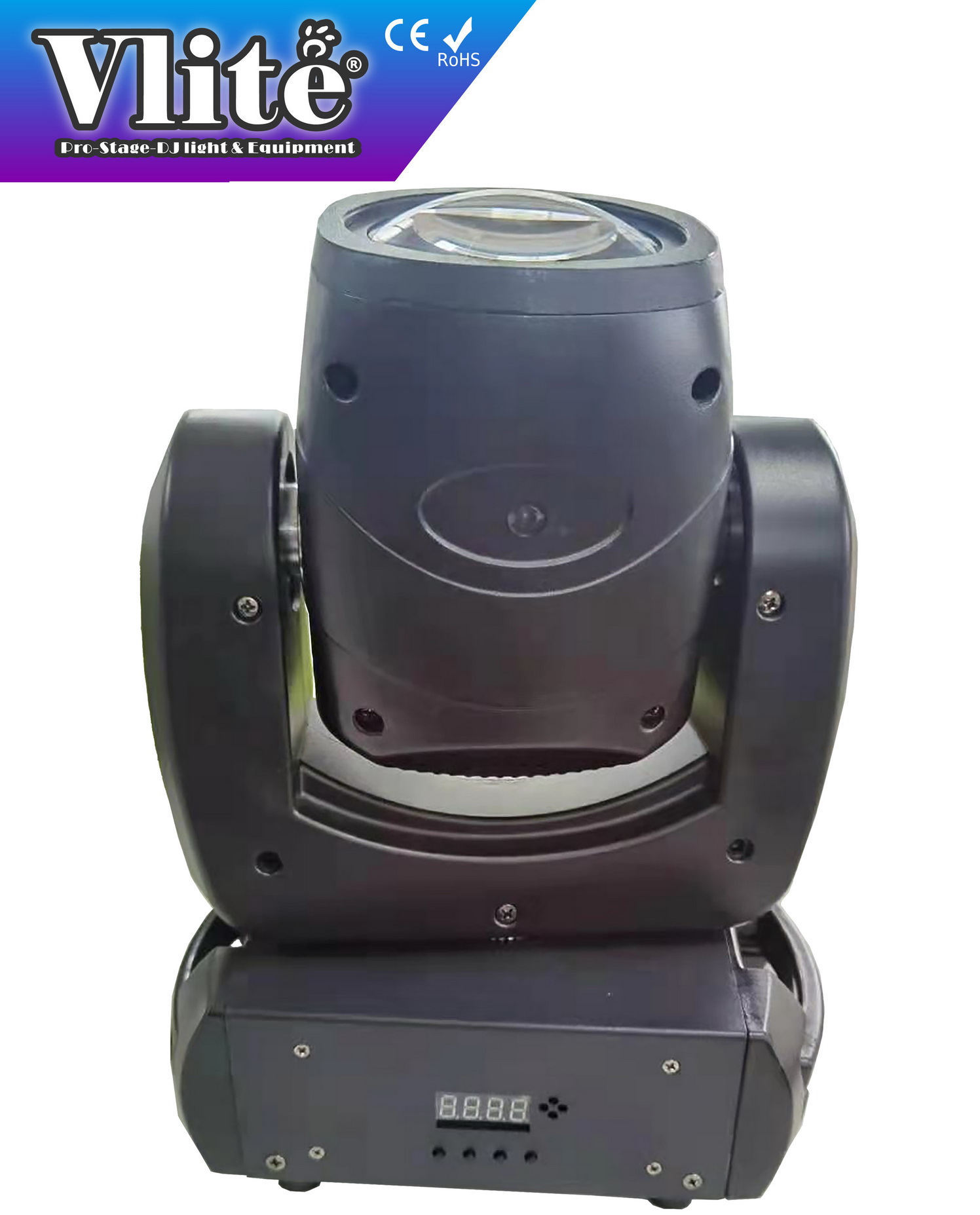

* Display: LED display



Structure


* Protection Level: IP20

* Appearance: High temperature resistant plastic

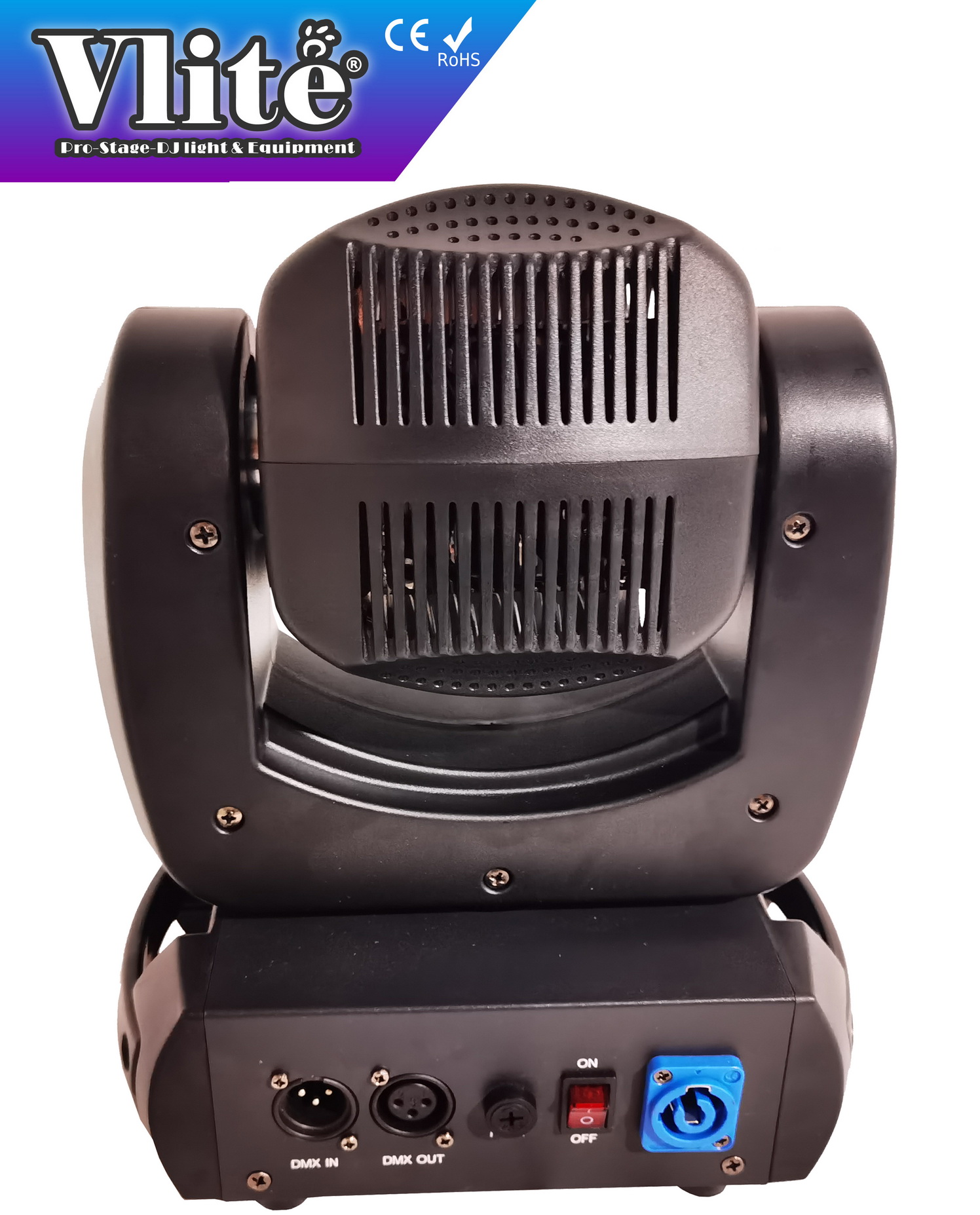

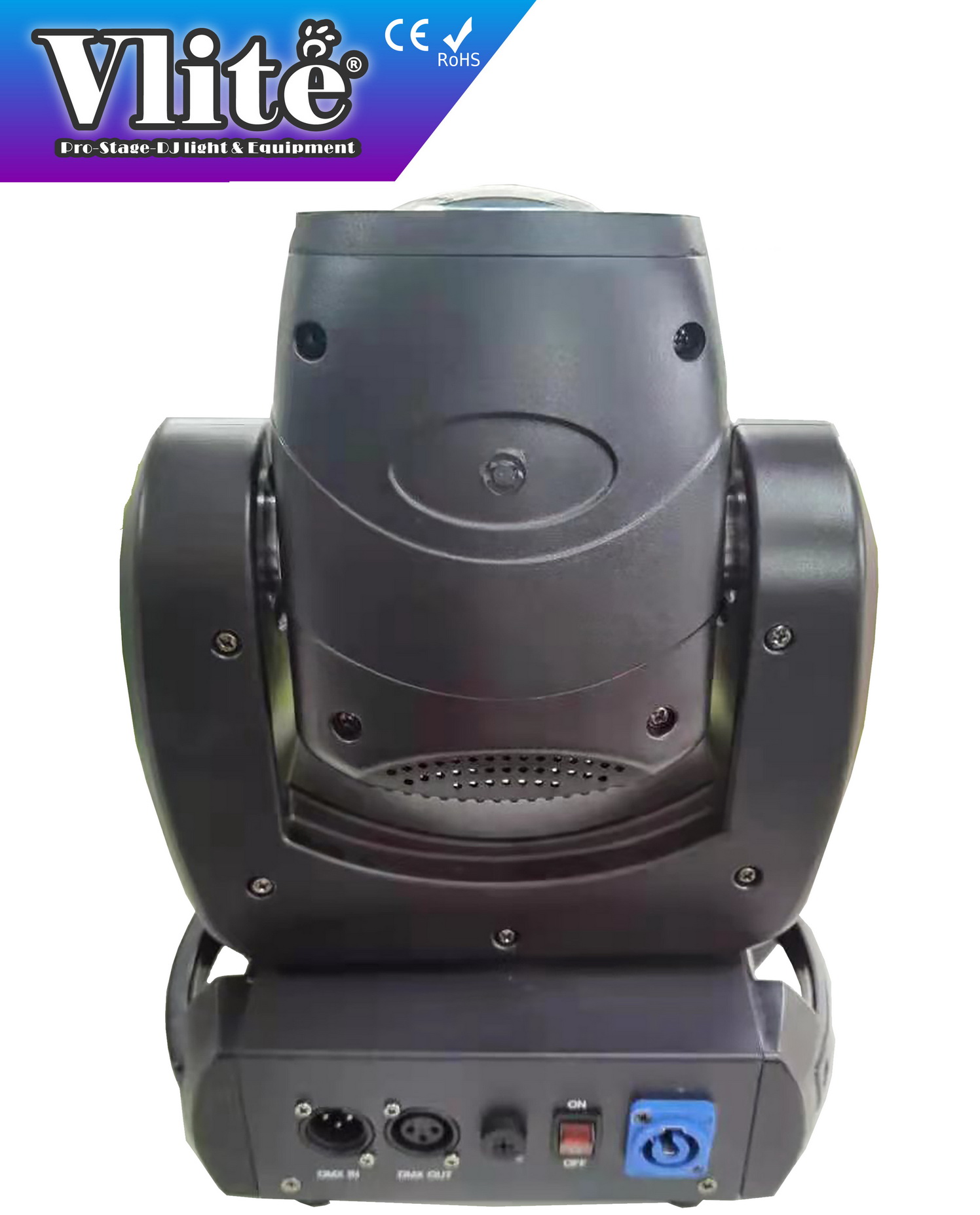

* Power Connecter: IEC Power In, DMX data in/out: XLR 3pin





Dimension & Size


* Product Size: 23.5cm(L) X 16.0cm(W) X 32.0cm(H)N.W.: 4.30 KG
